BATTERY & BATTERY CABLE

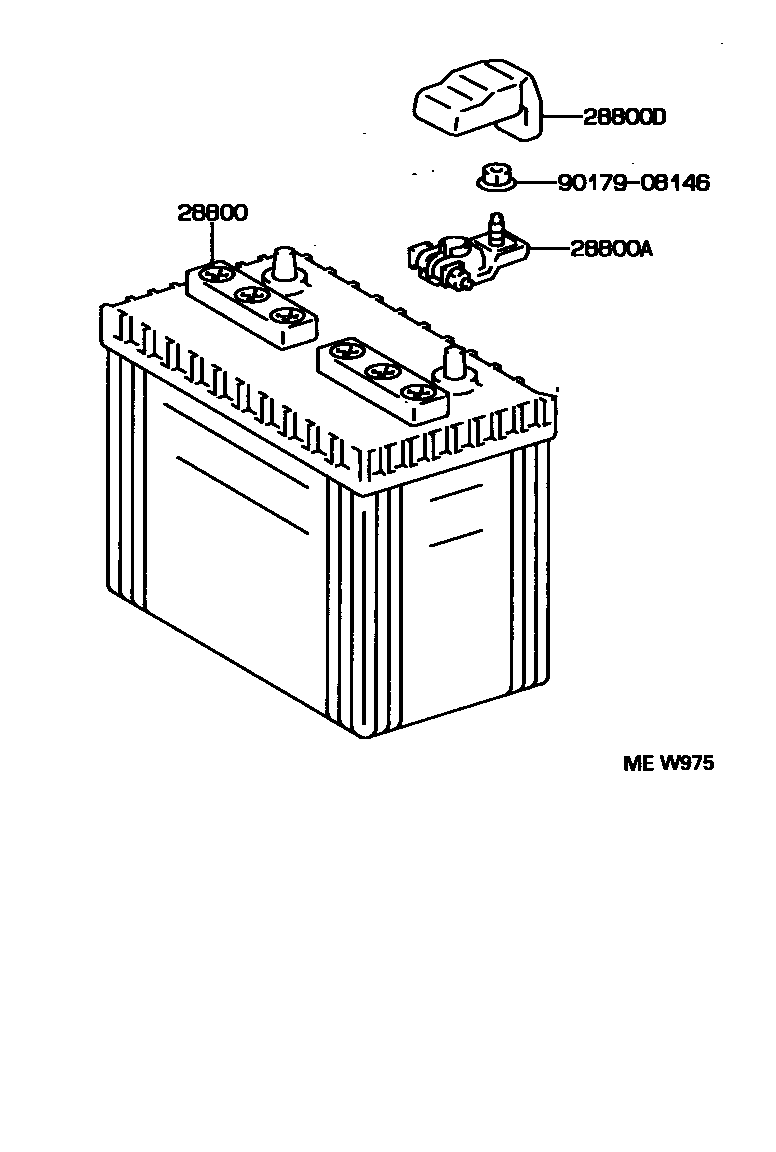

Parts diagram

28800BATTERY

main28800-64010i199309-199608

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i199309-199608

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-35020i199309-199608

9017908146

main90179-08146

4 parts on this diagram · 1 diagram in section
