INTERIOR LAMP

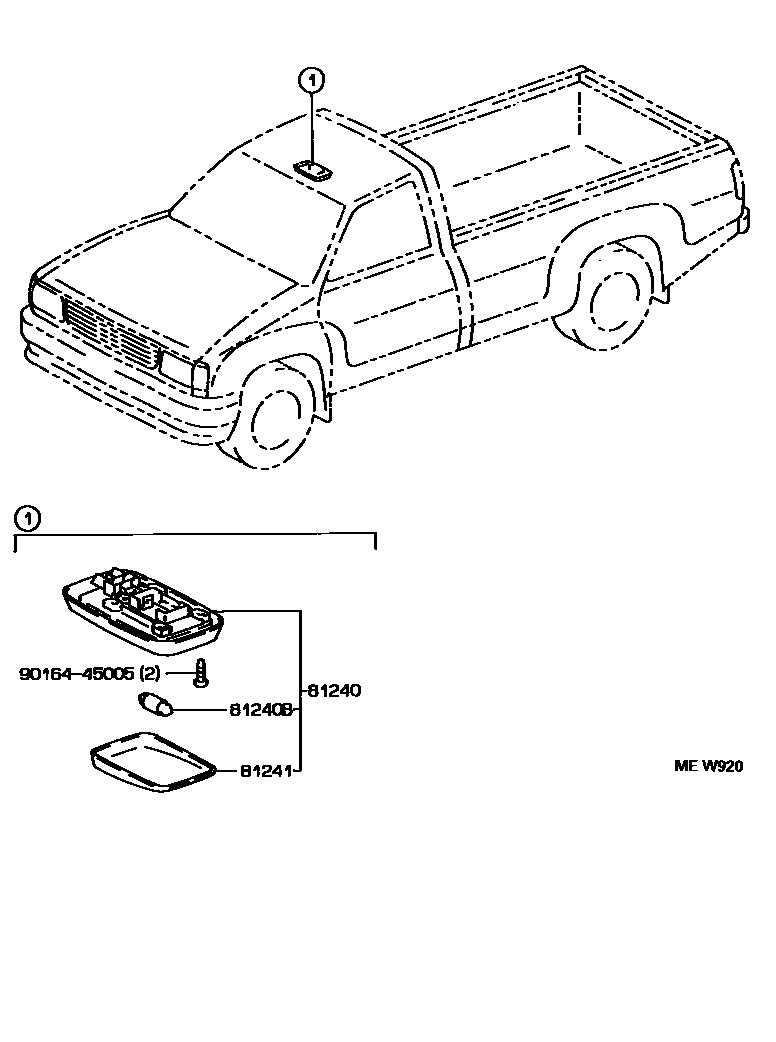

Parts diagram

81240LAMP ASSY, ROOM, NO.1

main81240-12050-B2i199309-199312

GRAY,TRIM1#

main81240-12050-E1i199309-199312

OAK,TRIM4#

main81240-12051-B2i199312-199408

GRAY,TRIM1#

main81240-12051-E1i199312-199408

OAK,TRIM4#

main81240-22070-B1i199408-199608

GRAY,TRIM1#

main81240-22070-E1i199408-199608

OAK,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199312-199408

12V 8W

main99132-12100i199309-199312

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-12020i199309-199408

main81241-20060i199408-199608

9016445005

main90164-45005

4 parts on this diagram · 1 diagram in section
