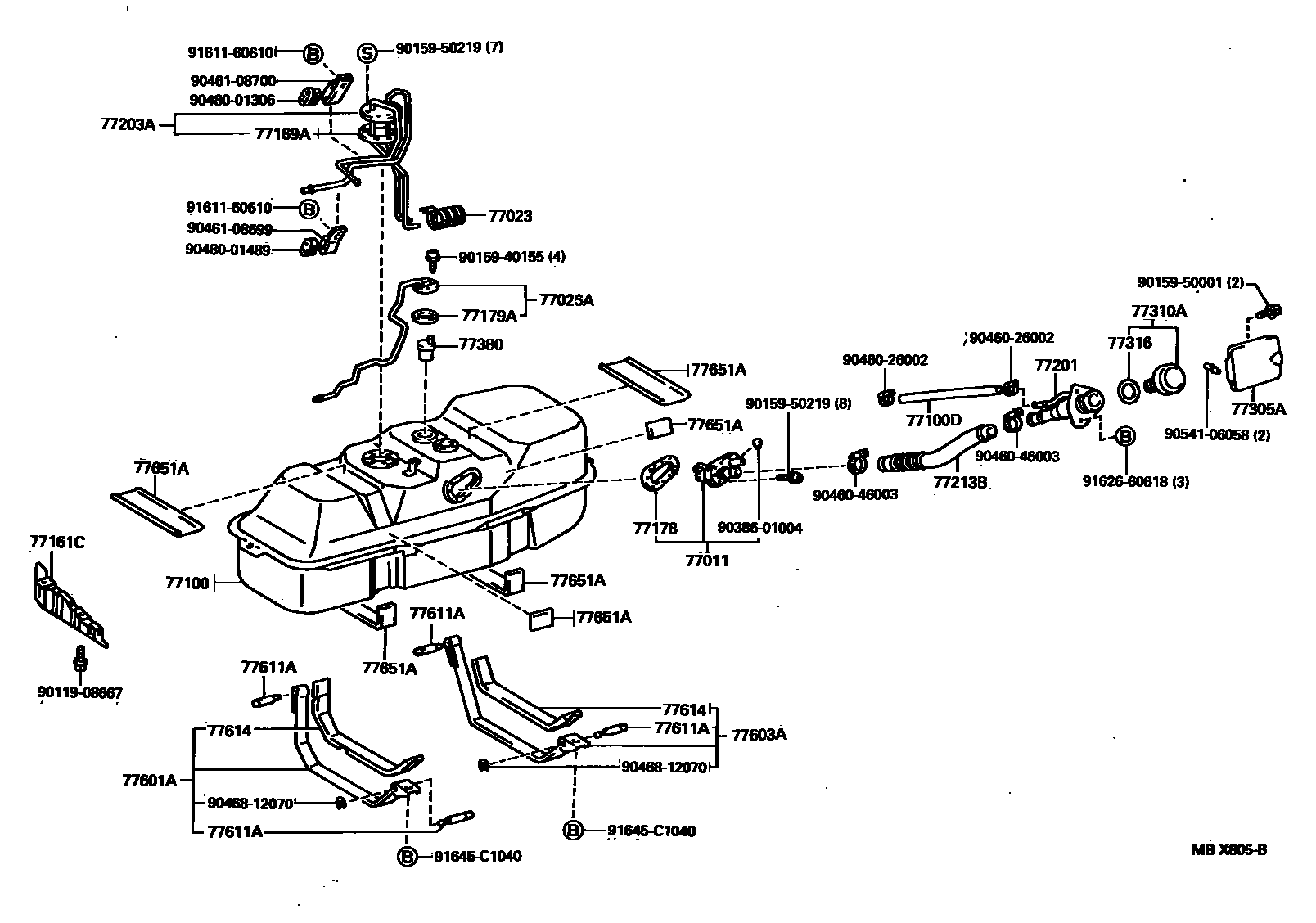

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
L=270
77161CPROTECTOR, FUEL TANK, LOWER
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77213BHOSE, FUEL TANK TO FILLER PIPE
L=280
77305ALID SUB-ASSY, FUEL FILLER OPENING
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77380VALVE ASSY, FUEL CUT OFF
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77611APIN (FOR FUEL TANK BAND)
77651ACUSHION, FUEL TANK, NO.1
70X240
70X45
45X425
45X490
9011908667
main90119-08667
9015940155
main90159-40155
9015950001
main90159-50001
9015950219
main90159-50219
9038601004
main90386-01004
9046026002
main90460-26002
9046046003
main90460-46003
9046108699
main90461-08699
9046108700
main90461-08700
9046812070
main90468-12070
9048001306
main90480-01306
9048001489
main90480-01489
9054106058
main90541-06058
9161160610
main91611-60610
9162660618
main91626-60618
91645C1040
main91645-C1040
37 parts on this diagram · 2 diagrams in section
