GR
›
841310
›

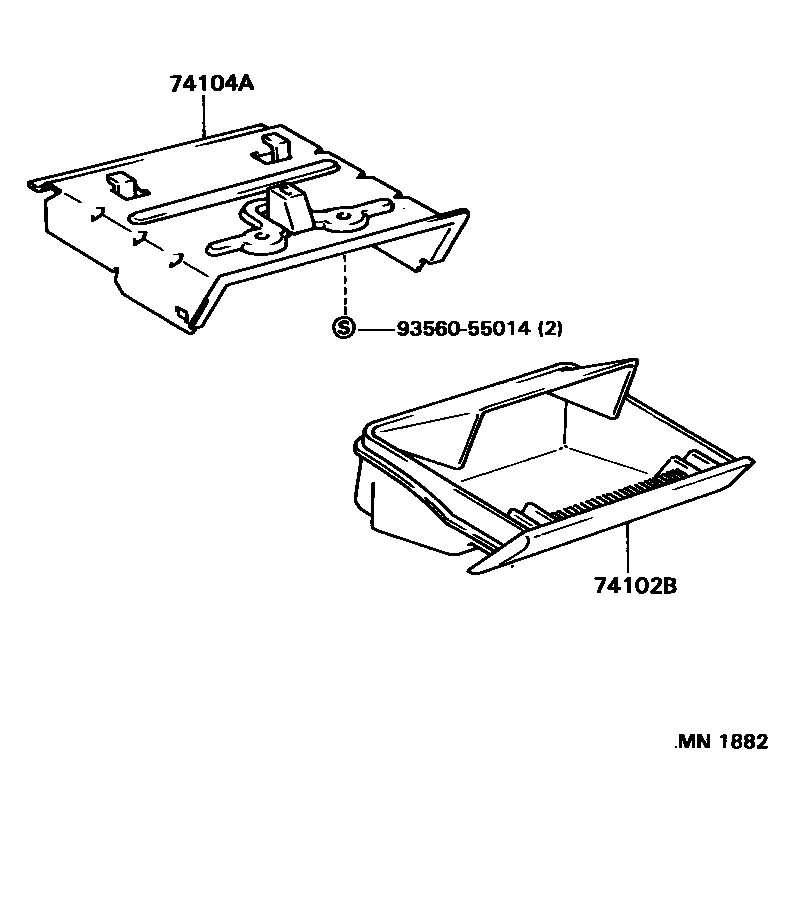

ASH RECEPTACLE
ASH RECEPTACLE
74102B
BOX SUB-ASSY, FRONT ASH RECEPTACLE
main
74102-34010-B0
i
RCK10
199309-199408
GRAY,TRIM1#
main
74102-34010-E0
i
RCK10
199309-199408
OAK,TRIM4#
main
74102-34011
i
RCK10
199408-199608
74104A
RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
main
74104-89107
i
RCK10
199309-199608
9356055014
main
93560-55014
3 parts on this diagram · 1 diagram in section
