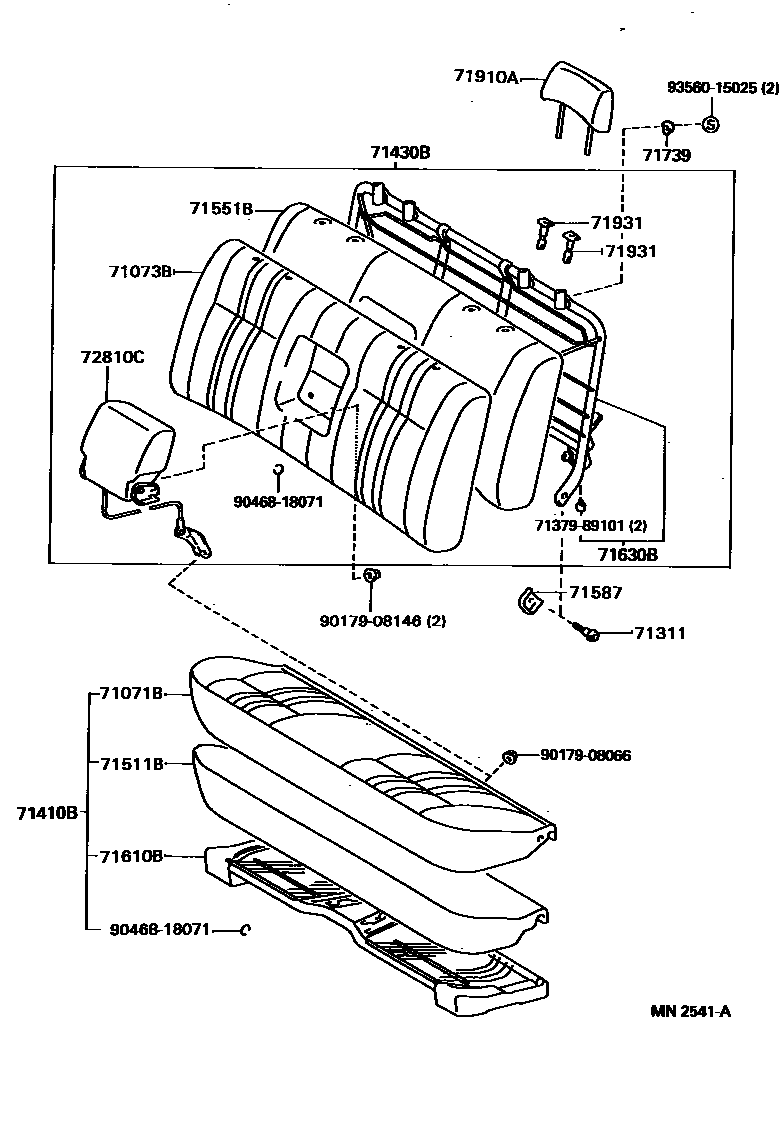

SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71071-34050-B0iRCK10..STD199309-199408

GRAY,TRIM1#

main71071-34050-E0iRCK10..STD199309-199408

OAK,TRIM4#

main71071-34090-B0iRCK10..STD199408-199608

GRAY,TRIM1#

main71071-34090-E0iRCK10..STD199408-199608

OAK,TRIM4#

71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)

main71073-34020-B0iRCK10..STD199309-199310

GRAY,TRIM1#

main71073-34020-E0iRCK10..STD199309-199310

OAK,TRIM4#

main71073-34040-B0iRCK10..STD199408-199608

GRAY,TRIM1#

main71073-34040-E0iRCK10..STD199408-199608

OAK,TRIM4#

main71073-34050-B0iRCK10..STD199310-199408

GRAY,TRIM1#

main71073-34050-E0iRCK10..STD199310-199408

OAK,TRIM4#

71311PIN, FRONT SEAT HINGE

main71311-34010×2iRCK10..STD199309-199608

71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)

main71410-34050-B0iRCK10..STD199309-199310

***,GRAY,TRIM1#

main71410-34050-E0iRCK10..STD199309-199310

***,OAK,TRIM4#

main71410-34090-B0iRCK10..STD199408-199608

***,GRAY,TRIM1#

main71410-34090-E0iRCK10..STD199408-199608

***,OAK,TRIM4#

main71410-34120-B0iRCK10..STD199310-199408

***,GRAY,TRIM1#

main71410-34120-E0iRCK10..STD199310-199408

***,OAK,TRIM4#

71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)

main71430-34020-B0iRCK10..STD199309-199310

***,GRAY,TRIM1#

main71430-34020-E0iRCK10..STD199309-199310

***,OAK,TRIM4#

main71430-34050-B0iRCK10..STD199310-199408

***,GRAY,TRIM1#

main71430-34050-E0iRCK10..STD199310-199408

***,OAK,TRIM4#

main71430-34080-B0iRCK10..STD199408-199608

***,GRAY,TRIM1#

main71430-34080-E0iRCK10..STD199408-199608

***,OAK,TRIM4#

71511BPAD, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71511-34020iRCK10..STD199309-199408

main71511-34030iRCK10..STD199408-199608

71551BPAD, FRONT SEATBACK(FOR BENCH TYPE)

main71551-34020iRCK10..STD199309-199608

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-89103×2iRCK10..STD199309-199608

71610BSPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71610-34010iRCK10..STD199309-199408

main71610-34020iRCK10..STD199408-199608

71630BSPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE)

main71630-34020iRCK10..STD199309-199608

71739CUSHION, SEAT SUPPORT

main71739-89113×2iRCK10..STD199309-199608

71910AHEADREST ASSY, FRONT SEAT

main71910-34010-B0×2iRCK10..STD199309-199408

GRAY,TRIM1#

main71910-34010-E0×2iRCK10..STD199309-199408

OAK,TRIM4#

main71910-34020-B1×2iRCK10..SR5199309-199408

GRAY,TRIM1#

main71910-34020-E1×2iRCK10..SR5199309-199408

OAK,TRIM4#

main71910-34030-B0iRCK10..STD199512-199608

GRAY,TRIM1#,DRIVER SIDE

main71910-34030-E0×2iRCK10..STD199408-199512

OAK,TRIM4#

main71910-34040-B0×2iRCK10..SR5199408-199512

GRAY,TRIM1#

main71910-34040-E0iRCK10..SR5199512-199608

OAK,TRIM4#,DRIVER SIDE

main71910-34050-B0iRCK10..STD199512-199608

GRAY,TRIM1#,PASSENGER SIDE

main71910-34050-E0iRCK10..STD199512-199608

OAK,TRIM4#,PASSENGER SIDE

main71910-34060-B0iRCK10..SR5199512-199608

GRAY,TRIM1#,PASSENER SIDE

main71910-34060-E0iRCK10..SR5199512-199608

OAK,TRIM4#,PASSENER SIDE

71931SUPPORT, FRONT SEAT HEADREST

main71930-12070-E8×2iRCK10199309-199608

W(LOCK),OAK,TRIM4#

main71930-12070-P2×2iRCK10199309-199608

W(LOCK),GRAY,TRIM1#

main71931-12040-E8×2iRCK10199309-199608

W/O(LOCK),OAK,TRIM4#

main71931-12040-P2×2iRCK10199309-199608

W/O(LOCK),GRAY,TRIM1#

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-34010-B1iRCK10..STD199309-199608

GRAY,TRIM1#

main72810-34010-E1iRCK10..STD199309-199608

OAK,TRIM4#

main72810-34020-B1iRCK10..SR5199309-199408

GRAY,TRIM1#

main72810-34020-E1iRCK10..SR5199309-199408

OAK,TRIM4#

main72810-34080-B0iRCK10..SR5199408-199608

GRAY,TRIM1#

main72810-34080-E0iRCK10..SR5199408-199608

OAK,TRIM4#

7137989101PIN, REAR SEATBACK CONTROL LEVER

main71379-89101

9017908066

main90179-08066

9017908146

main90179-08146

9046818071

main90468-18071

9356015025

main93560-15025

19 parts on this diagram · 3 diagrams in section
