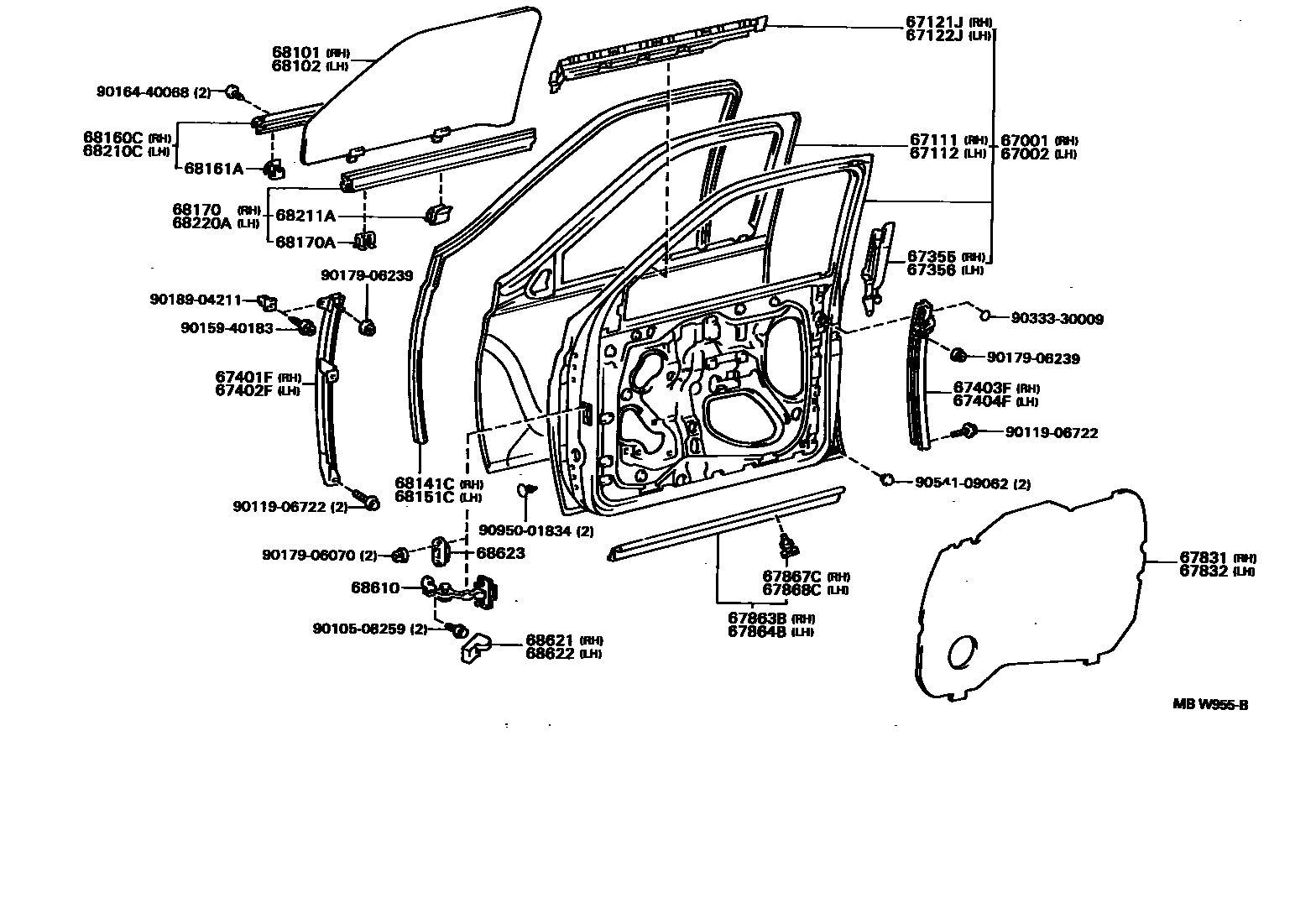

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67121JREINFORCEMENT, FRONT DOOR OUTSIDE PANEL, RH
67122JREINFORCEMENT, FRONT DOOR OUTSIDE PANEL, LH
67355REINFORCEMENT, FRONT DOOR REAR FRAME, RH
67356REINFORCEMENT, FRONT DOOR REAR FRAME, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.5,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68211ACLIP, DOOR BELT MOULDING
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68621SEAL, DOOR CHECK
68622COVER, FRONT DOOR CHECK, LH
68623COVER, DOOR CHECK, RH
9010508259
main90105-08259
9011906722
main90119-06722
9015940183
main90159-40183
9016440068
main90164-40068
9017906070
main90179-06070
9017906239
main90179-06239
9018904211
main90189-04211
9033330009
main90333-30009
9054109062
main90541-09062
9095001834
main90950-01834
43 parts on this diagram · 3 diagrams in section
