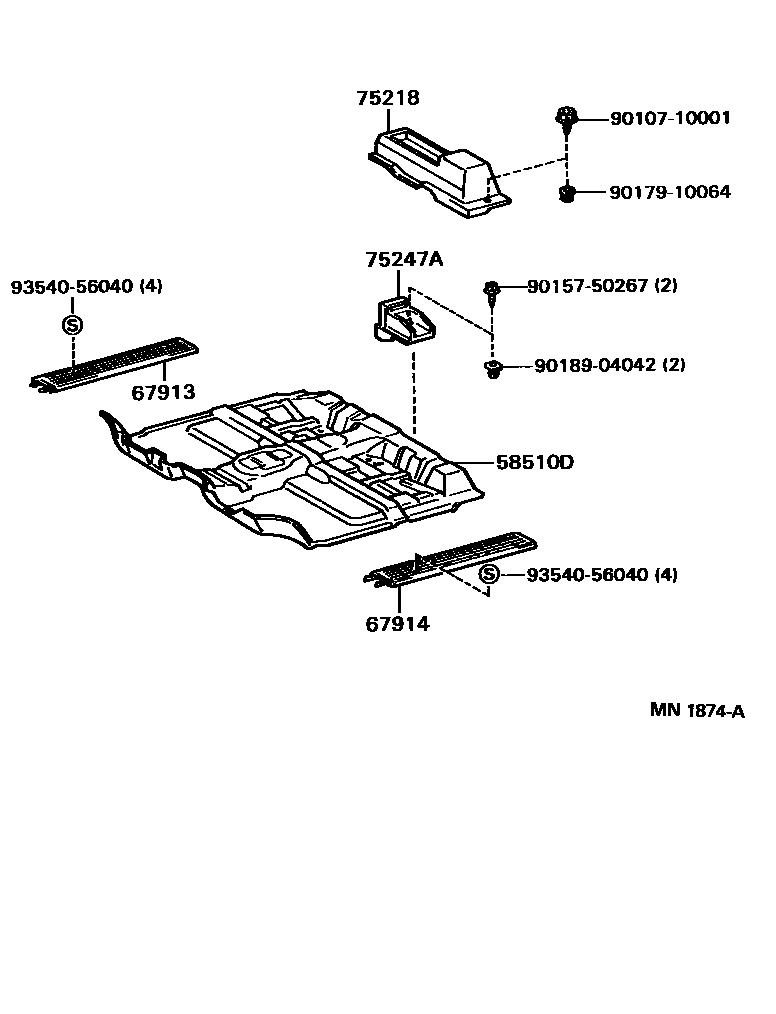

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-34200-B0iRCK10..SR5199309-199408

GRAY,TRIM1#

main58510-34200-E0iRCK10..SR5199309-199408

OAK,TRIM4#

main58510-34260-B0iRCK10..SR5199408-199608

GRAY,TRIM1#

main58510-34260-E0iRCK10..SR5199408-199608

OAK,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-34010-B0iRCK10199309-199608

GRAY,TRIM1#

main67913-34010-E0iRCK10199309-199608

OAK,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-34010-B0iRCK10199309-199608

GRAY,TRIM1#

main67914-34010-E0iRCK10199309-199608

OAK,TRIM4#

75218LID, TOOL BOX

main75218-34020-B0iRCK10..SR5199309-199408

GRAY,TRIM1#

main75218-34020-E0iRCK10..SR5199309-199408

OAK,TRIM4#

main75218-34030-C0iRCK10..SR5199408-199608

BLACK,TRIM1#,4#

75247ASUPPORT, TOOL BOX

main75247-34010-C0iRCK10..SR5199408-199608

BLACK,TRIM1#,4#

main75247-34020-B0iRCK10..SR5199309-199408

GRAY,TRIM1#

main75247-34020-E0iRCK10..SR5199309-199408

OAK,TRIM4#

9010710001

main90107-10001

9015750267

main90157-50267

9017910064

main90179-10064

9018904042

main90189-04042

9354056040

main93540-56040

10 parts on this diagram · 2 diagrams in section
