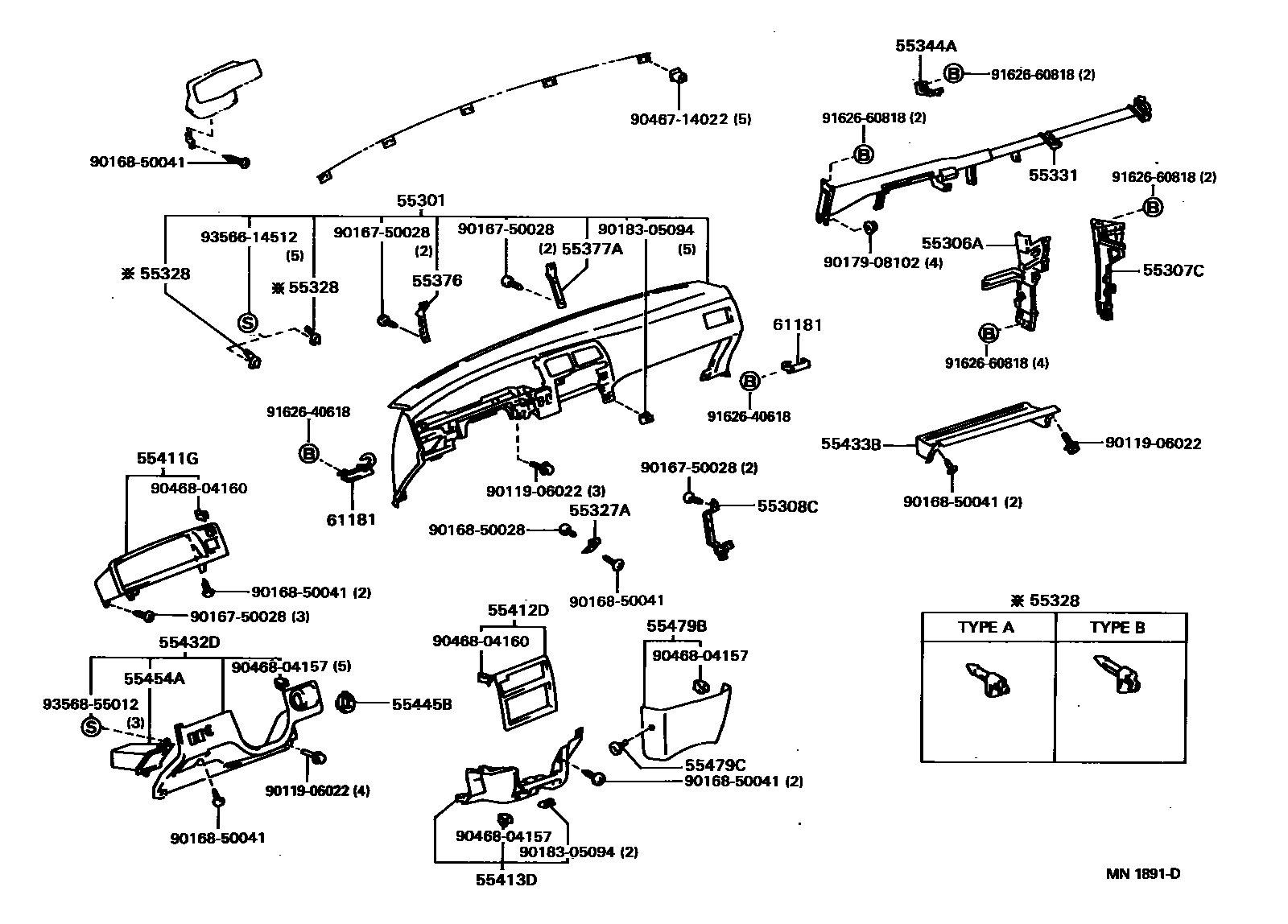

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-34010-B0iRCK10199309-199608

GRAY,TRIM1#

main55301-34010-E0iRCK10199309-199608

OAK,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-34020iRCK10199309-199408

main55306-34030iRCK10199408-199608

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-34010iRCK10199309-199408

main55307-34021iRCK10199408-199608

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-34010iRCK10199309-199608

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-34010iRCK10199309-199608

55328PIN, INSTRUMENT PANEL, NO.1

main55328-34010×4iRCK10199309-199608

TYPE A

main55329-14030iRCK10199309-199608

TYPE B

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-34060iRCK10199309-199608

55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3

main55344-34010iRCK10199309-199608

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-34010iRCK10199309-199608

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-34010iRCK10199309-199608

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-34010iRCK10..SR5; RCK10..STD199309-199608

W(CLOCK)

main55411-34020iRCK10..STD199309-199608

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-34010iRCK10199309-199608

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-34010-B0iRCK10199309-199608

GRAY,TRIM1#

main55413-34010-E0iRCK10199309-199608

OAK,TRIM4#

55432DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

main55432-34010-B0iRCK10199309-199608

GRAY,TRIM1#

main55432-34010-E0iRCK10199309-199608

OAK,TRIM4#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-34010-B0iRCK10199508-199608

GRAY,TRIM1#

main55433-34010-E0iRCK10199309-199410

OAK,TRIM4#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-34030iRCK10199309-199608

55454ACASE, INSTRUMENT ACCESSORY

main55454-34010-B0iRCK10199309-199608

GRAY,TRIM1#

main55454-34010-E0iRCK10199309-199608

OAK,TRIM4#

55479BCOVER, INSTRUMENT, LOWER CENTER

main55479-34010-B0iRCK10199309-199408

GRAY,TRIM1#

main55479-34010-E0iRCK10199309-199408

OAK,TRIM4#

main55479-34020-B0iRCK10199408-199608

GRAY,TRIM1#

main55479-34020-E0iRCK10199408-199608

OAK,TRIM4#

55479CCLIP(FOR INSTRUMENT LOWER COVER)

main90467-07041-B2×2iRCK10199309-199608

MEDIUM GRAY,TRIM1#

main90467-07041-E0×2iRCK10199309-199608

OAK,TRIM4#

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-34010iRCK10199309-199608

RH

main61182-34010iRCK10199309-199608

LH

9011906022

main90119-06022

9016750028

main90167-50028

9016850028

main90168-50028

9016850041

main90168-50041

9017908102

main90179-08102

9018305094

main90183-05094

9046714022

main90467-14022

9046804157

main90468-04157

9046804160

main90468-04160

9162640618

main91626-40618

9162660818

main91626-60818

9356614512

main93566-14512

9356855012

main93568-55012

33 parts on this diagram · 2 diagrams in section
