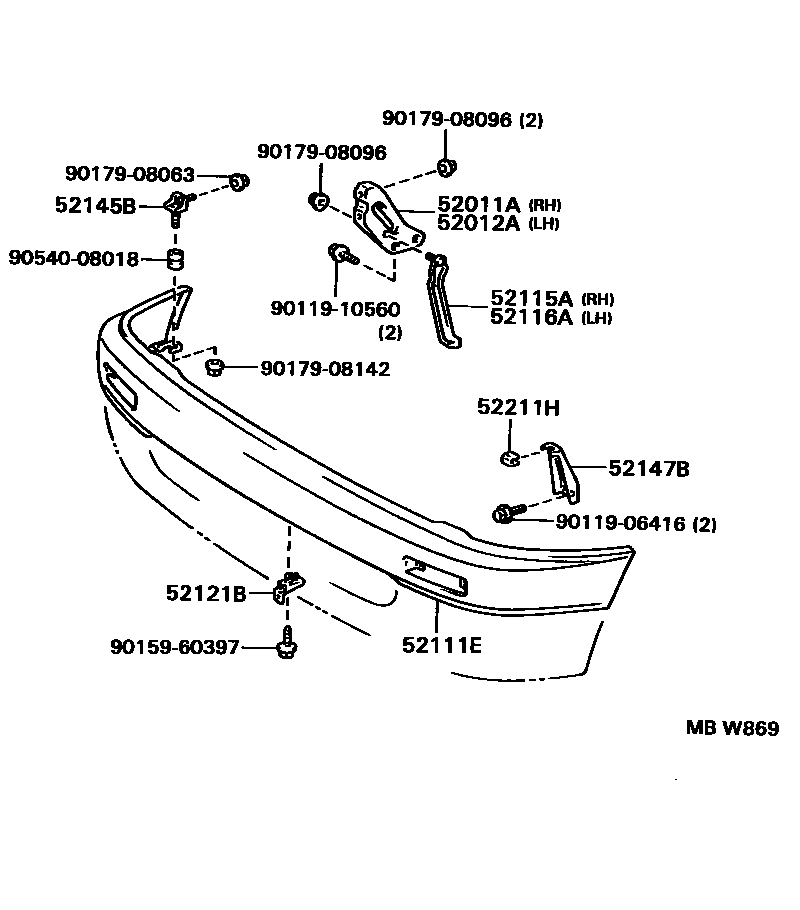

FRONT BUMPER & BUMPER STAY

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52141-0W010iRCK10199309-199608

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52142-0W010iRCK10199309-199608

52111EBAR, FRONT BUMPER

main52101-34010iRCK10..STD199309-199608

main52101-34020iRCK10..SR5; RCK10..STD199309-199608

METAL PLATING PACKAGE

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-34010iRCK10199309-199411

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-34010iRCK10199309-199411

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-34010×2iRCK10199309-199608

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-89102×2iRCK10199309-199608

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-34010×2iRCK10199309-199608

52211HCUSHION(FOR FRONT BUMPER ARM)

main52211-34010×2iRCK10199309-199608

9011906416

main90119-06416

9011910560

main90119-10560

9015960397

main90159-60397

9017908063

main90179-08063

9017908096

main90179-08096

9017908142

main90179-08142

9054008018

main90540-08018

16 parts on this diagram · 1 diagram in section
