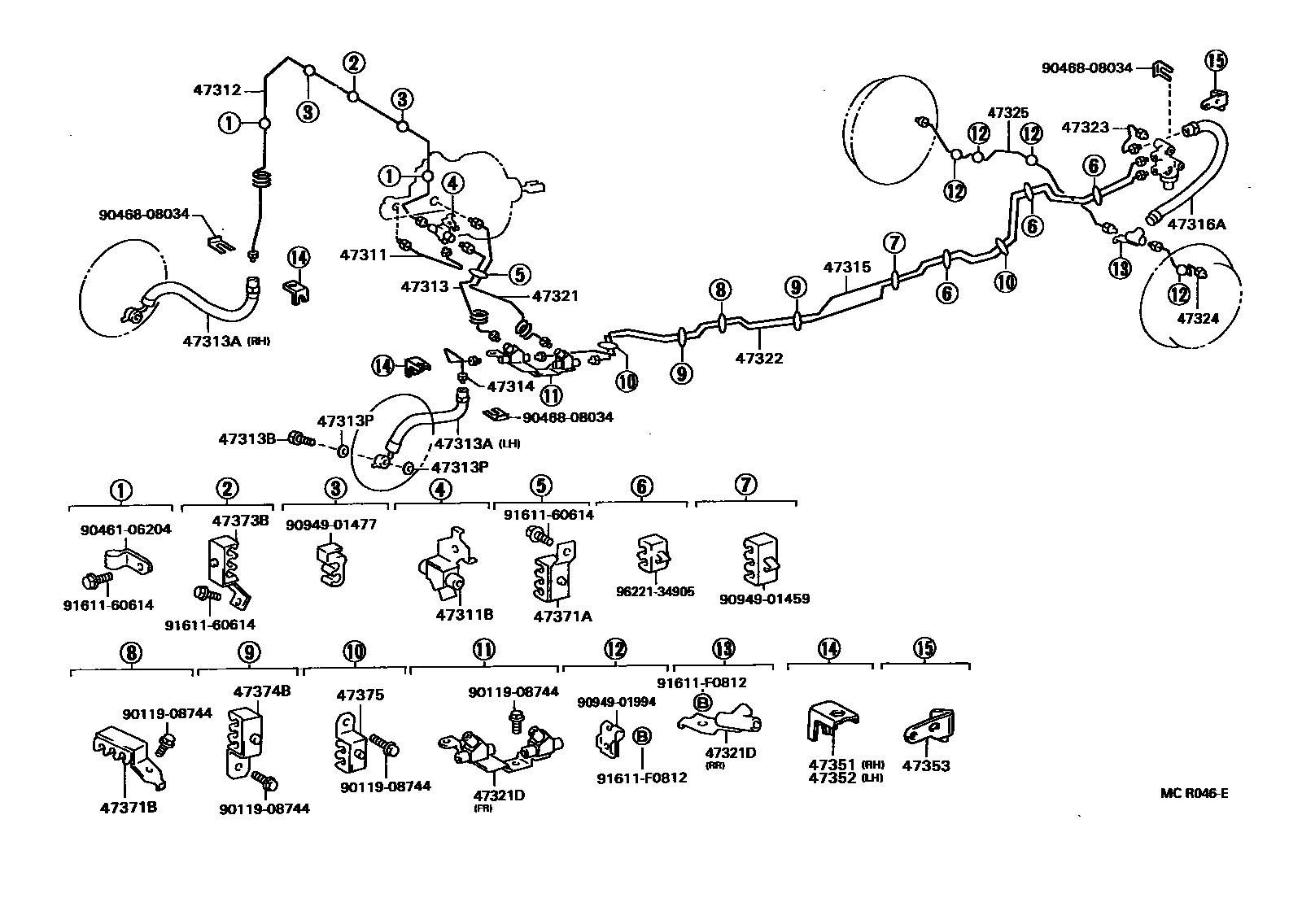

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-34010iRCK10199309-199608

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10276iRCK10199309-199608

47312TUBE, FRONT BRAKE, NO.2

main47312-34030iRCK10199309-199608

47313TUBE, FRONT BRAKE, NO.3

main47313-34030iRCK10199309-199408

main47313-34031iRCK10199408-199608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02698iRCK10199309-199608

RH

main90947-02717iRCK10199309-199608

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iRCK10199309-199608

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iRCK10199309-199608

47314TUBE, FRONT BRAKE, NO.4

main47314-34020iRCK10199309-199608

47315TUBE, FRONT BRAKE, NO.5

main47315-34030iRCK10199309-199608

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-34606iRCK10199309-199408

main96940-34706iRCK10199408-199608

47321TUBE, REAR BRAKE, NO.1

main47321-34030iRCK10199309-199408

main47321-34031iRCK10199408-199608

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-13006iRCK10199309-199608

FR

main90904-13007iRCK10199309-199608

RR

47322TUBE, REAR BRAKE, NO.2

main47322-34050iRCK10199309-199608

47323TUBE, REAR BRAKE, NO.3

main47323-34030iRCK10199309-199608

47324TUBE, REAR BRAKE, NO.4

main47324-34040iRCK10199309-199408

main47324-34070iRCK10199408-199608

47325TUBE, REAR BRAKE, NO.5

main47325-34040iRCK10199309-199408

main47325-34070iRCK10199408-199608

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-34010iRCK10199309-199608

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-34020iRCK10199309-199608

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-34030iRCK10199309-199608

47371ACLAMP, BRAKE TUBE, NO.1

main47372-34010iRCK10199309-199608

47371BCLAMP, BRAKE TUBE, NO.6

main47371-34020iRCK10199309-199608

47373BCLAMP, BRAKE TUBE, NO.3

main47373-34010iRCK10199309-199608

47374BCLAMP, BRAKE TUBE, NO.4

main47371-35080iRCK10199309-199608

47375CLAMP, BRAKE TUBE, NO.5

main47372-35030×2iRCK10199309-199608

9011908744

main90119-08744

9046106204

main90461-06204

9046808034

main90468-08034

9094901459

main90949-01459

9094901477

main90949-01477

9094901994

main90949-01994

9161160614

main91611-60614

91611F0812

main91611-F0812

9622134905

main96221-34905

33 parts on this diagram · 2 diagrams in section
