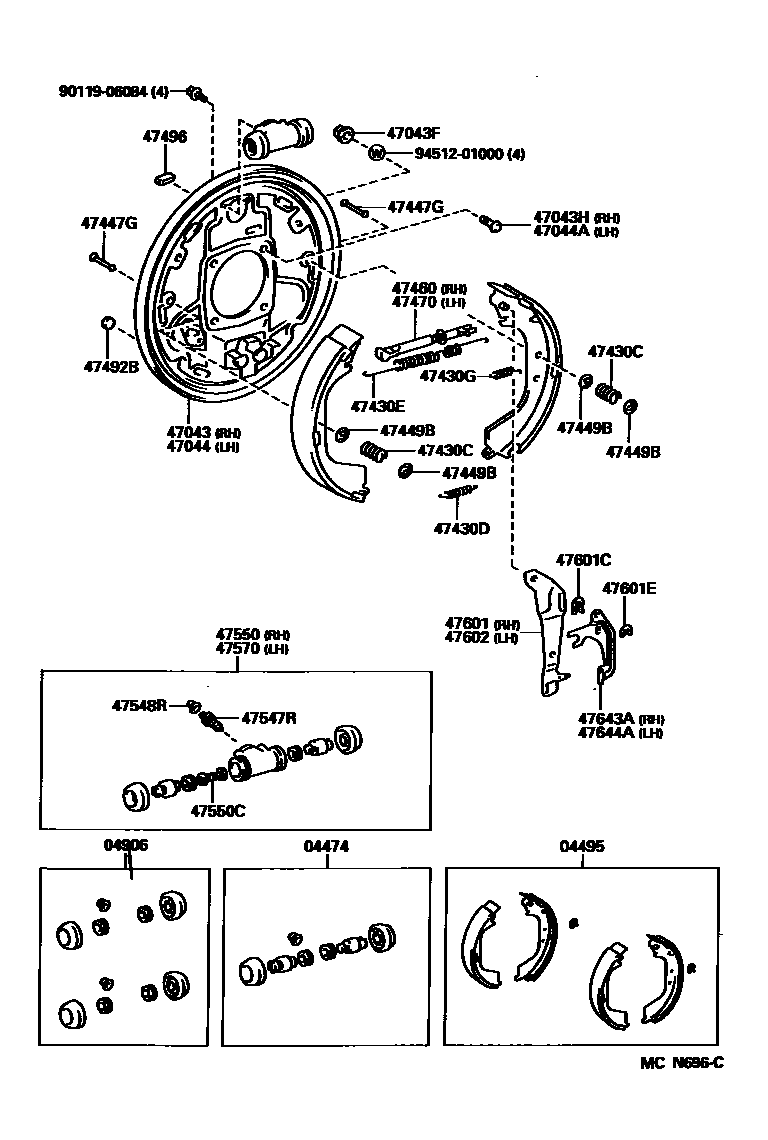

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-35100×2iRCK10199511-199608

main04474-60010×2iRCK10199309-199511

04495SHOE KIT, REAR BRAKE

main04495-34020iRCK10199309-199608

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35130iRCK10199309-199608

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-34010iRCK10199309-199608

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067×8iRCK10199309-199608

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10002×4iRCK10199309-199608

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-34010iRCK10199309-199608

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10002×4iRCK10199309-199608

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iRCK10199309-199608

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031×2iRCK10199309-199608

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iRCK10199309-199608

LH

main90506-26014iRCK10199309-199608

RH

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031×2iRCK10199309-199608

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010×4iRCK10199309-199608

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iRCK10199309-199608

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47062-60011iRCK10199309-199608

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-60011iRCK10199309-199608

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iRCK10199309-199608

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iRCK10199309-199608

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020×2iRCK10199309-199608

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iRCK10199309-199608

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-60120iRCK10199309-199608

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-60010×2iRCK10199309-199511

main90029-60009×2iRCK10199511-199608

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-60120iRCK10199309-199608

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47612-35040iRCK10199309-199608

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iRCK10199309-199608

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500×2iRCK10199309-199608

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47611-35040iRCK10199309-199608

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47644-60010iRCK10199309-199608

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iRCK10199309-199608

9011906084

main90119-06084

9451201000

main94512-01000

31 parts on this diagram · 1 diagram in section
