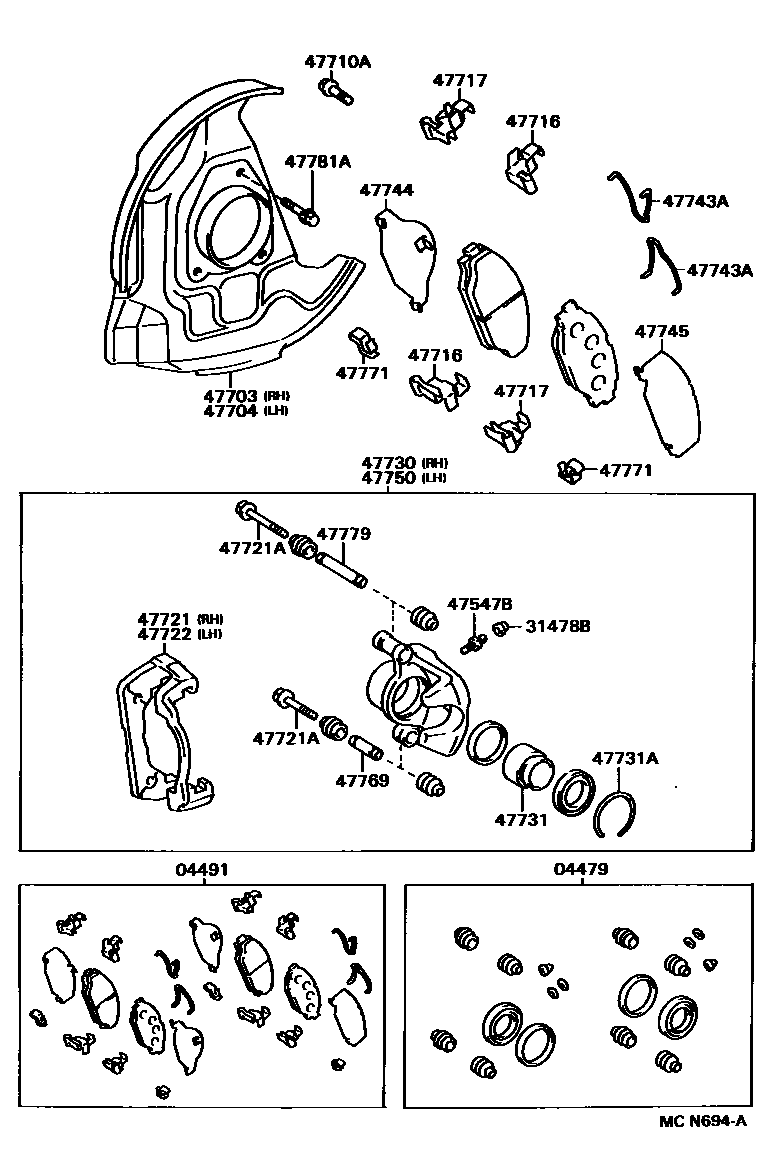

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26050iRCK10199309-199608

04491PAD KIT, DISC BRAKE, FRONT

main04491-34020iRCK10199309-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRCK10199309-199608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iRCK10199309-199608

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-34010iRCK10199309-199608

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-34010iRCK10199309-199608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iRCK10199309-199608

*12-1.25PX31-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040iRCK10199309-199608

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010iRCK10199309-199608

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-34020iRCK10199309-199608

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iRCK10199309-199608

*10-1.25PX65.5-30

main90119-10249iRCK10199309-199608

*10-1.25PX95.5-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-34020iRCK10199309-199608

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-34020iRCK10199309-199608

47731PISTON, FRONT DISC BRAKE

main47731-25010iRCK10199309-199608

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001iRCK10199309-199608

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020iRCK10199309-199608

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-35040iRCK10199309-199608

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35040iRCK10199309-199608

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-34020iRCK10199309-199608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iRCK10199309-199608

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26040iRCK10199309-199608

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iRCK10199309-199608

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08A21iRCK10199309-199608

23 parts on this diagram · 2 diagrams in section
