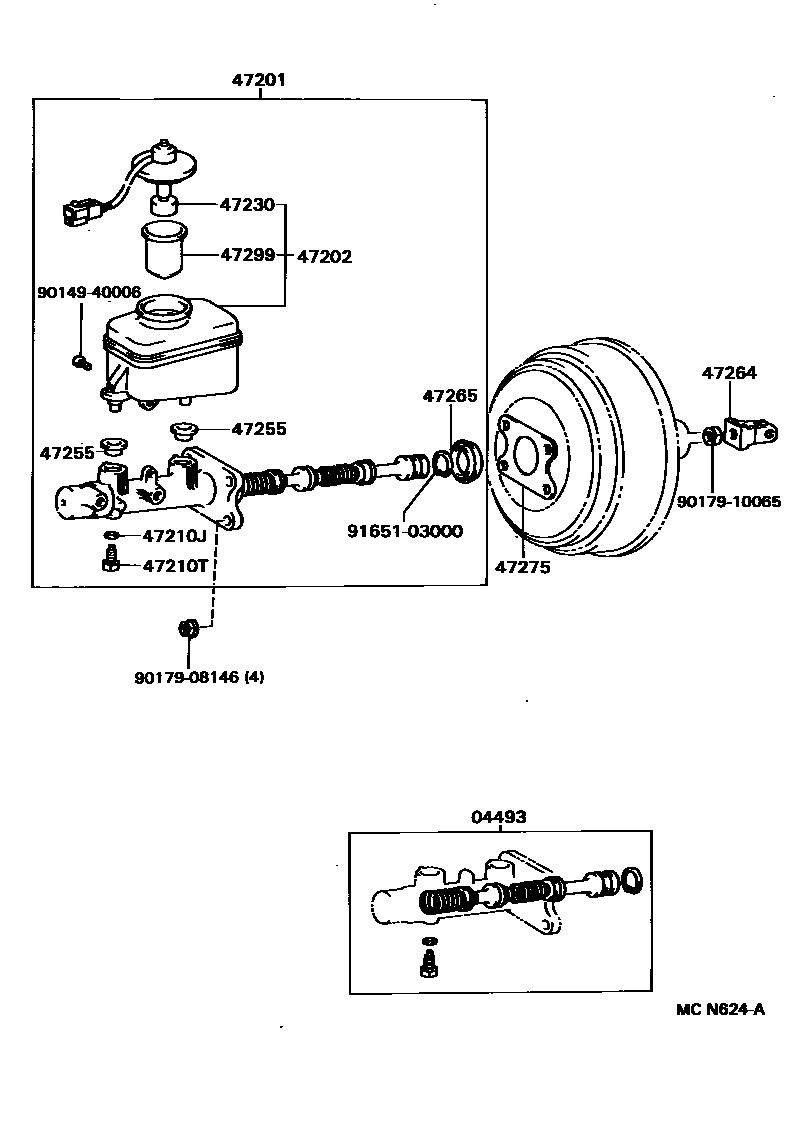

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-60240iRCK10199309-199608

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-34030iRCK10199309-199408

main47201-34031iRCK10199408-199608

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-34010iRCK10199309-199408

main47202-34020iRCK10199408-199511

main47220-35010iRCK10199511-199608

sub47220-60080

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iRCK10199309-199608

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iRCK10199309-199608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iRCK10199408-199608

main47230-24010iRCK10199309-199408

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iRCK10199309-199608

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iRCK10199309-199608

47265BOOT, MASTER CYLINDER

main47265-22030iRCK10199309-199504

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iRCK10199309-199608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iRCK10199309-199608

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

9165103000

main91651-03000

15 parts on this diagram · 1 diagram in section
