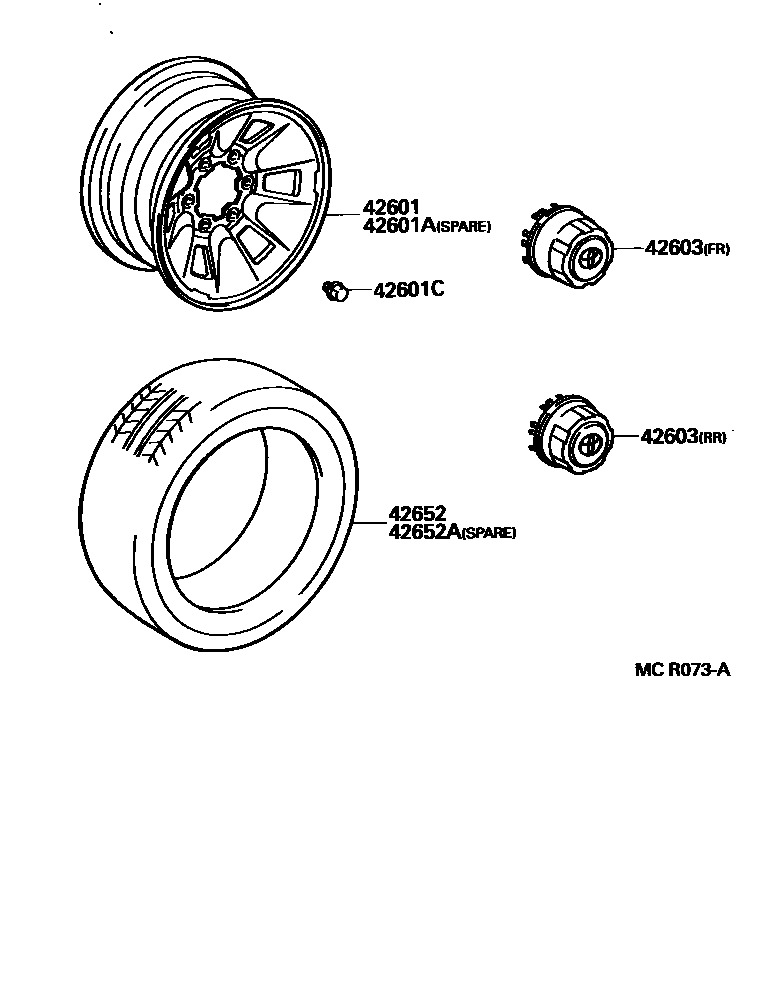

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42601-60430-03×4iRCK10199309-199608

16X6J,OFFSET 30, #,SILVER M.

42601AWHEEL, DISC (FOR SPARE)

main42601-60430-03iRCK10199309-199608

16X6J,OFFSET 30, #,SILVER M.

42601CNUT, HUB (FOR AXLE)

main90942-01075×24iRCK10199309-199608

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35510×2iRCK10199309-199608

*STE,FR

main42603-35520×2iRCK10199309-199608

*STE,RR

42652TIRE

main42605-35291×4iRCK10199309-199608

205R16C-6PR

42652ATIRE (FOR SPARE)

main42605-35291iRCK10199309-199608

205R16C-6PR

6 parts on this diagram · 2 diagrams in section
