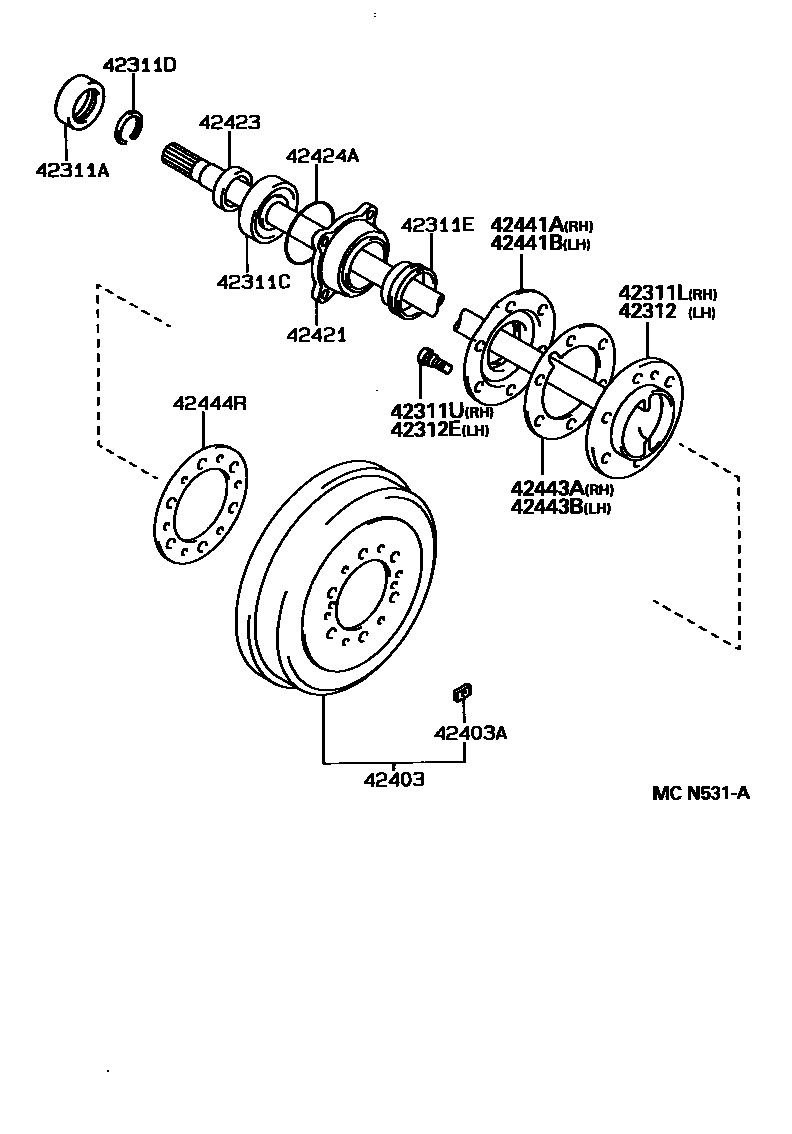

REAR AXLE SHAFT & HUB

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001×2iRCK10199309-199608

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020×2iRCK10199309-199608

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2iRCK10199309-199608

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001×2iRCK10199309-199608

42311LSHAFT, REAR AXLE, RH

main42311-34010iRCK10199309-199608

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02052×6iRCK10199309-199608

42312SHAFT, REAR AXLE, LH

main42311-34010iRCK10199309-199608

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02052×6iRCK10199309-199608

42403DRUM SUB-ASSY, REAR BRAKE

main42431-34010×2iRCK10199309-199608

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iRCK10199309-199608

10G

main90937-01118iRCK10199309-199608

20G

main90937-01119iRCK10199309-199608

30G

main90937-01450iRCK10199309-199608

40G

main90937-01451iRCK10199309-199608

50G

42421CASE, REAR AXLE BEARING

main42421-35040×2iRCK10199309-199608

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×2iRCK10199309-199608

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077×2iRCK10199309-199608

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-35020iRCK10199309-199608

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-35020iRCK10199309-199608

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-55020iRCK10199309-199608

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-55020iRCK10199309-199608

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35050×2iRCK10199309-199608

18 parts on this diagram · 1 diagram in section
