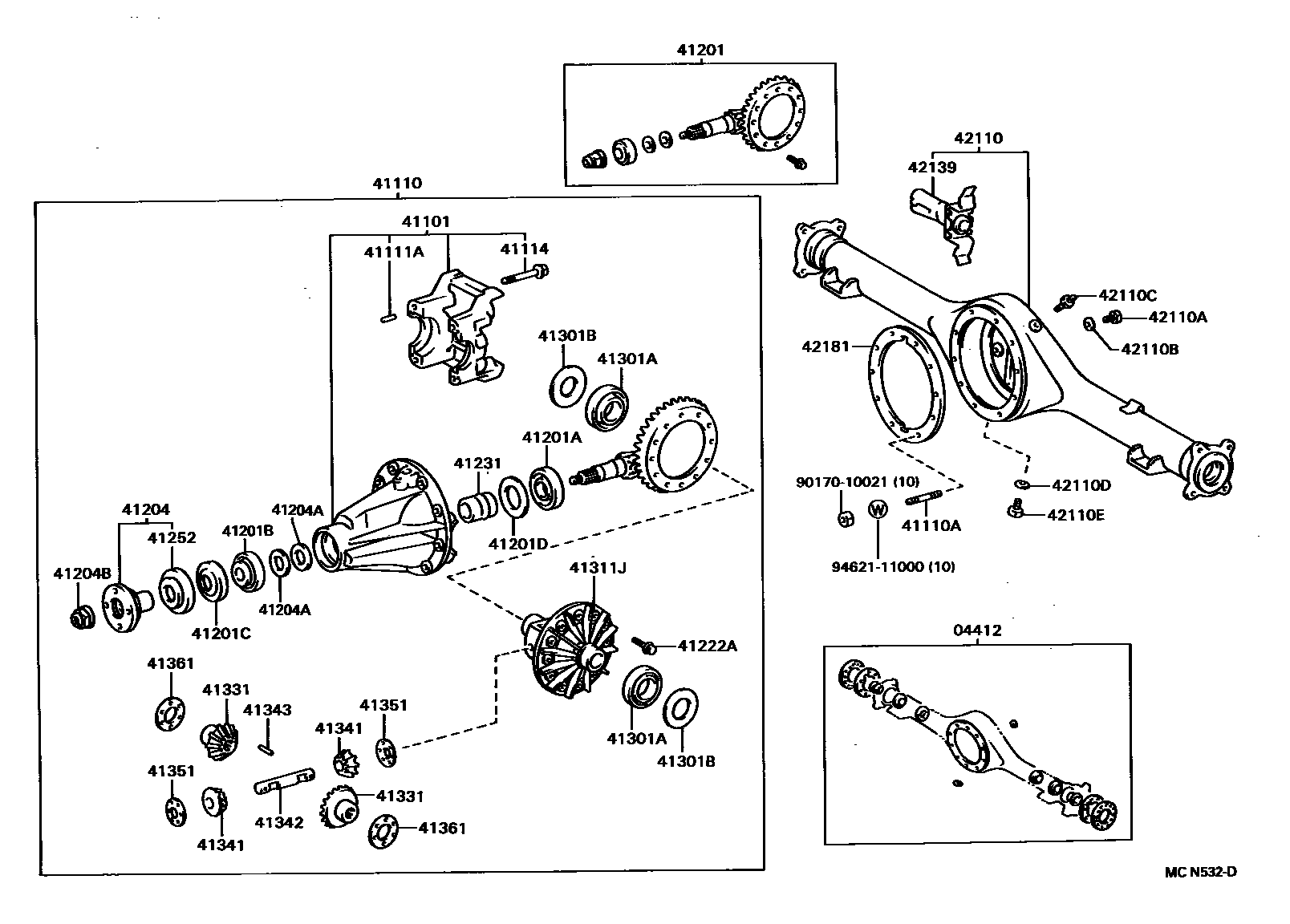

REAR AXLE HOUSING & DIFFERENTIAL
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=47:11=4.273
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
S=13 & 15,L=44
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=47:11=4.273
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.87,MARK 87
T=1.88,MARK 88
T=1.89,MARK 89
T=1.90,MARK 90
T=1.91,MARK 91
T=1.92,MARK 92
T=1.93,MARK 93
T=1.94,MARK 94
T=1.95,MARK 95
T=1.96,MARK 96
T=1.97,MARK 97
T=1.98,MARK 98
T=1.99,MARK 99
T=2.00,MARK 00
T=2.01,MARK 01
T=2.02,MARK 02
T=2.03,MARK 03
T=2.04,MARK 04
T=2.05,MARK 05
T=2.06,MARK 06
T=2.07,MARK 07
T=2.08,MARK 08
T=2.09,MARK 09
T=2.10,MARK 10
T=2.11,MARK 11
T=2.12,MARK 12
T=2.13,MARK 13
T=2.14,MARK 14
T=2.15,MARK 15
T=2.16,MARK 16
T=2.17,MARK 17
T=2.18,MARK 18
T=2.19,MARK 19
T=2.20,MARK 20
T=2.21,MARK 21
T=2.22,MARK 22
T=2.23,MARK 23
T=2.24,MARK 24
T=2.25,MARK 25
T=2.26,MARK 26
T=2.27,MARK 27
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=34.6
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41301BWASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.70
T=2.72
T=2.74
T=2.76
T=2.78
T=2.80
T=2.82
T=2.84
T=2.86
T=2.88
T=2.90
T=2.92
T=2.94
T=2.96
T=2.98
T=3.00
T=3.02
T=3.04
T=3.06
T=3.08
T=3.10
T=3.12
T=3.14
T=3.16
T=3.18
T=3.20
T=3.22
T=3.24
T=3.26
T=3.28
T=3.30
T=3.32
T=3.34
T=3.36
T=3.38
T=3.40
T=3.42
T=3.44
T=3.46
T=3.48
41311JCASE, REAR DIFFERENTIAL
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
9017010021
main90170-10021
9462111000
main94621-11000
36 parts on this diagram · 1 diagram in section
