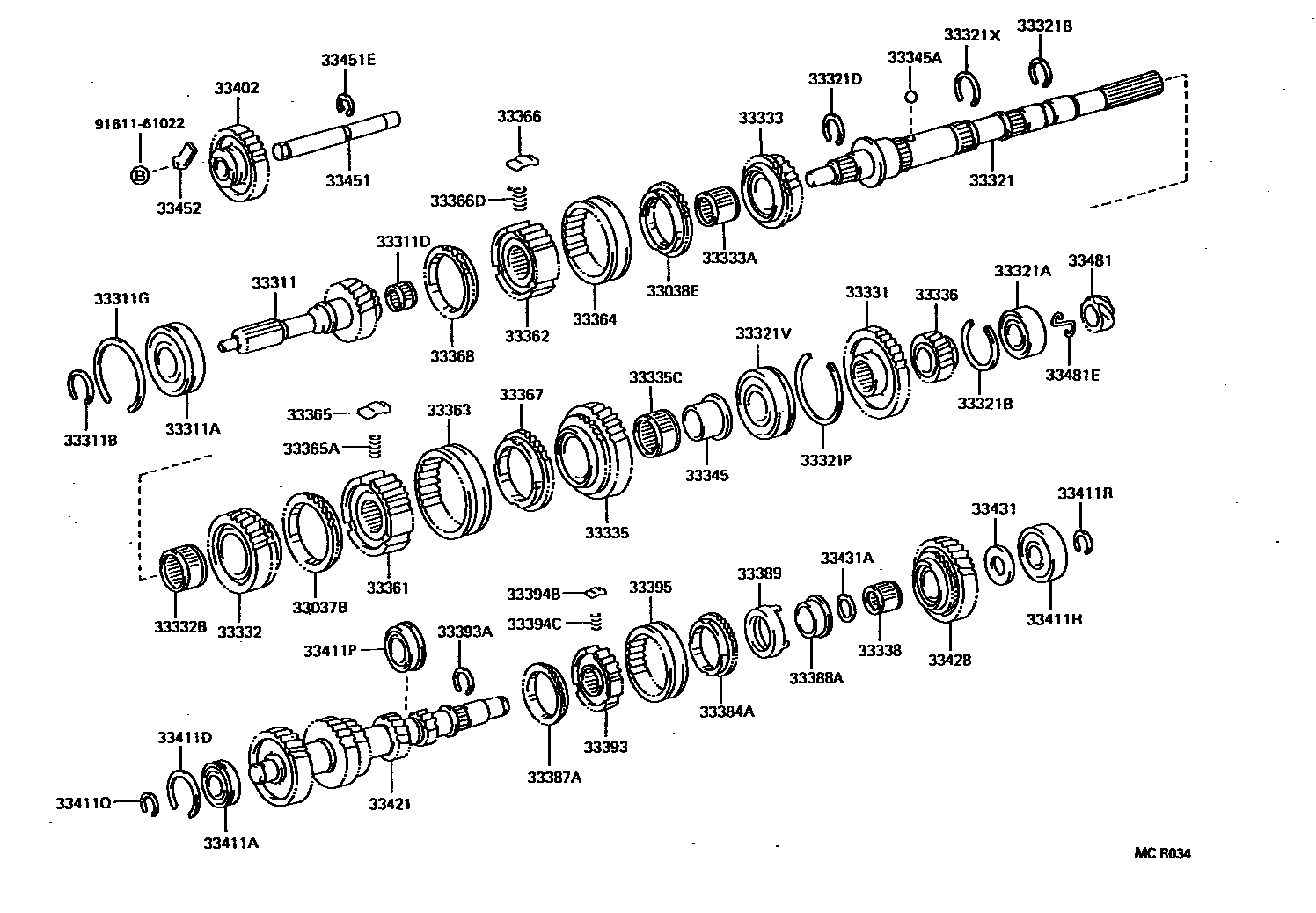

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.30-2.35,MARK 11
T=2.35-2.40,MARK 12
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14
T=2.74,MARK 15
T=2.43-2.48,MARK 10
T=2.49-2.54,MARK 11
T=2.55-2.60,MARK 12
T=2.61-2.66,MARK 13
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=0.95-1.05,NO MARK
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.75-1.80,MARK C-1
T=1.86,MARK 11
T=1.92,MARK 12
T=1.98,MARK 13
T=2.04,MARK 14
T=2.10,MARK 15
T=1.80-1.85,MARK D
33321PRING, SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=1.65
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=2.61,MARK 17
T=2.67,MARK 18
T=2.73,MARK 19
T=2.79,MARK 20
T=2.85,MARK 21
T=2.91,MARK 22
T=2.97,MARK 23
T=2.30-2.35,MARK 11
T=2.40,MARK 13
T=2.50,MARK 15
T=2.35-2.40,MARK 12
T=2.45,MARK 14
T=2.55,MARK 16
T=2.25,MARK 5
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33338BUSH OR BEARING, 5TH GEAR
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365ASPRING, COMPRESSION
33366KEY, SYNCHROMESH SHIFTING, NO.2
33366DSPRING, COMPRESSION
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33384ARING, SYNCHRONIZER, OUTER NO.3
33387ARING, REVERSE SYNCHRONIZER
33388ARING, REVERSE SYNCHRONIZER PULL
33389RING, SYNCHRONIZER CONE
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.06-2.11
T=2.12-2.17
T=2.18-2.23
T=2.24-2.29
33394BKEY, SYNCHROMESH SHIFTING, NO.3
33394CSPRING, COMPRESSION
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=1.90-1.95,MARK 1
T=1.96-2.01,MARK 2
T=2.02-2.07,MARK 3
T=2.08-2.13,MARK 4
T=2.14-2.19,MARK 5
T=2.20-2.25,MARK 6
T=2.26-2.31,MARK 7
33431SPACER, COUNTER GEAR, NO.1
33431ASPACER, COUNTER GEAR, NO.2
33451SHAFT, REVERSE IDLER GEAR
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N-11
33481ECLIP (FOR SPEEDOMETER DRIVE GEAR)
9161161022
main91611-61022
61 parts on this diagram · 1 diagram in section
