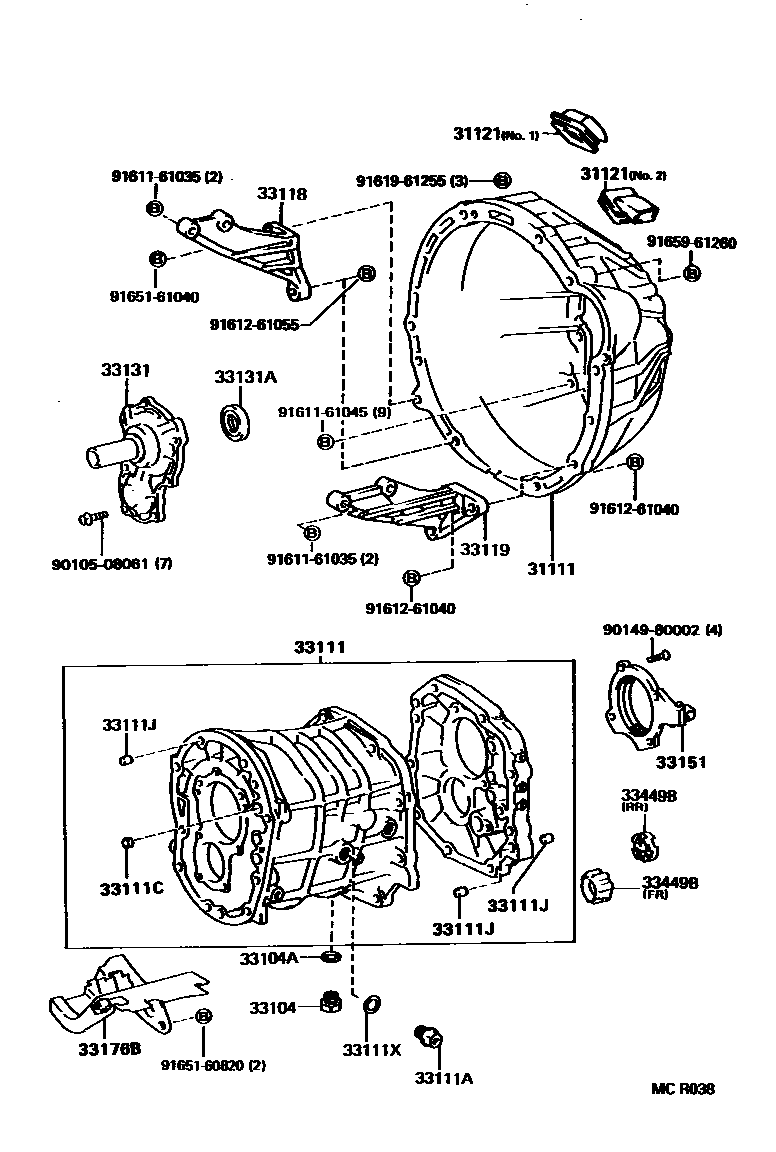

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W56 0002 1W56,W59

31111HOUSING, CLUTCH

main31111-26030iRCK10199309-199601

main31111-26031iRCK10199601-199608

31121COVER, CLUTCH HOUSING, NO.1

main31121-26020iRCK10199309-199608

NO.2

main31121-35020iRCK10199309-199608

NO.1

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iRCK10199408-199608

main90341-18057iRCK10199309-199408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRCK10199309-199608

33111CASE, MANUAL TRANSMISSION

main33101-30070iRCK10199309-199503

main33101-30071iRCK10199503-199608

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRCK10199309-199408

main90341-18006iRCK10199408-199608

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iRCK10199309-199503

OD=14

main96411-41800×2iRCK10199309-199608

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iRCK10199309-199608

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iRCK10199309-199608

33118PLATE, STIFFENER, RH(MTM)

main33118-26010iRCK10199309-199408

33119PLATE, STIFFENER, LH(MTM)

main33119-26020iRCK10199309-199408

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iRCK10199309-199608

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iRCK10199309-199608

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iRCK10199309-199608

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-30020iRCK10199309-199608

33449BMAGNET, TRANSMISSION

main33449-30010iRCK10199309-199608

RR

main33449-30020iRCK10199309-199608

FR

9010508061

main90105-08061

9014980002

main90149-80002

9161161035

main91611-61035

9161161045

main91611-61045

9161261040

main91612-61040

9161261055

main91612-61055

9161961255

main91619-61255

9165160820

main91651-60820

9165161040

main91651-61040

9165961260

main91659-61260

26 parts on this diagram · 2 diagrams in section
