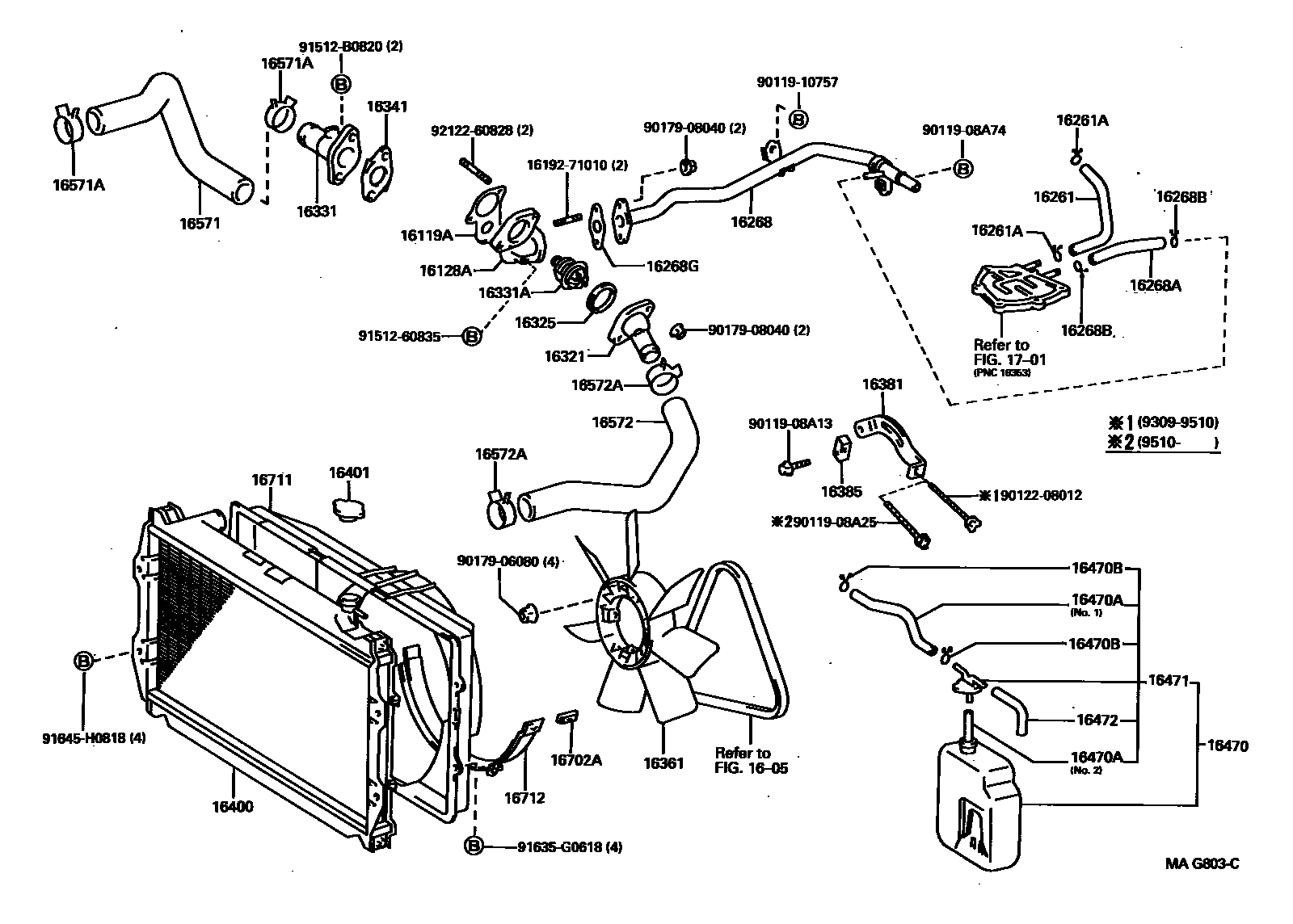

RADIATOR & WATER OUTLET
1605
16119AGASKET, THERMOSTAT GUIDE
16128APLATE, WATER PUMP THERMOSTAT GUIDE
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
sub16268-75080
16268AHOSE(FOR WATER BY-PASS PIPE)
*H,L=200
16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
sub96135-51300
16268GGASKET(FOR WATER BY-PASS PIPE)
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
16341GASKET, WATER OUTLET
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
16401CAP SUB-ASSY, RADIATOR
sub16401-20353
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
L=600,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37005
16702ACLIP(FOR FAN SHROUD NO.2)
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
1701
1619271010
main16192-71010
9011908A13
main90119-08A13
9011908A25
main90119-08A25
9011908A74
main90119-08A74
9011910757
main90119-10757
9012208012
main90122-08012
9017906080
main90179-06080
9017908040
main90179-08040
9151260835
main91512-60835
91512B0820
main91512-B0820
91635G0618
main91635-G0618
91645H0818
main91645-H0818
9212260828
main92122-60828
45 parts on this diagram · 2 diagrams in section
