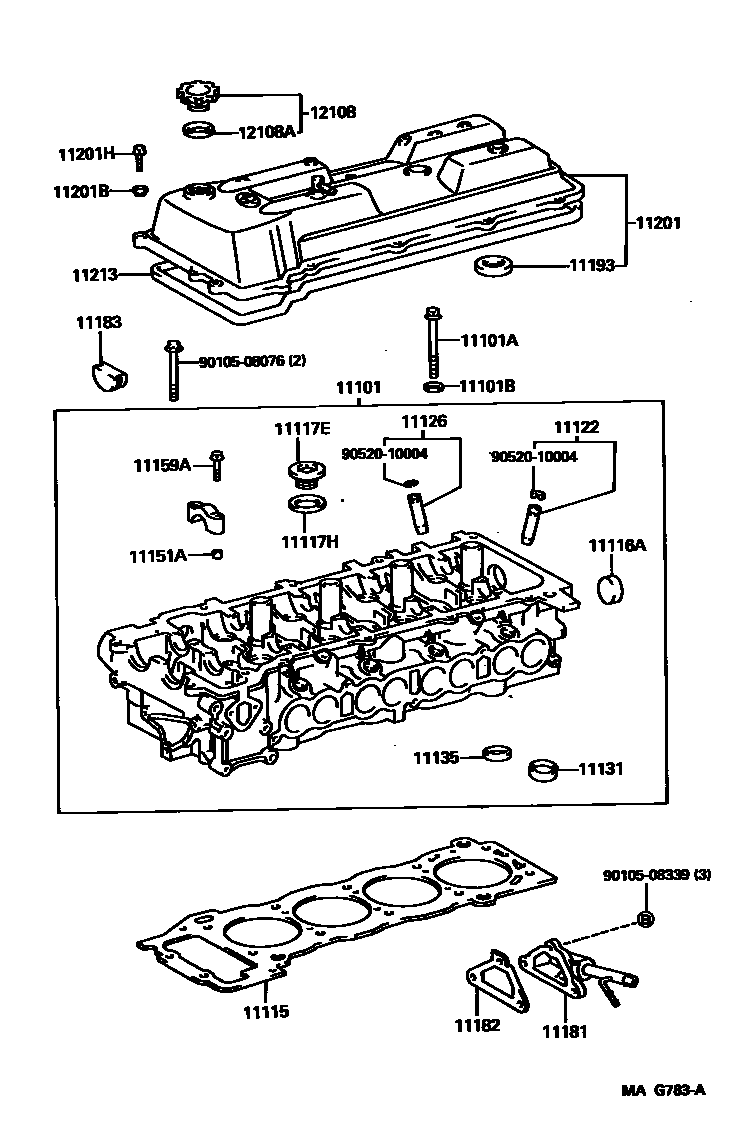

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
sub90910-02187
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
sub11181-75031
11182GASKET, CYLINDER HEAD REAR PLATE
11183PLUG, SEMICIRCULAR
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
9010508076
main90105-08076
9010508339
main90105-08339
9052010004
main90520-10004
26 parts on this diagram · 1 diagram in section
