STANDARD TOOL

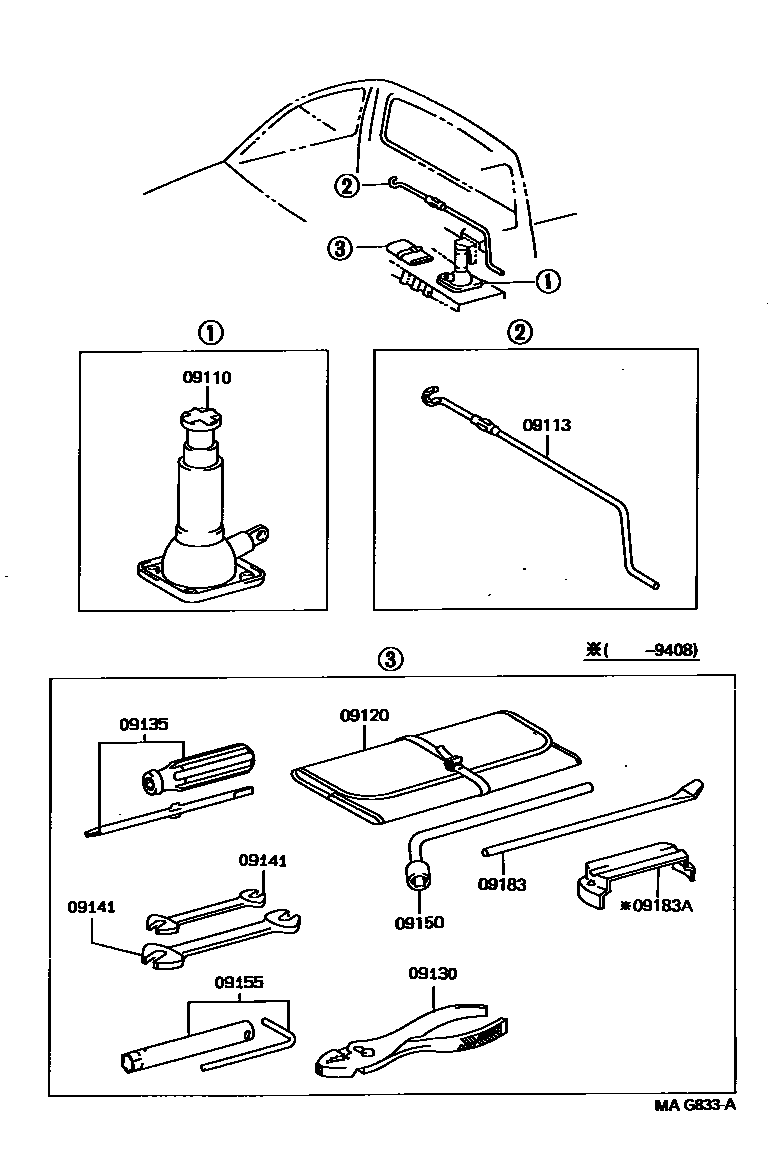

Parts diagram
09110JACK ASSY
main09110-34010i199607-199608
main09111-34010i199309-199607
sub09110-34010
09113HANDLE, JACK
main09113-34010i199309-199608
09120BAG, TOOL
main09120-26021i199501-199608
sub09120-35170
main09120-35070i199309-199501
sub09120-26021
09130PLIERS
main99913-11500i199309-199608
09135DRIVER, SCREW
main99915-10700i199309-199608
09141SPANNER
main99914-10810i199309-199608
8 X 10
main99914-11214i199309-199608
12 X 14
09150WRENCH, HUB NUT BOX
main09150-60020i199309-199508
09155WRENCH, SPARK PLUG
main09155-74010i199309-199608
09183WRENCH, WHEEL CAP
main09183-00030i199309-199408
09183AREPLACER, WHEEL CAP
main09183-00030i199408-199508
main09183-35010i199309-199408

10 parts on this diagram · 1 diagram in section
