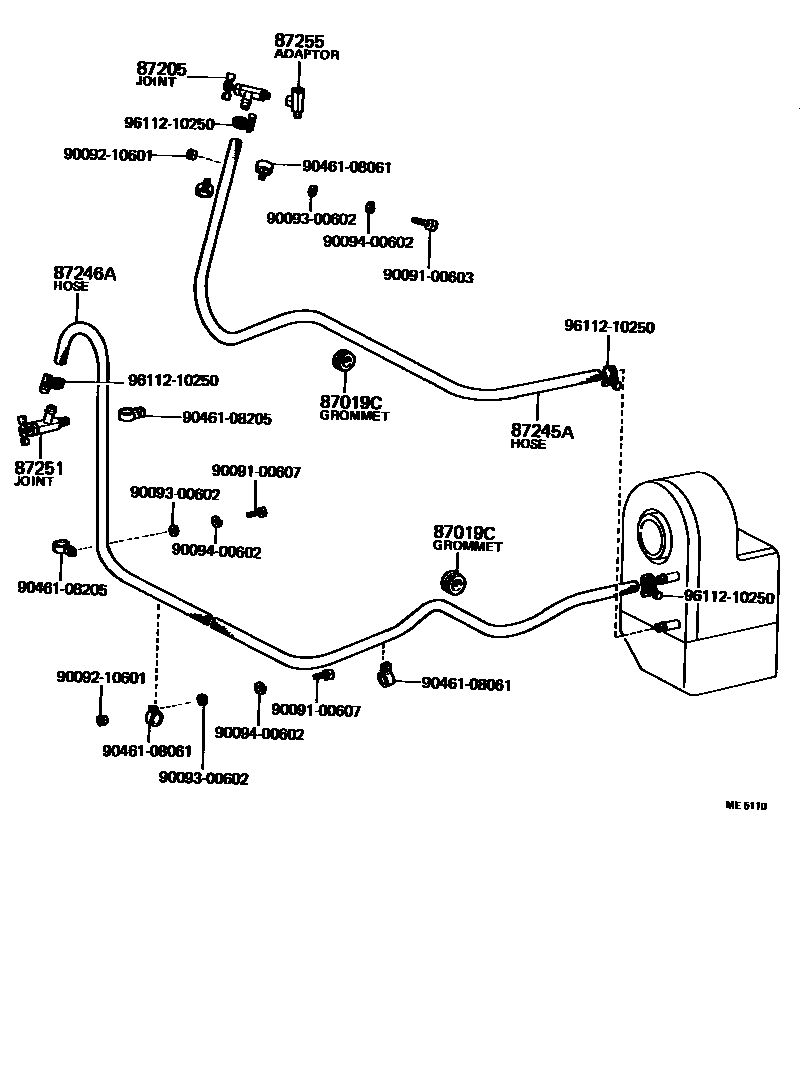

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90099-32015×2iDA11#,FA100,11#,FC100..RHD196903-197403

main90480-01167iDA11#,FA100,115197404-200112

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87204-55010iDA11#,FA100,11#,FC100..RHD197109-197403

main87205-25010iDA11#,FA100,11#,FC100..RHD196903-197109

main87206-60090iDA11#,FA100,115197404-197704

main87240-55010iDA11#197704-197805

main87240-55011iDA11#197805-200112

main87240-55020iFA100,115197704-198207

87245AHOSE, HEATER WATER, INLET A

main87245-55050iFA100,115197404-197704

main87245-55070iDA11#197404-197704

main87245-55090iFA100,115197704-198207

main87245-55100iDA11#197704-200112

main90445-21067iFA100,11#,FC100..RHD196903-197104

L=720

main99552-21000iFA100,11#,FC100..RHD197303-197403

*H,L=980

main99552-22000iDA11#..RHD196903-197403

*H,L=1160

87246AHOSE, HEATER WATER, OUTLET A

main87245-14090iDA11#,FA100,115197704-200112

main87245-30390iDA11#,FA100,115..RHD197404-197704

main87245-55090iDA11#,FA100..LHD197404-197704

main99551-22000iFA100,11#,FC100..RHD197104-197303

L=2000

main99552-22000iFA100,11#,FC100..RHD197303-197403

L=2000

main99552-23000iDA11#..RHD196903-197403

*H,L=2600

87251JOINT OR UNION, WATER HOSE THROUGH

main87204-29010iDA11#..RHD196903-197403

main87251-20070iFA100,115197404-198207

main87251-30180iDA11#197404-197704

main87251-30181iDA11#197704-200112

main87251-55050iFA100,11#,FC100..RHD196903-197403

87255ADAPTER, WATER HOSE JOINT

main87256-55010iDA11#..RHD196903-197403

main87256-60030iFA100,11#,FC100..RHD196903-197403

main87256-60031iFA100,115197404-198207

9009100603

main90091-00603

9009100607

main90091-00607

9009210601

main90092-10601

9009300602

main90093-00602

9009400602

main90094-00602

9046108061

main90461-08061

9046108205

main90461-08205

9611210250

main96112-10250

14 parts on this diagram · 3 diagrams in section
