RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

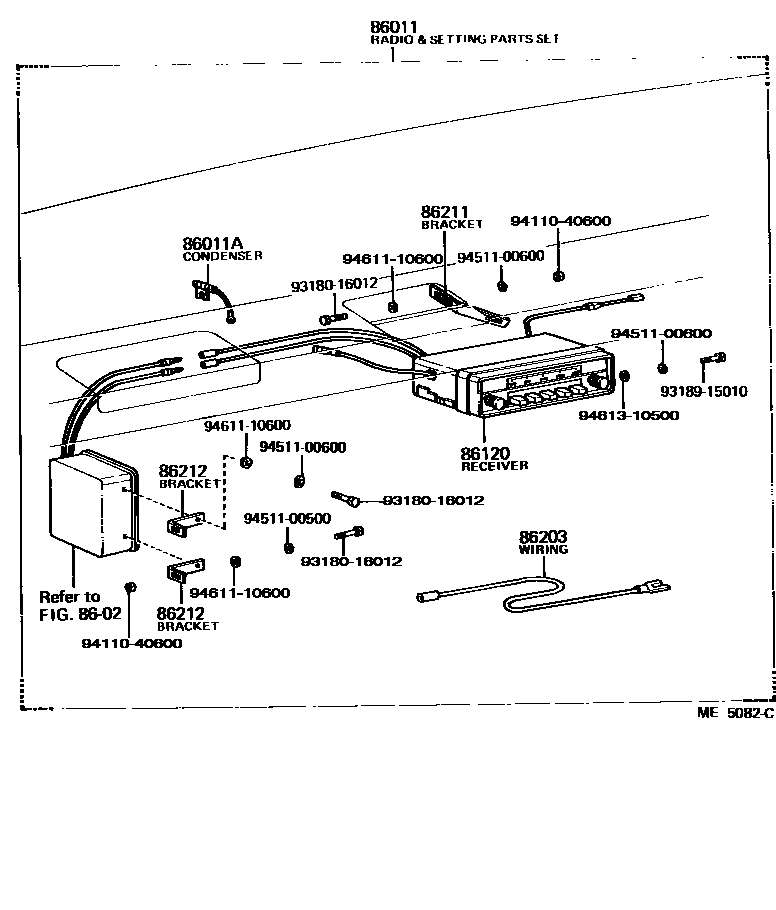

86011RADIO & SETTING PARTS SET

main86011-55012iDA11#..RHD196903-197403

main86011-55022iFA100,11#,FC100..RHD196903-197403

main86011-55030iDA11#197404-200112

main86011-55040iFA100,115197404-197505

main86011-55041iFA100,115197505-198207

86011ACONDENSER, RADIO SETTING

main90980-04007iDA11#,FA100,11#,FC100..RHD196903-197403

;U; CONNECTOR

main90980-04011iDA11#,FA100,115197704-198903

CONNECTOR:PLUG

8602SPEAKER

→ Go to FIG 86-02

86120RECEIVER ASSY, RADIO

main86120-25010iDA11#197404-197711

main86120-25020iDA11#197711-199803

main86120-35023iFA100,11#,FC100..RHD196903-197403

main86120-35024iFA100,115197404-197505

main86120-35025iFA100,115197505-198207

main86120-36011iDA11#..RHD196903-197403

main86120-37040iDA11#199803-200112

MATSUSHITA,ID=52102

86203WIRE, RADIO

main86203-35010iDA11#..RHD196903-197403

86211BRACKET, RADIO, NO.1

main86211-55010iDA11#,FA100,115197404-198002

main86211-55011iDA11#,FA100,115198002-199803

main86211-55012iDA11#199803-200112

main86214-35020×5iDA11#,FA100,11#,FC100..RHD196903-197403

86212BRACKET, RADIO, NO.2

main86211-55030iDA11#,FA100,115197404-198002

main86211-55031iDA11#,FA100,115198002-199803

main86211-55032iDA11#199803-200112

main86215-35030iDA11#,FA100,11#,FC100..RHD196903-197403

9318016012

main93180-16012

9318915010

main93189-15010

9411040600

main94110-40600

9451100500

main94511-00500

9451100600

main94511-00600

9461110600

main94611-10600

9461310500

main94613-10500

14 parts on this diagram · 2 diagrams in section
