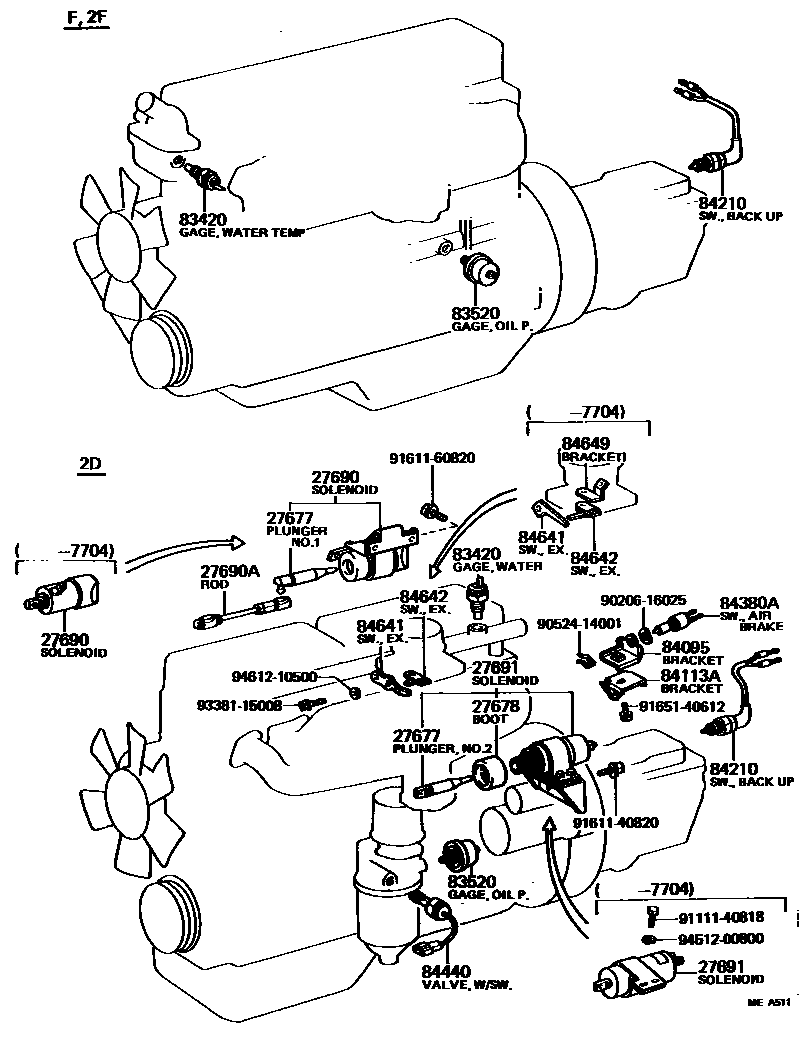

SWITCH & RELAY & COMPUTER
27677PLUNGER, SOLENOID INNER VALVE SWITING
NO.2
NO.1
NO.1
27678BOOT, EXHAUST RETARDER SOLENOID
27690SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690AROD SUB-ASSY, CONNECTING
27691SOLENOID ASSY, EXHAUST BRAKE
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
84095BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84113ABRACKET, SWITCH, NO.1
84210SWITCH ASSY, BACK-UP LAMP
84380ASWITCH AIR-BRAKE WARNING
84440BY-PASS VALVE ASSY, WITH SWITCH
OIL FILTER
84641SWITCH, EXHAUST BRAKE, NO.1
NO.35
NO.25
NO.30
NO.35
84642SWITCH, EXHAUST BRAKE, NO.2
84649BRACKET, EXHAUST BRAKE SWITCH
MECHANICAL GOVERNOR
9020616025
main90206-16025
9052414001
main90524-14001
9111140818
main91111-40818
9161140820
main91611-40820
9161160820
main91611-60820
9165140612
main91651-40612
9338115008
main93381-15008
9451200800
main94512-00800
9461210500
main94612-10500
24 parts on this diagram · 9 diagrams in section
