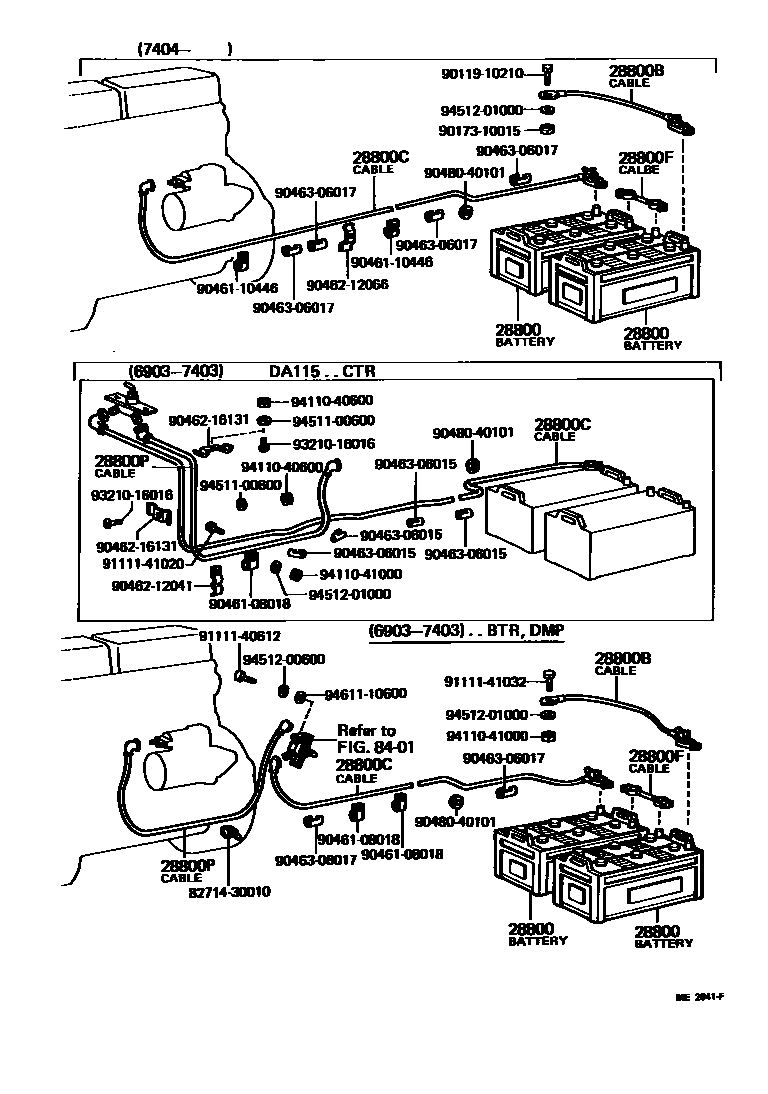

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800BATTERY

main28800-30081iF..FA100,11#,FC100196903-197006

N50,48D26R(N50)

main28800-30082iF..FA100,11#,FC100197006-198207

48D26R,48D26R(N50)

main28800-76020×2i2D..DA11#,DB10#196903-200112

115F51,115F51(N120),GS

main28800-76030×2i2D..DA11#,DB10#196903-200112

115F51,115F51(N120),KOBE

28800BCABLE, BATTERY TO GROUND

main90982-02002i2D..DB10#196903-197703

main90982-02010iF..FA100,11#,FC100..RHD196903-197501

main90982-02020i2D..DA11#196903-200112

main90982-02027iF..FA100,115197501-198207

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01002iF..FA100,11#,FC100..LHD196903-198002

main90982-01005iF..FA100,115198002-198207

main90982-01013i2D..DB10#196903-197703

main90982-01047i2D..DA11#196903-197403

main90982-01172i2D..DA11#197404-200112

main90982-01332i2D..DA110..RHD..BTR..1SR197903-200112

INDONESIA SPEC

28800FCABLE, BATTERY TO BATTERY

main90982-03006i2D..DA11#,DB10#196903-200112

28800PCABLE, BATTERY TO STARTER(FOR MAIN SWITCH TO STARTER)

main90982-01017i2D..DA11#,DB10#196903-197403

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271430010

main82714-30010

9011910210

main90119-10210

9017310005

main90173-10005

9046108018

main90461-08018

9046110446

main90461-10446

9046212041

main90462-12041

9046212066

main90462-12066

9046216131

main90462-16131

9046306015

main90463-06015

9046306017

main90463-06017

9048040101

main90480-40101

9111140612

main91111-40612

9111141020

main91111-41020

9111141032

main91111-41032

9321016016

main93210-16016

9411040600

main94110-40600

9411041000

main94110-41000

9451100600

main94511-00600

9451200600

main94512-00600

9451201000

main94512-01000

9461110600

main94611-10600

27 parts on this diagram · 3 diagrams in section
