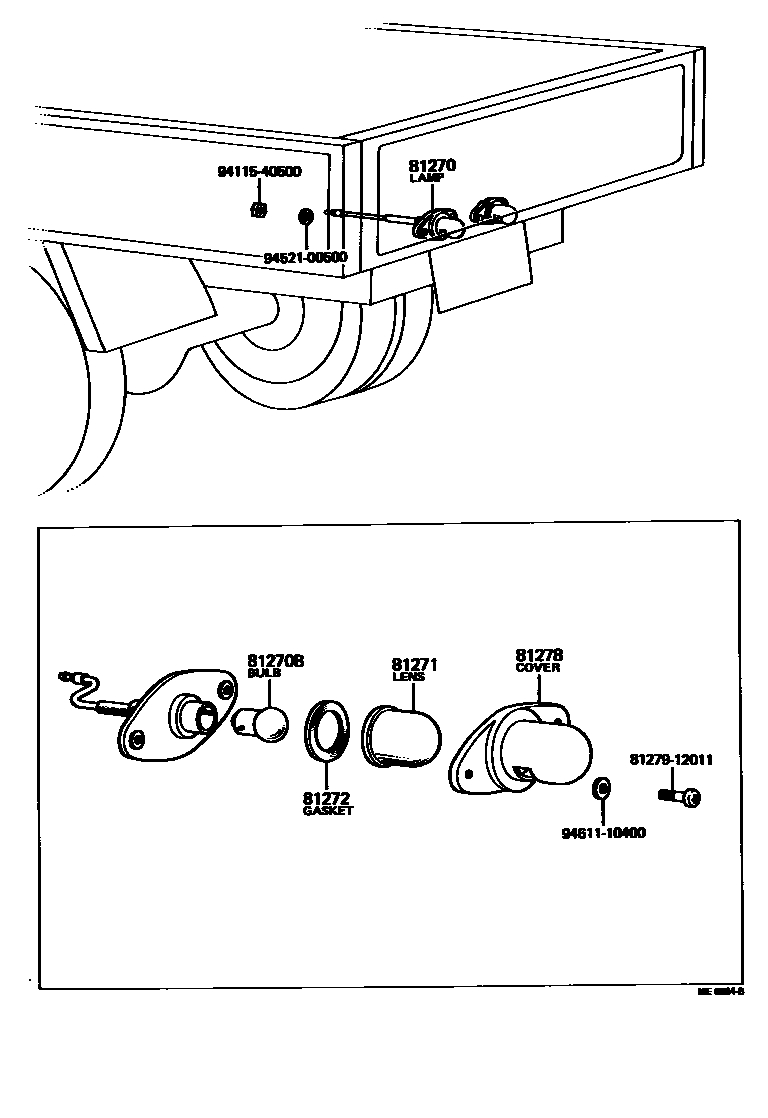

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-55010iFC100196903-197403

main81270-55022×2iFA100,11#196903-198207

main81270-55032×2iDA11#,DB10#196903-200112

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11100×2iFA100,11#,FC100196903-198207

12V 10W,12V 10W

main99134-11100×2iDA11#,DB10#196903-196908

24V 10W

main99134-11120×2iDA11#,DB10#196908-200112

24V 12W,24V 12W

81271LENS, LICENSE PLATE LAMP

main81271-55021×2iDA11#,DB10#,FA100,11#196903-200112

main81271-60010iFC100196903-197403

81272GASKET, LICENSE PLATE LAMP LENS

main81272-55021×2iDA11#,DB10#,FA100,11#196903-200112

main81272-60010iFC100196903-197403

81278COVER, LICENSE PLATE LAMP

main81278-55021×2iDA11#,DB10#,FA100,11#196903-200112

main81278-60010iFC100196903-197403

8127912011WASHER, SIDE TURN SIGNAL LAMP

main81279-12011

9411540500

main94115-40500

9452100500

main94521-00500

9461110400

main94611-10400

9 parts on this diagram · 2 diagrams in section
