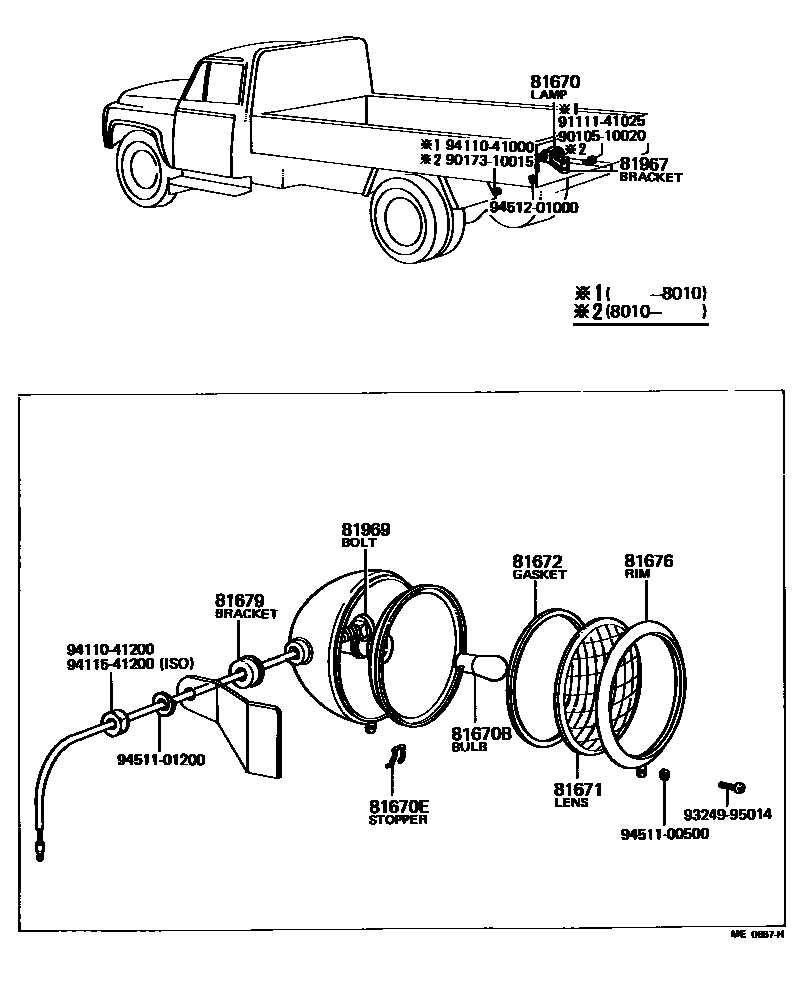

BACK UP LAMP

0001 1 0002 1 0004 1

81670LAMP ASSY, BACK-UP, RH

main81670-55010iFA100,11#,FC100..RHD..BTR196903-198207

main81670-55020iDA11#..RHD..BTR196903-200112

main81670-93000iDA110..DMP196903-197809

main81670-93001iFA100,110..DMP196903-197704

main81680-55010iFA100..LHD..DMP197704-198207

main81680-55020iDA11#..LHD..BTR196903-200112

81670BBULB(FOR BACK-UP LAMP)

main99132-11230iFA100,11#,FC100196908-198207

12V 23W,12V 23W

main99132-11250iFA100,11#,FC100196903-196908

12V 25W

main99134-11250iDA11#196903-200112

24V 25W,24V 25W

81670ESTOPPER, BACK-UP LAMP REFLECTOR

main81517-20010×4iFA100..DMP197704-198207

81671LENS, BACK-UP LAMP, RH

main81671-55010iFA100..DMP197704-198207

main81671-93001iFA100,110..DMP196903-197704

81672GASKET, BACK-UP LAMP LENS, RH

main81512-20010iFA100..DMP197704-198207

81676RIM, BACK-UP LAMP, RH

main81676-55010iFA100..DMP197704-198207

81679BRACKET, BACK UP LAMP BODY

main81678-55010iFA100..DMP197704-198207

81967BRACKET, BACK UP LAMP

main81967-55010iDA11#,FA100,11#,FC100..BTR196903-200112

81969BOLT, BACK UP LAMP MOUNTING

main81679-55010iDA11#,FA100,11#,FC100..BTR196903-196908

9010510020

main90105-10020

9017310015

main90173-10015

9111141025

main91111-41025

9324995014

main93249-95014

9411041000

main94110-41000

9411041200

main94110-41200

9411541200

main94115-41200

9451100500

main94511-00500

9451101200

main94511-01200

9451201000

main94512-01000

19 parts on this diagram · 3 diagrams in section
