REAR COMBINATION LAMP

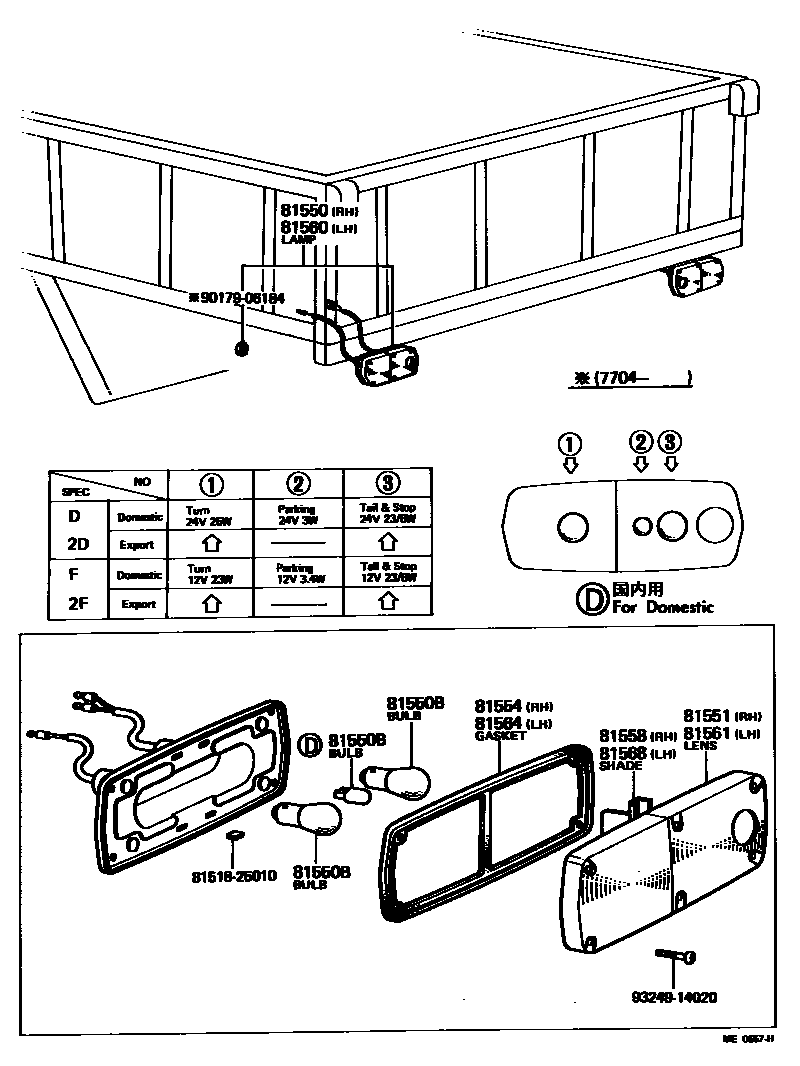

Parts diagram

81550LAMP ASSY, REAR COMBINATION, RH

main81550-55040i196903-197704

main81550-55050i196903-197704

main81550-55090i197305-197403

AUSTRALIA SPEC

main81550-55100i197404-197704

AMBER-RED,AUSTRALIA SPEC

main81550-59035i197704-198207

main81550-59045i197704-200112

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16021×2i198011-200112

24V 25/10W,24V 25/10W

main99132-11230×4i196908-198207

12V 23W,12V 23W

main99132-11250×2i196903-196908

12V 25W

main99132-21230×2i196908-198207

12V 23/8W,12V 23/8W

main99132-22250×2i196903-196908

12V 25/8W

main99134-11250×2i196903-200112

24V 25W,24V 25W

main99134-22250×2i196903-198011

24V 25/10W,24V 25/10W

81551LENS, REAR COMBINATION LAMP, RH

main81551-55040i196903-197704

main81551-55090i197305-197403

AUSTRALIA SPEC

main81551-55100i197404-197704

AMBER-RED,AUSTRALIA SPEC

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-55040i196903-200112

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-55040i196903-200112

81560LAMP ASSY, REAR COMBINATION, LH

main81550-55040i196903-197704

main81550-55050i196903-197704

main81550-55090i197305-197403

AUSTRALIA SPEC

main81550-55100i197404-197704

AMBER-RED,AUSTRALIA SPEC

main81550-59035i197704-198207

main81550-59045i197704-200112

81561LENS, REAR COMBINATION LAMP, LH

main81551-55040i196903-197704

main81551-55090i197305-197403

AUSTRALIA SPEC

main81551-55100i197404-197704

AMBER-RED,AUSTRALIA SPEC

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-55040i196903-200112

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81558-55040i196903-200112

8151825010SHADE, FRONT TURN SIGNAL LAMP, RH

main81518-25010

9017906184

main90179-06184

9324914020

main93249-14020

12 parts on this diagram · 1 diagram in section
