WORK LAMP

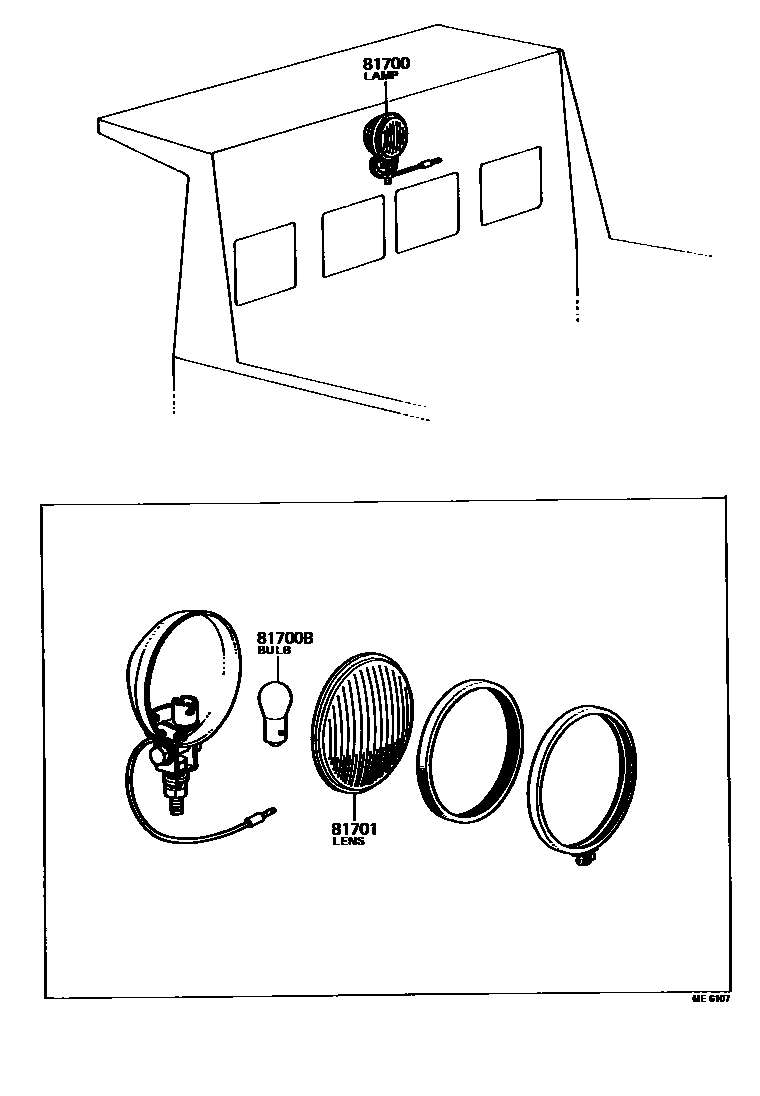

Parts diagram

81700LAMP ASSY, WORK

main81670-55020i197704-200112

main81670-93000i196903-197704

main81670-93001i196903-197704

main81680-55010i197704-198207

main81680-55020i197704-200112

81700BBULB, WORK LAMP

main99132-11250i196903-198207

12V 25W

main99134-11250i196903-200112

24V 25W,24V 25W

81701LENS, WORK LAMP

main81671-55010i197704-200112

main81671-93001i196903-197704

3 parts on this diagram · 2 diagrams in section
