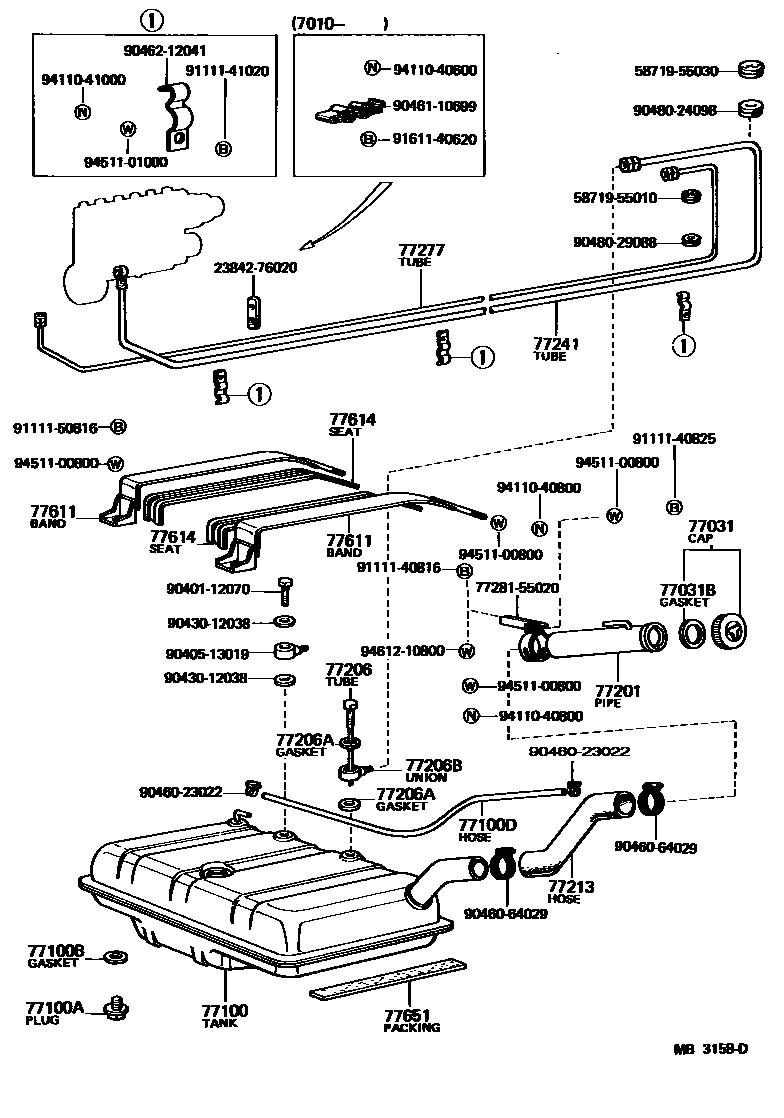

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1AUSTRALIA 0006 1 0007 1 0008 1

77031CAP ASSY, FUEL TANK

main77031-14010iFA100,115197808-198207

W/KEY

main77031-95010iDA11#197808-200112

W/KEY

sub69058-95210

main77310-55021iFA100,11#,FC100196903-197302

main77310-55031iDA11#196903-197302

main77310-55080iDA115..RHD197507-198809

AUSTRALIA SPEC

sub77310-60100

main77310-55090iDA11#,DB10#197302-200112

sub77310-60100

main77310-56020iDB10#196903-197302

main77310-60011iFA100,11#,FC100197302-198207

77031BGASKET (FOR FUEL TANK CAP)

main77316-27010iDA11#,DB10#,FA100,11#,FC100197302-200112

main90430-40059iDA11#,FA100,11#,FC100196903-197302

main90430-67079iDB10#196903-197302

77100TANK ASSY, FUEL

main77001-55063iDA11#197205-197302

sub77001-55906

main77001-55073iFA100,11#,FC100197205-197302

sub77001-55110

main77001-55110iFA100,11#,FC100197302-197501

main77001-55110iDA11#197710-200112

IV3

main77001-55120iFA100,115197710-198207

IV3

main77001-55120iDA11#197302-197410

main77001-55150iFA115197710-198207

IV1

main77001-55160iDA11#197710-200112

IV1,IV5

main77001-55181iDA115..RHD197710-200112

AUSTRALIA SPEC

main77001-55902iFA115197704-197710

IV1

sub77001-55150

main77001-55902iDB10#197302-197703

sub77001-55150

main77001-55904iDA11#197704-197710

IV1,IV5

sub77001-55160

main77001-55906iDA11#,FA100,115197410-197704

sub77001-55120

main77001-55906iFA100,115197704-197710

IV3

sub77001-55120

main77001-55909iDA115..RHD197507-197704

AUSTRALIA SPEC

main77001-55911iDA11#197704-197710

IV3

sub77001-55110

main77001-55912iDA115..RHD197704-197710

AUSTRALIA SPEC

sub77001-55181

main77001-56030iDB10#197205-197302

ISO

main77011-55011iDA11#,FA100,11#,FC100196903-196905

ISO

sub77011-55012

sub90105-12018

main77011-55012iDA11#,FA100,11#,FC100196905-197205

main77100-56022iDB10#196903-197205

sub77001-56012

sub77001-56013

77100APLUG(FOR FUEL TANK)

main90105-12005iDA11#,DB10#,FA100,11#,FC100196903-196908

main90105-12018iDA11#,DB10#,FA100,11#,FC100196908-200112

77100BGASKET(FOR FUEL TANK)

main90430-12038iDA11#,DB10#,FA100,11#,FC100196903-197708

main90430-12245iDA115..RHD197507-200112

AUSTRALIA SPEC

main90430-12245iDA11#,FA100,115197708-200112

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-24972iDA11#,FA100,11#,FC100197302-200112

main90446-21110iDA11#,FA100,11#,FC100196903-197302

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-55030iDA11#,FA100,11#,FC100196903-197302

main77201-55060iDA11#,FA100,11#,FC100197302-200112

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77206-55020iDA11#,FA100,11#,FC100196903-196905

main77206-55021iDA11#,FA100,11#,FC100196905-197205

main77206-66010iDB10#196903-197205

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main90430-12038iDA11#,FA100,11#,FC100196903-197205

77206BUNION (FOR FUEL TANK SUCTION TUBE)

main90405-13019iDA11#,FA100,11#,FC100196903-197205

77213HOSE, FUEL TANK SUB INLET

main77217-55020iDA11#,FA100,11#,FC100196903-197209

sub77217-55021

main77217-55021iDA11#,FA100,11#,FC100197209-200112

77241TUBE, FUEL MAIN, NO.1

main77251-55010iDA11#197205-197704

main77251-55020iFA100,11#,FC100197205-198207

main77251-55030iDA115..RHD197507-197704

AUSTRALIA SPEC

main77251-55040iDA11#197704-198104

W/O FUEL SEDIMENTER

main77251-55050iDA115..RHD197704-198002

AUSTRALIA SPEC

main77251-55060iDA110..RHD..BTR197904-198104

W/O FUEL SEDIMENTER,INDONESIA

main77251-55070iDA11#198002-200112

W/FUEL SEDIMENTER

main77251-55080iDA11#198002-198104

W/AIR OVER BRAKE

main77251-55090iDA115..RHD198002-198104

W/O FUEL SEDIMENTER,AUSTRALIA

main77252-96522iDB10#197205-197703

main90923-01004iDB10#196903-197205

main90923-01047iFA100,11#,FC100196903-197205

main90923-01048iDA11#196903-197205

77277TUBE, FUEL RETURN, NO.1

main77252-55010iDA11#197205-197704

sub77255-55010

main77255-55010iFA100,115197501-197803

main77255-55011iFA100,115197803-198207

main77255-55020iDA115..RHD197507-197704

AUSTRALIA SPEC

main77257-96519iDB10#197205-197703

main90923-01003iDB10#196903-197205

main90923-01049iDA11#196903-197205

77611BAND, FUEL TANK

main77601-36051iDA115..RHD197507-200112

AUSTRALIA SPEC

main77601-55050iDA110..RHD..BTR197904-200112

INDONESIA SPEC

main77601-56010iDB10#196903-197703

main77601-57011iDA11#,FA100,115197704-200112

IV1,IV5

main77611-55020iDA11#,FA100,11#,FC100196903-197704

main77611-55020iDA11#,FA100,115197704-200112

IV3

77614SEAT, FUEL TANK BAND

main77614-36040iDA115..RHD197507-200112

AUSTRALIA SPEC

sub77681-27020

main77614-55010iDA11#,FA100,11#,FC100196903-200112

main77614-56010iDB10#196903-197703

77651PACKING, FUEL TANK BRACKET

main77651-36050iDA115..RHD197507-200112

AUSTRALIA SPEC

main77651-55010iDA11#,FA100,11#,FC100196903-200112

2384276020CLAMP, FUEL PIPE(HOSE), NO.2

main23842-76020

5871955010REINFORCEMENT, ENGINE SERVICE COVER

main58719-55010

5871955030REINFORCEMENT, ENGINE SERVICE COVER

main58719-55030

7728155020BRACKET, FUEL MAIN TUBE, NO.1

main77281-55020

9040112070

main90401-12070

9040513019

main90405-13019

9043012038

main90430-12038

9046023022

main90460-23022

9046064029

main90460-64029

9046110699

main90461-10699

9046212041

main90462-12041

9048024098

main90480-24098

9048029088

main90480-29088

9111140816

main91111-40816

9111140825

main91111-40825

9111141020

main91111-41020

9111150816

main91111-50816

9161140620

main91611-40620

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451101000

main94511-01000

9461210800

main94612-10800

40 parts on this diagram · 8 diagrams in section
