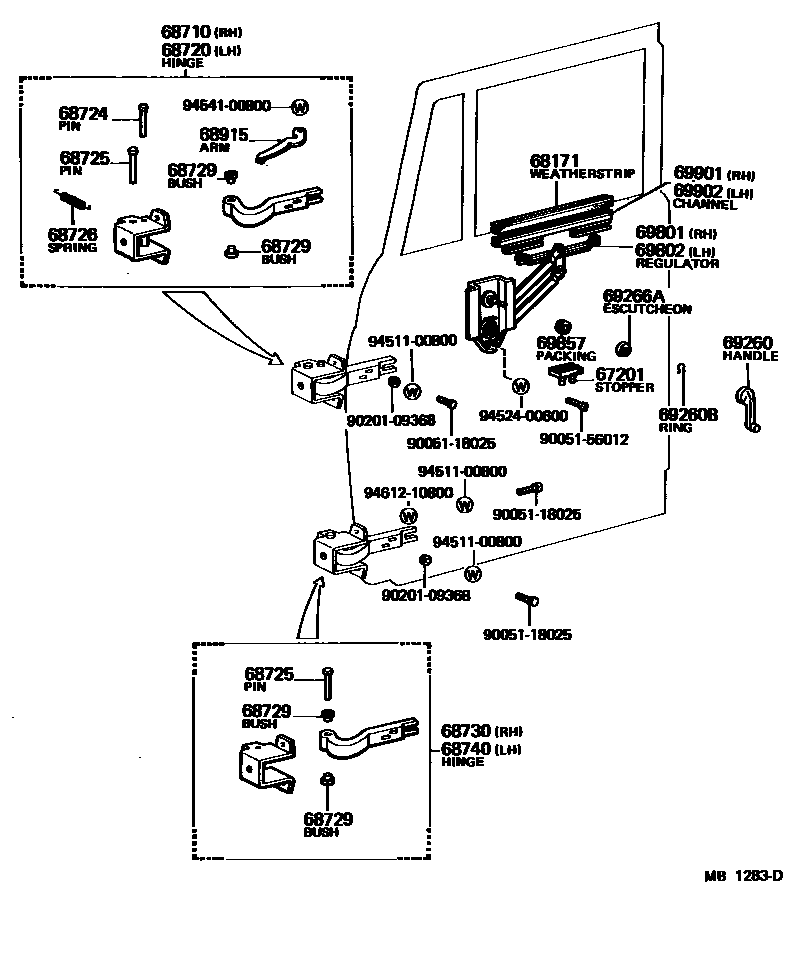

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main68415-95212×2iDA11#,FA100,11#,FC100196903-197403

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2iDA11#,FA100,115197404-200112

main69981-95212×2iDA11#,FA100,11#,FC100196903-197403

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95212iDA11#,FA100,11#,FC100196903-200112

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95212iDA11#,FA100,11#,FC100196903-200112

68724PIN, DOOR HINGE FEMALE STOP

main68724-95211×2iDA11#,FA100,11#,FC100196903-200112

68725PIN, DOOR HINGE

main68791-95212×4iDA11#,FA100,11#,FC100196903-196912

main90245-10061×4iDA11#,FA100,11#,FC100196912-200112

68726SPRING, DOOR CHECK

main68728-95211×2iDA11#,FA100,11#,FC100196903-196912

main90506-16253×2iDA11#,FA100,11#,FC100196912-200112

68729BUSH, DOOR HINGE

main68729-95210×8iDA11#,FA100,11#,FC100196903-196912

main90386-10015×2iDA11#198308-200112

main90386-10121×8iDA11#,FA100,11#,FC100196912-198308

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-95212iDA11#,FA100,11#,FC100196903-200112

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-95212iDA11#,FA100,11#,FC100196903-200112

68915ARM, FRONT DOOR CHECK

main68915-95212×2iDA11#,FA100,11#,FC100196903-200112

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69206-95111×2iDA11#,FA100,11#,FC100196903-197403

main69260-29046×2iDA11#,FA100,115197404-200112

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90053-70800×2iDA11#,FA100,11#,FC100196903-197403

main90520-01002×2iDA11#,FA100,115197404-197410

main90520-01274×2iDA11#,FA100,115197410-200112

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69171-95110×2iDA11#,FA100,11#,FC100196903-197403

main69273-95500×2iDA11#,FA100,115197404-200112

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95213iDA11#,FA100,11#,FC100196903-197403

main69810-95214iDA11#,FA100,115197404-200112

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95213iDA11#,FA100,11#,FC100196903-197403

main69820-95214×4iDA11#,FA100,115197404-200112

69857PACKING, DOOR WINDOW REGULATOR SHAFT

main69857-95211×2iDA11#,FA100,11#,FC100196903-197403

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95212×2iDA11#,FA100,11#,FC100196903-197403

main69901-95213iDA11#,FA100,115197404-200112

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95212iDA11#,FA100,11#,FC100196903-197403

main69902-95211iDA11#,FA100,115197404-200112

9005118025

main90051-18025

9005156012

main90051-56012

9020109368

main90201-09368

9451100800

main94511-00800

9452400600

main94524-00600

9454100800

main94541-00800

9461210800

main94612-10800

26 parts on this diagram · 2 diagrams in section
