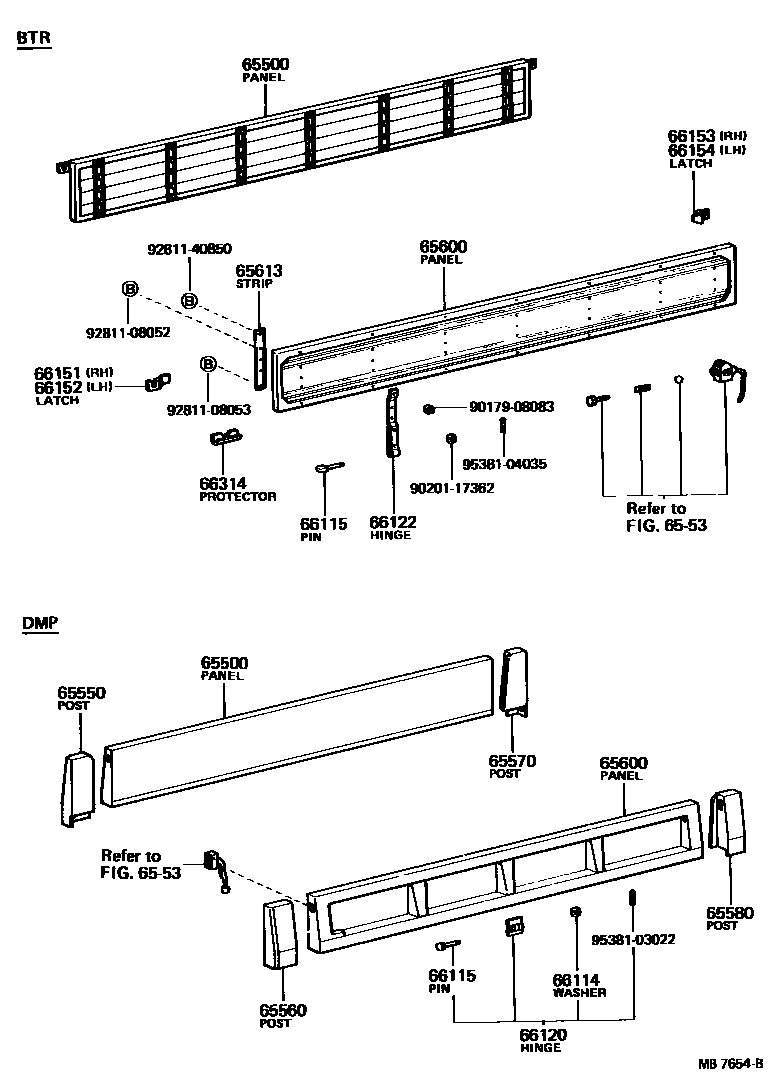

REAR BODY SIDE PANEL

0001 1 0002 1

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-93001iFA100..DMP196903-198207

main65500-93002iDA110,FA110..DMP196903-200112

main65500-95219iDA110,FA100,110..BTR196903-197108

main65500-95220iDA115,FA115196903-197108

main65500-95221iDA116196903-197108

main65500-95222iFC100196903-197108

main65500-95223iDA110,FA100,110..BTR197108-198201

main65500-95224iDA115,FA115197108-198201

main65500-95225iDA116197108-198201

main65500-95226iFC100197108-197403

main65500-95227iDA110,FA100..BTR198201-200112

main65500-95228iDA115,FA115198201-200112

main65500-95229iDA116198201-200112

6553REAR BODY GUARD FRAME & TAIL GATE

→ Go to FIG 65-53

65550POST ASSY, SIDE PANEL FRONT END, RH

main65233-93001iDA110..DMP197704-200112

main65233-93002iFA100..DMP197704-198207

65560POST ASSY, SIDE PANEL FRONT END, LH

main65234-93001iDA110..DMP197704-200112

main65234-93002iFA100..DMP197704-198207

65570POST ASSY, SIDE PANEL REAR END, RH

main65231-93000iDA110..DMP197704-200112

main65232-93001iFA100..DMP197704-198207

65580POST ASSY, SIDE PANEL REAR END, LH

main65231-93001iFA100..DMP197704-198207

main65232-93000iDA110..DMP197704-200112

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-93001iFA100..DMP196903-198207

main65600-93002iDA110,FA110..DMP196903-200112

main65600-95218iDA110,FA100,110..BTR196903-197108

main65600-95219iDA115,FA115196903-197108

main65600-95220iDA116196903-197108

main65600-95221iFC100196903-197108

main65600-95222iDA110,FA100,110..BTR197108-198201

main65600-95223iDA115,FA115197108-198201

main65600-95224iDA116197108-198201

main65600-95225iFC100197108-197403

main65600-95226iDA110,FA100..BTR198201-200112

main65600-95227iDA115,FA115198201-200112

main65600-95228iDA116198201-200112

65613STRIP, SIDE GATE HINGE, INSIDE

main65513-95210×16iDA11#,FA100,11#,FC100..BTR196903-197403

66114WASHER, GATE HINGE PIN

main66134-93001×10iDA110,FA100,110..DMP196903-200112

66115PIN, GATE HINGE

main66113-95210×24iDA11#,FA100,11#,FC100..BTR196903-196912

main66119-95210×16iDA11#,FA100,115..BTR197404-200112

main66133-93000×10iDA110,FA100..DMP197507-197704

main66133-93001×10iDA110,FA100,110..DMP197108-197507

main90240-16108×24iDA11#,FA100,11#,FC100..BTR196912-197403

66120HINGE ASSY, SIDE GATE

main66130-93001×10iDA110,FA100,110..DMP196903-200112

66122HINGE, SIDE GATE, MALE

main66121-95210×16iDA11#,FA100,11#..BTR196903-198201

main66121-95212×10iFC100196903-197403

66151LATCH, SIDE GATE FEMALE, RH

main66105-95210iFC100196903-197403

main66151-95210iDA11#,FA100,11#..BTR196903-197108

main66151-95213iDA11#,FA100,11#..BTR197108-198201

66152LATCH, SIDE GATE FEMALE, LH

main66106-95210iFC100196903-197403

main66152-95210iDA11#,FA100,11#..BTR196903-197108

main66152-95213iDA11#,FA100,11#..BTR197108-198201

66153LATCH, TAIL GATE FEMALE, RH

main66153-95210iDA11#,FA100,11#,FC100..BTR196903-198201

66154LATCH, TAIL GATE FEMALE, LH

main66154-95210iDA11#,FA100,11#,FC100..BTR196903-198201

66314PROTECTOR, ROPE HOOK

main66314-95210×28iDA11#,FA100,11#,FC100196910-198201

main66314-95211×28iDA11#,FA100,115198201-200112

9017908083

main90179-08083

9020117362

main90201-17362

9281108052

main92811-08052

9281108053

main92811-08053

9281140850

main92811-40850

9538103022

main95381-03022

9538104035

main95381-04035

24 parts on this diagram · 2 diagrams in section
