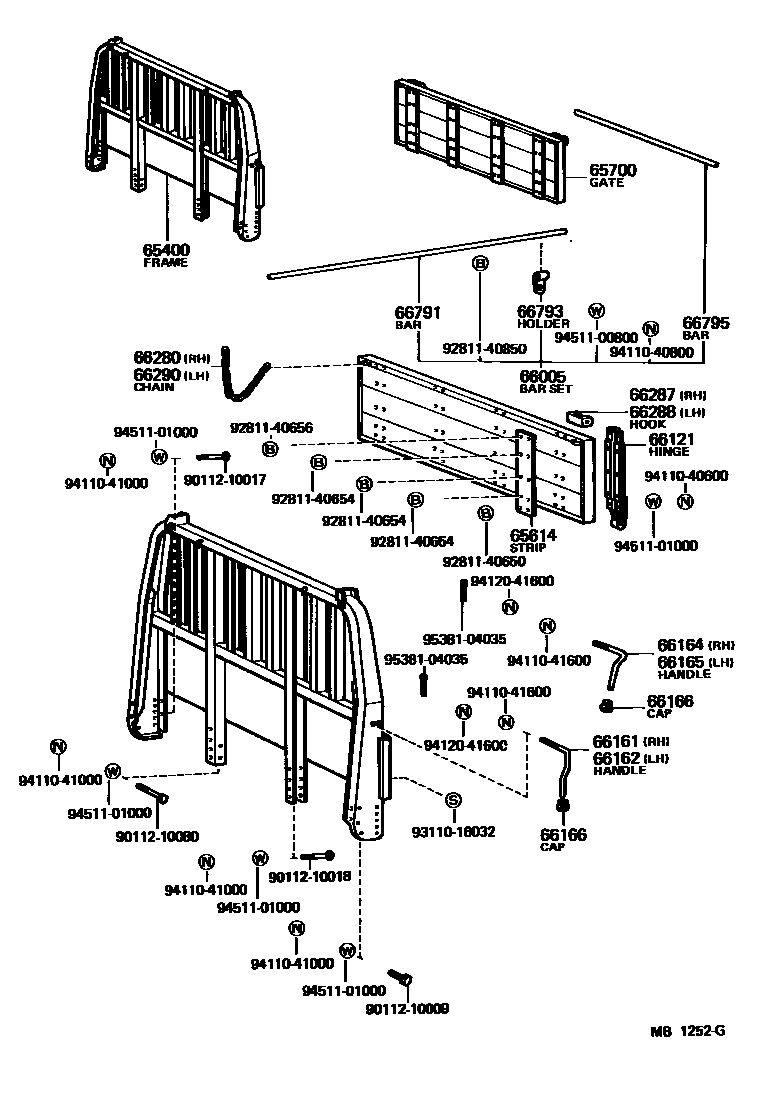

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65400FRAME ASSY, REAR BODY GUARD

main65400-95210iDA11#..BTR198401-200112

main65410-95219iFA100,11#..BTR196903-197108

main65410-95220iDA11#,FC100..BTR196903-197108

main65410-95222iFA100,11#..BTR197108-197403

main65410-95223iDA11#,FC100..BTR197108-197403

65614STRIP, TAIL GATE HINGE, INSIDE

main65753-95210×4iDA11#,FA100,11#,FC100..BTR196903-197403

65700GATE ASSY, REAR BODY TAIL

main65700-93001iFA100..DMP196903-198207

main65700-93002iDA110,FA110..DMP196903-200112

main65700-95216iDA11#,FA100,11#,FC100..BTR196903-198201

main65700-95217iDA11#,FA100,115..BTR198201-200112

66005BAR SET, GATE

main66005-95210iDA110,FA100,110..BTR196903-197403

main66005-95211iDA115,116,FA115196903-197403

66121HINGE, TAIL GATE, MALE

main66110-95212×4iDA11#,FA100,11#,FC100..BTR196903-200112

66161HANDLE, SIDE GATE LATCH, RH

main66150-93001×2iDA110,FA100,110..DMP196903-200112

main66161-95210iDA11#,FA100,11#,FC100..BTR196903-197108

main66161-95211iDA11#,FA100,11#,FC100..BTR197108-198201

66162HANDLE, SIDE GATE LATCH, LH

main66160-93001×2iDA110,FA100,110..DMP196903-200112

main66162-95210iDA11#,FA100,11#,FC100..BTR196903-197108

main66162-95211iDA11#,FA100,11#,FC100..BTR197108-198201

66164HANDLE, TAIL GATE LATCH, RH

main66110-93000iDA110,FA100,110..DMP196903-200112

main66163-95210iDA11#,FA100,11#,FC100..BTR196903-198201

66165HANDLE, TAIL GATE LATCH, LH

main66120-93000iDA110,FA100,110..DMP196903-200112

main66164-95210iDA11#,FA100,11#,FC100..BTR196903-198201

66166CAP, GATE LATCH HANDLE

main66165-95210×4iDA11#,FA100,11#,FC100..BTR196903-198201

66280CHAIN ASSY, TAIL GATE, RH

main66280-95210iDA11#,FA100,11#,FC100..BTR196903-200112

main66282-93000iDA110,FA100,110..DMP196903-197704

main66282-93001×2iDA110,FA100..DMP197704-200112

66287HOOK, TAIL GATE CHAIN, RH

main66171-95210iDA11#,FA100,11#,FC100..BTR196903-200112

66288HOOK, TAIL GATE CHAIN, LH

main66171-95210iDA11#,FA100,11#,FC100..BTR196903-200112

66290CHAIN ASSY, TAIL GATE, LH

main66280-95210iDA11#,FA100,11#,FC100..BTR196903-200112

main66282-93000iDA110,FA100,110..DMP196903-197704

main66282-93001iDA110,FA100..DMP197704-200112

66791BAR, SIDE GATE

main66791-95210iDA110,FA100,110..BTR196903-196912

main66791-95211iDA115,116,FA115196903-196912

66793HOLDER, SIDE GATE BAR

main66793-95210×14iDA11#,FA100,11#..BTR196903-196912

66795BAR, TAIL GATE

main66795-95210iDA11#,FA100,11#,FC100..BTR196903-200112

9011210009

main90112-10009

9011210017

main90112-10017

9011210018

main90112-10018

9011210080

main90112-10080

9281140650

main92811-40650

9281140654

main92811-40654

9281140656

main92811-40656

9281140850

main92811-40850

9311016032

main93110-16032

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9411041600

main94110-41600

9412041600

main94120-41600

9451100800

main94511-00800

9451101000

main94511-01000

9538104035

main95381-04035

34 parts on this diagram · 2 diagrams in section
