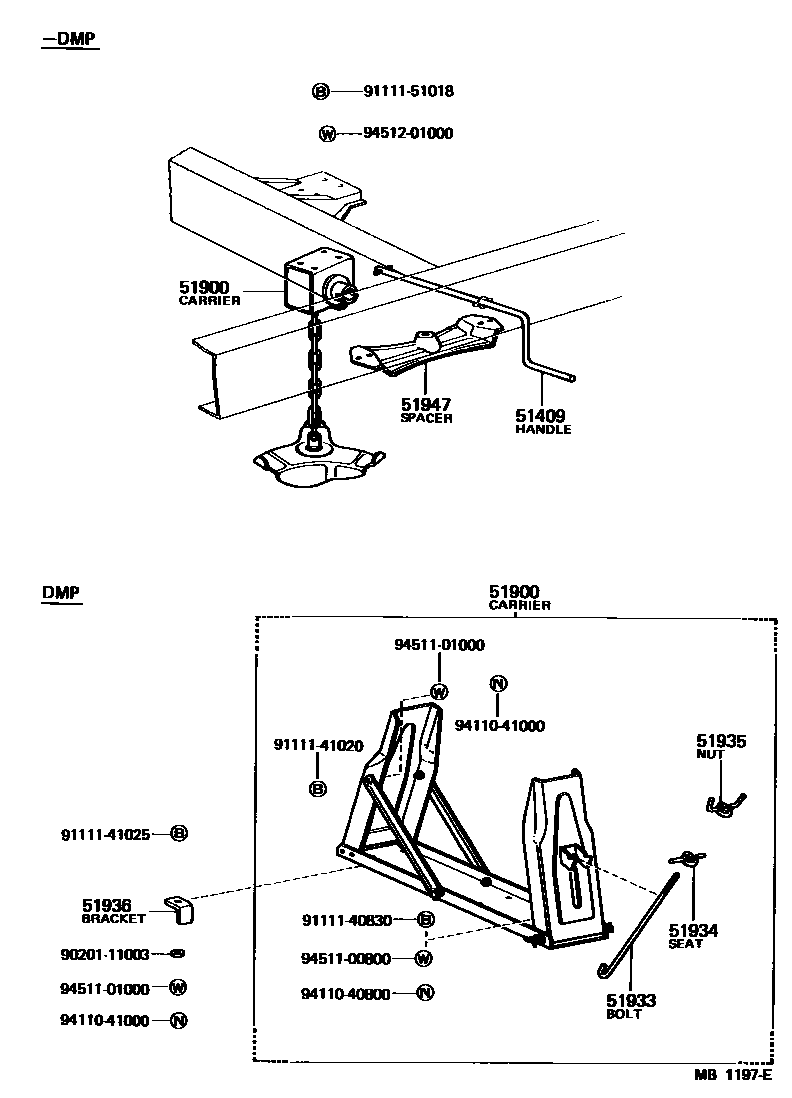

SPARE WHEEL CARRIER

51409HANDLE SUB-ASSY, SPARE WHEEL CARRIER

main51409-55030iDA11#,DB105,FA100,115197404-200112

main51409-66010iDA116,FC100196903-197403

51900CARRIER ASSY, SPARE WHEEL

main51900-55010iDA11#,FA100,11#..BTR196903-197001

main51900-55011iDA11#,FA100,11#..BTR197001-200112

main51900-55020iFC100196903-197001

main51900-55021iFC100197001-197403

main51930-93001iDA110,FA100,110..DMP196903-197301

8.25 TIRE

main51930-93002iFA100..DMP197301-197704

8.25 TIRE

main51930-93003iFA100..DMP197704-198207

8.25 TIRE

main51930-93010iDA110,FA100,110..DMP196903-197704

9.00 TIRE

main51930-93011iDA110,FA100..DMP197704-197708

9.00 TIRE

main51930-93012iDA110,FA100..DMP197708-200112

9.00 TIRE

main51940-93000iDA110,FA100,110..DMP196903-200112

7.50 TIRE

51933BOLT, SPARE WHEEL CARRIER EYE

main51933-93001iDA110,FA100,110..DMP196903-200112

7.50,8.25 TIRE

main51933-93010iDA110,FA100,110..DMP196903-200112

9.00 TIRE

51934SEAT, EYE BOLT CLAMP

main51934-93001iDA110,FA100,110..DMP196903-200112

51935NUT, SPARE WHEEL CARRIER EYE

main51935-93001iDA110,FA100,110..DMP196903-200112

51936BRACKET, SPARE WHEEL CARRIER

main51936-93000iDA110,FA100,110..DMP196903-200112

51947SPACER, SPARE WHEEL

main51947-55010×2iDA11#,FA100,11#,FC100..BTR197001-197806

main51947-55011×2iDA11#,FA100,115..BTR197806-200112

9020111003

main90201-11003

9111140830

main91111-40830

9111141020

main91111-41020

9111141025

main91111-41025

9111151018

main91111-51018

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451101000

main94511-01000

9451201000

main94512-01000

17 parts on this diagram · 1 diagram in section
