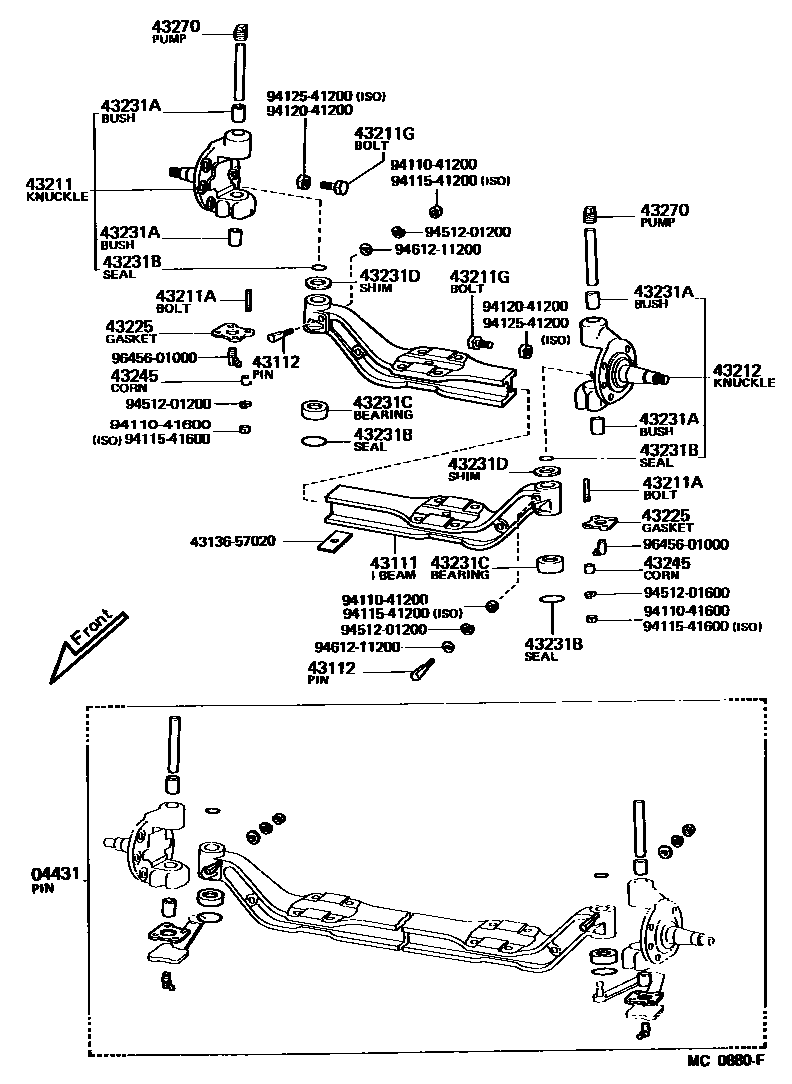

FRONT AXLE ARM & STEERING KNUCKLE

04431PIN KIT, STEERING KNUCKLE KING

main04431-55051iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

43111I BEAM, FRONT AXLE

main43105-55010iDB10#196903-197703

main43105-55022iFB100196903-197105

sub43105-57022

main43111-55030iDA11#,FA100,11#,FC100196903-197704

main43111-55031iDA11#,FA100,115197704-200112

43112PIN, KING PIN LOCK

main43112-55020×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-196908

sub94115-41200

main43112-55021×2iDA11#,DB10#,FA100,11#,FB100,FC100196908-200112

43211KNUCKLE, STEERING, RH

main43201-55030iDA11#,FA100,11#,FC100196903-196908

sub94125-41200

main43201-55031iDA11#,FA100,11#,FC100196908-197203

main43201-56010iDB10#,FB100196903-196908

sub94125-41200

main43201-56011iDB10#,FB100196908-197202

43211ABOLT, STUD (FOR STEERING SET)

main90116-16053×8iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

43211GBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)

main90106-12013×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-196908

main90106-12022×2iDA11#,DB10#,FA100,11#,FB100,FC100196908-200112

ISO

43212KNUCKLE, STEERING, LH

main43202-55020iDA11#,FA100,11#,FC100196903-196908

sub94125-41200

main43202-55021iDA11#,FA100,11#,FC100196908-197203

main43202-56010iDB10#,FB100196903-196908

sub94125-41200

main43202-56011iDB10#,FB100196908-197202

43225GASKET, STEERING KNUCKLE ARM

main43225-55010×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-71033×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

LWR

main90999-71034×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

UPR

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90301-39065×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197104

UPR

main90301-59044×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

LWR

main96710-03040×2iDA11#,DB10#,FA100,11#,FB100,FC100197104-198110

UPR

main96711-35040×2iDA11#,FA100,115198110-200112

UPR

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-40005×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

43231DSHIM (FOR KING PIN)

main90560-40115×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.10

main90560-40116×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.20

main90560-40117×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.30

main90560-40118×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.40

main90560-40119×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.50

main90560-40120×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.60

main90560-40121×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.05

main90560-40122×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.15

main90560-40123×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.25

main90560-40124×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.35

main90560-40125×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.45

main90560-40126×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.55

main90560-40136×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

T=2.00

43245CORN, STEERING KNUCKLE ARM SCREW

main43245-55010×8iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

ID=16.2

43270PUMP ASSY, STEERING KNUCKLE GREASE

main43270-55010×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

4313657020SPACER, FRONT SPRING

main43136-57020

9411041200

main94110-41200

9411041600

main94110-41600

9411541200

main94115-41200

9411541600

main94115-41600

9412041200

main94120-41200

9412541200

main94125-41200

9451201200

main94512-01200

9451201600

main94512-01600

9461211200

main94612-11200

9645601000

main96456-01000

25 parts on this diagram · 1 diagram in section
