Toyota HEAVY DUTY TRUCK — BRAKE TUBE & CLAMP

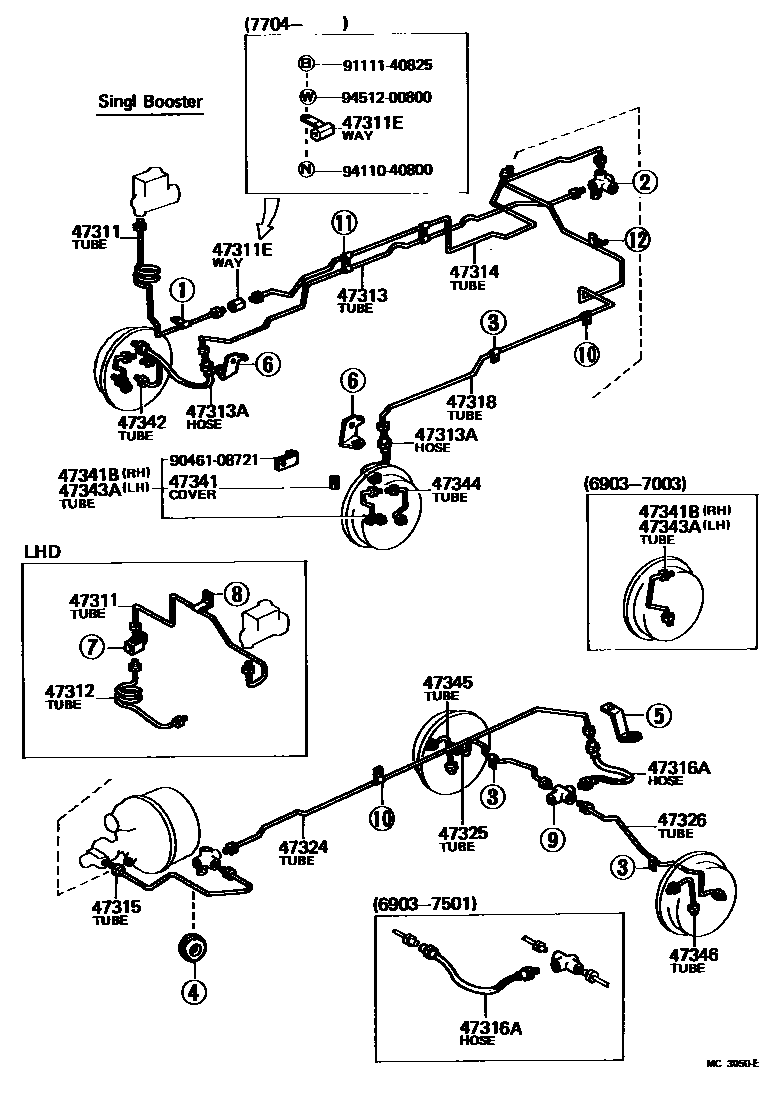

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

47311EUNION, NO.1(FOR FRONT BRAKE TUBE)

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47314TUBE, FRONT BRAKE, NO.4

47315TUBE, FRONT BRAKE, NO.5

47316TUBE, FRONT BRAKE, NO.6

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318TUBE, FRONT BRAKE, NO.8

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

47341COVER, TUBE

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

47345TUBE, WHEEL CYLINDER, REAR RH

47346TUBE, WHEEL CYLINDER, REAR LH

9046108721

9111140825

9411040800

9451200800

24 parts on this diagram · 16 diagrams in section

BRAKE TUBE & CLAMP for Toyota HEAVY DUTY TRUCK

This section contains 127 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota HEAVY DUTY TRUCK. Key components include: TUBE, RESERVOIR, NO.1, HOSE(FOR RESERVOIR NO.1 TUBE), CLAMP(FOR RESERVOIR NO.1 TUBE), TUBE, BRAKE RESERVOIR, NO.2, WAY(FOR BRAKE RESERVOIR TUBE).
