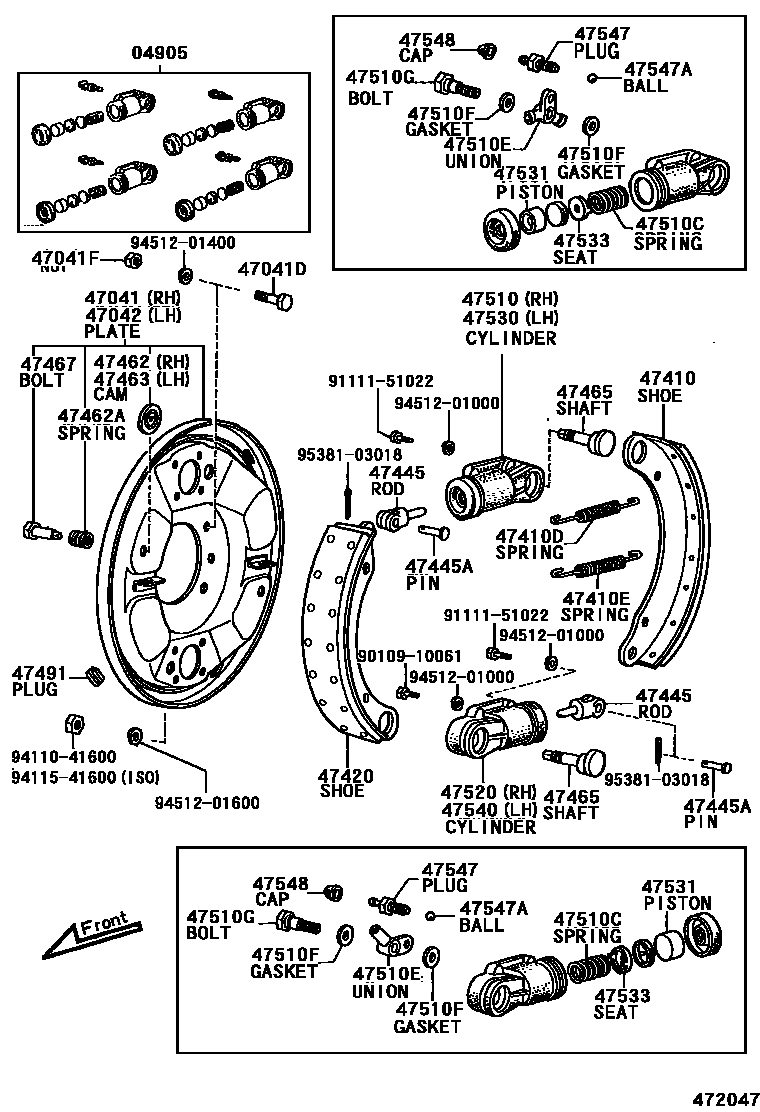

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-55031iDA11#,FA100,11#,FB100,FC100196903-197003

main04905-55034iDA11#,FA100,115197704-198205

main04905-55035iDA11#,FA100,115198205-200112

main04905-55040iDA11#,FA100,11#,FB100197003-197302

main04905-55042iDA11#197704-197806

W/AIR SERVO BRAKE

main04905-55050iDA11#197806-200112

W/AIR SERVO OR AIR OVER BRAKE

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-55020iDA11#,FA100,115197704-198202

sub94125-41200

sub94511-01200

main47041-55021iDA11#,FA100,115198202-200112

main47050-55020iFC100197003-197102

main47050-55021iFC100197102-197403

main47050-55040iDA11#,DB10#,FA100,11#,FB100197003-197704

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-14001×12iDA11#,FA100,115197704-200112

main91112-51436×12iDA11#,DB10#,FA100,11#,FB100,FC100196903-197104

sub91111-51436

main91112-71435×12iDA11#,DB10#,FA100,11#,FB100,FC100197104-197704

sub91112-81435

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90170-14002×12iDA11#,FA100,115197704-200112

main94115-41400×12iDA11#,DB10#,FA100,11#,FB100,FC100196903-197104

main94115-51400×12iDA11#,DB10#,FA100,11#,FB100,FC100197104-197704

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-55010iDA11#,DB10#,FA100,11#,FB100197003-198202

sub94125-41200

sub94511-01200

main47042-55011iDA11#,FA100,115198202-200112

main47060-55010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main47060-55011iFC100197102-197403

47410SHOE ASSY, FRONT BRAKE(FOR FRONT OR UPPER SIDE)

main47410-55030×2iDA11#,DB10#,FA100,11#,FB100197003-197102

main47410-55031×2iDA11#,DB10#,FA100,11#,FB100197102-198002

sub47410-55034

main47410-55032×2iDA11#,FA100,115198002-199504

sub47410-55035

main47410-55033×2iDA11#199504-200112

main47410-56011×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main47410-56012×2iFC100197108-197403

sub47410-56013

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29304×2iDA11#,DB10#,FA100,11#,FB100197003-198002

main90507-29001×2iDA11#,FA100,115198002-200112

main90507-32002×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29304×2iDA11#,DB10#,FA100,11#,FB100197003-198002

main90507-29001×2iDA11#,FA100,115198002-200112

main90507-32002×2iFC100197003-197403

47420SHOE ASSY, FRONT BRAKE(FOR REAR OR LOWER SIDE)

main47410-55030×2iDA11#,DB10#,FA100,11#,FB100197003-197102

main47410-55031×2iDA11#,DB10#,FA100,11#,FB100197102-198002

sub47410-55034

main47410-55032×2iDA11#,FA100,115198002-199504

sub47410-55035

main47410-55033×2iDA11#199504-200112

main47410-56011×2iFC100197003-197108

main47410-56012×2iFC100197108-197403

sub47410-56013

47445ROD, WHEEL CYLINDER

main47445-56010×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47445APIN, WHEEL CYLINDER ROD

main90240-11057×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47462CAM, FRONT BRAKE SHOE ADJUSTING, RH

main47464-55020×2iDA11#,DB10#,FA100,11#,FB100197003-200112

main47464-56010×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47462ASPRING, FRONT BRAKE SHOE ADJUSTING CAM

main90501-55183×4iFC100197003-197403

main90501-60580×4iDA11#,DB10#,FA100,11#,FB100197003-200112

47463CAM, FRONT BRAKE SHOE ADJUSTING, LH

main47465-55020×2iDA11#,DB10#,FA100,11#,FB100197003-200112

main47465-56010×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47465SHAFT, FRONT BRAKE SHOE ADJUSTING

main47466-55041×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47467BOLT, FRONT BRAKE SHOE ADJUSTING CAM

main47467-55010×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20010×9iDA11#,DB10#,FA100,11#,FB100197003-200112

sub47491-20011

main47491-55010×9iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-55030iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

sub47510-55032

main47510-55031iFC100197102-197403

sub47510-55032

main47510-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47510-55042iDA11#,DB10#,FA100,11#197302-198205

main47510-55043iDA11#,FA100,115198205-200112

main47510-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47510-55051iDA11#..GEN197806-200112

W/AIR SERVO OR AIR OVER BRAKE

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-10759×4iDA11#197704-197806

W/AIR SERVO BRAKE

main90501-12159×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main90502-09059×4iDA11#,DB10#,FA100,11#197302-198205

sub04499-25010

main90502-10038×4iDA11#,DB10#,FA100,11#,FB100197003-197302

sub04499-36020

sub04499-55020

main90502-12001×4iDA11#,FA100,115..GEN198205-200112

47510EUNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90405-10062iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

UPR,RH

main90405-10063iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

UPR,LH

main90405-10066×2iFC100197003-197102

LWR

main90405-10131×2iFC100197102-197403

LWR

main90405-10132iFC100197102-197403

UPR,RH

47510FGASKET(FOR FRONT WHEEL BRAKE CYLINDER)

main90430-12110×4iFC100197003-197403

ID=12.1,OD=20.5

main90430-15112×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

ID=15.1,OD=20.5

47510GBOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90401-12030×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47510-55042iDA11#,DB10#,FA100,11#197302-198205

main47510-55043iDA11#,FA100,115198205-200112

main47510-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47510-55051iDA11#..GEN197806-200112

W/AIR SERVO OR AIR OVER BRAKE

main47520-55020iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

sub47520-59015

main47520-55021iFC100197102-197403

sub47520-55022

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-55030iFC100197003-197102

sub47530-55032

main47530-55031iFC100197102-197403

sub47530-55032

main47530-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47530-55042iDA11#,DB10#,FA100,11#197302-198205

main47530-55043iDA11#,FA100,115..GEN198205-200112

main47530-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47530-55051iDA11#197806-200112

W/AIR SERVO OR AIR OVER BRAKE

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-55020×4iFC100197003-197403

main47531-55051×4iDA11#,DB10#,FA100,11#,FB100197003-197302

main47531-55052×4iDA11#,DB10#,FA100,11#197302-198205

main47531-55053×4iDA11#,FA100,115..GEN198205-200112

main47531-55070×4iDA11#197704-197806

W/AIR SERVO BRAKE

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-36011×4iDA11#197704-197806

W/AIR SERVO BRAKE

main47533-36020×4iDA11#,DB10#,FA100,11#197302-198205

sub04499-25010

main47533-55020×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main47537-37010×4iDA11#,DB10#,FA100,11#,FB100197003-197302

sub04499-36020

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47530-55042iDA11#,DB10#,FA100,11#197302-198205

main47530-55043iDA11#,FA100,115..GEN198205-200112

main47530-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47530-55051iDA11#197806-200112

W/AIR SERVO OR AIR OVER BRAKE

main47540-55020iFC100197003-197102

sub47540-59015

main47540-55021iFC100197102-197403

sub47540-55022

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-37010×4iDA11#,DB10#,FA100,11#,FB100197003-200112

main47547-55020×4iFC100197003-197403

47547ABALL, BLEEDER PLUG(FOR REAR DRUM BRAKE)

main90360-08009×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×4iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main47548-37010×4iDA11#,DB10#,FA100,11#,FB100197003-200112

9010910061

main90109-10061

9111151022

main91111-51022

9411041600

main94110-41600

9411541600

main94115-41600

9451201000

main94512-01000

9451201400

main94512-01400

9451201600

main94512-01600

9538103018

main95381-03018

38 parts on this diagram · 3 diagrams in section
