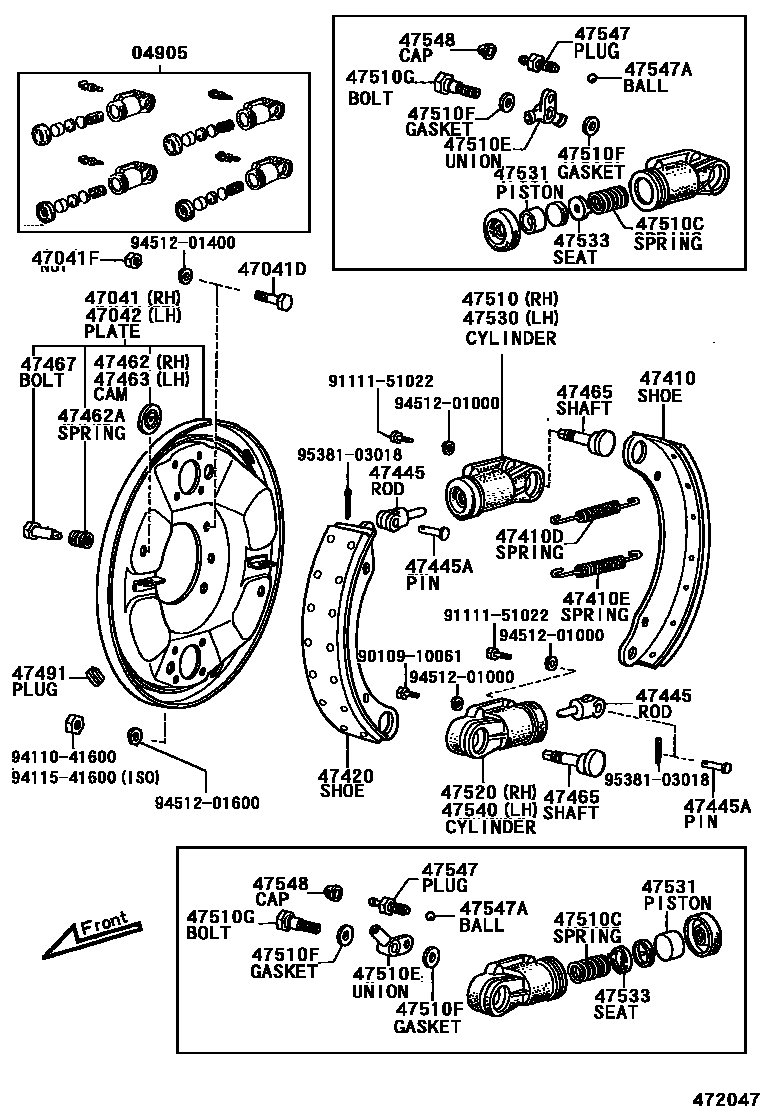

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-55031iDA11#,FA100,11#,FB100,FC100196903-197403

main04905-55034iDA11#,FA100,115197302-198205

main04905-55035iDA11#,FA100,115198205-200112

main04905-55040iDA11#,FA100,11#,FB100197003-197302

main04905-55042iDA11#197704-197806

W/AIR SERVO BRAKE

main04905-55050iDA11#197806-200112

W/AIR SERVO OR AIR OVER BRAKE

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-55020iDA11#,FA100,115197704-198202

main47041-55021iDA11#,FA100,115198202-200112

main47050-55020iFC100196903-197102

main47050-55021iFC100197102-197403

main47050-55040iDA11#,DB10#,FA100,11#,FB100197003-197704

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-14001iDA11#,FA100,115197704-200112

main91112-51436iDA11#,DB10#,FA100,11#,FB100,FC100196903-197104

main91112-71435iDA11#,DB10#,FA100,11#,FB100,FC100197104-197704

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90170-14002iDA11#,FA100,115197704-200112

main94115-41400iDA11#,DB10#,FA100,11#,FB100,FC100196903-197104

main94115-51400iDA11#,DB10#,FA100,11#,FB100,FC100197104-197704

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-55010iDA11#,DB10#,FA100,11#,FB100197003-198202

main47042-55011iDA11#,FA100,115198202-200112

main47060-55010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197102

main47060-55011iFC100197102-197403

47410SHOE ASSY, FRONT BRAKE(FOR FRONT OR UPPER SIDE)

main47410-55030iDA11#,DB10#,FA100,11#,FB100197003-197102

main47410-55031iDA11#,DB10#,FA100,11#,FB100197102-198002

main47410-55032iDA11#,FA100,115198002-199504

main47410-55033iDA11#199504-200112

main47410-56011iDA11#,DB10#,FA100,11#,FB100,FC100196903-197108

main47410-56012iFC100197108-197403

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29304iDA11#,DB10#,FA100,11#,FB100197003-198002

main90507-29001iDA11#,FA100,115198002-200112

main90507-32002iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29304iDA11#,DB10#,FA100,11#,FB100197003-198002

main90507-29001iDA11#,FA100,115198002-200112

main90507-32002iFC100196903-197403

47420SHOE ASSY, FRONT BRAKE(FOR REAR OR LOWER SIDE)

main47410-55030iDA11#,DB10#,FA100,11#,FB100197003-197102

main47410-55031iDA11#,DB10#,FA100,11#,FB100197102-198002

main47410-55032iDA11#,FA100,115198002-199504

main47410-55033iDA11#199504-200112

main47410-56011iFC100196903-197108

main47410-56012iFC100197108-197403

47445ROD, WHEEL CYLINDER

main47445-56010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47445APIN, WHEEL CYLINDER ROD

main90240-11057iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47462CAM, FRONT BRAKE SHOE ADJUSTING, RH

main47464-55020iDA11#,DB10#,FA100,11#,FB100197003-200112

main47464-56010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47462ASPRING, FRONT BRAKE SHOE ADJUSTING CAM

main90501-55183iFC100196903-197403

main90501-60580iDA11#,DB10#,FA100,11#,FB100197003-200112

47463CAM, FRONT BRAKE SHOE ADJUSTING, LH

main47465-55020iDA11#,DB10#,FA100,11#,FB100197003-200112

main47465-56010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47465SHAFT, FRONT BRAKE SHOE ADJUSTING

main47466-55041iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47467BOLT, FRONT BRAKE SHOE ADJUSTING CAM

main47467-55010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20010iDA11#,DB10#,FA100,11#,FB100197003-200112

main47491-55010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-55030iDA11#,DB10#,FA100,11#,FB100,FC100196903-197102

main47510-55031iFC100197102-197403

main47510-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47510-55042iDA11#,DB10#,FA100,11#197302-198205

main47510-55043iDA11#,FA100,115198205-200112

main47510-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47510-55051iDA11#..GEN197806-200112

W/AIR SERVO OR AIR OVER BRAKE

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-10759iDA11#197704-197806

W/AIR SERVO BRAKE

main90501-12159iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

main90502-09059iDA11#,DB10#,FA100,11#197302-198205

main90502-10038iDA11#,DB10#,FA100,11#,FB100197003-197302

main90502-12001iDA11#,FA100,115..GEN198205-200112

47510EUNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90405-10062iDA11#,DB10#,FA100,11#,FB100,FC100196903-197102

UPR,RH

main90405-10063iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

UPR,LH

main90405-10066iFC100196903-197102

LWR

main90405-10131iFC100197102-197403

LWR

main90405-10132iFC100197102-197403

UPR,RH

47510FGASKET(FOR FRONT WHEEL BRAKE CYLINDER)

main90430-12110iFC100196903-197403

ID=12.1,OD=20.5

main90430-15112iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

ID=15.1,OD=20.5

47510GBOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90401-12030iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47510-55042iDA11#,DB10#,FA100,11#197302-198205

main47510-55043iDA11#,FA100,115198205-200112

main47510-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47510-55051iDA11#..GEN197806-200112

W/AIR SERVO OR AIR OVER BRAKE

main47520-55020iDA11#,DB10#,FA100,11#,FB100,FC100196903-197102

main47520-55021iFC100197102-197403

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-55030iFC100196903-197102

main47530-55031iFC100197102-197403

main47530-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47530-55042iDA11#,DB10#,FA100,11#197302-198205

main47530-55043iDA11#,FA100,115..GEN198205-200112

main47530-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47530-55051iDA11#197806-200112

W/AIR SERVO OR AIR OVER BRAKE

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-55020iFC100196903-197403

main47531-55051iDA11#,DB10#,FA100,11#,FB100197003-197302

main47531-55052iDA11#,DB10#,FA100,11#197302-198205

main47531-55053iDA11#,FA100,115..GEN198205-200112

main47531-55070iDA11#197704-197806

W/AIR SERVO BRAKE

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-36011iDA11#197704-197806

W/AIR SERVO BRAKE

main47533-36020iDA11#,DB10#,FA100,11#197302-198205

main47533-55020iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

main47537-37010iDA11#,DB10#,FA100,11#,FB100197003-197302

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-55041iDA11#,DB10#,FA100,11#,FB100197003-197302

main47530-55042iDA11#,DB10#,FA100,11#197302-198205

main47530-55043iDA11#,FA100,115..GEN198205-200112

main47530-55050iDA11#197704-197806

W/AIR SERVO BRAKE

main47530-55051iDA11#197806-200112

W/AIR SERVO OR AIR OVER BRAKE

main47540-55020iFC100196903-197102

main47540-55021iFC100197102-197403

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-37010iDA11#,DB10#,FA100,11#,FB100197003-200112

main47547-55020iFC100196903-197403

47547ABALL, BLEEDER PLUG(FOR REAR DRUM BRAKE)

main90360-08009iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

main47548-37010iDA11#,DB10#,FA100,11#,FB100197003-200112

9010910061

main90109-10061

9111151022

main91111-51022

9411041600

main94110-41600

9411541600

main94115-41600

9451201000

main94512-01000

9451201400

main94512-01400

9451201600

main94512-01600

9538103018

main95381-03018

38 parts on this diagram · 3 diagrams in section
