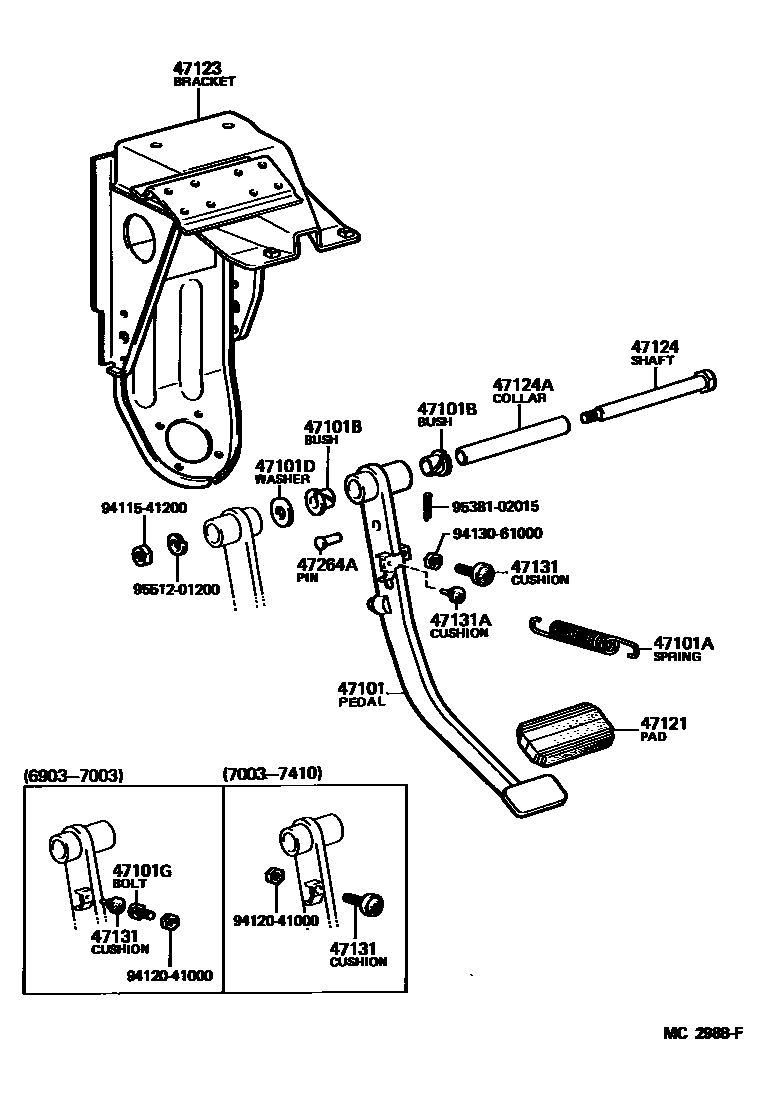

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47102-96519iDB10#..LHD196903-197003

main47111-55051iDA11#,FA100,11#,FC100..RHD196903-197003

main47111-55052iDA11#,FA100,11#,FC100..RHD197003-197410

main47111-55053iDA11#,FA100,115..RHD197410-198002

main47111-55054iDA11#,FA100,115..RHD..GEN198002-200112

main47111-55061iDA11#,FA100,11#,FC100..LHD196903-197003

main47111-55062iDA11#,FA100,11#,FC100..LHD197003-197410

main47111-55063iDA11#,FA100,115..LHD197410-198002

main47111-55064iDA11#,FA100,115..LHD198002-200112

main47111-96521iDB10#..RHD196903-197003

main47111-96524iDB10#..RHD197003-197703

main47111-96525iDB10#..LHD197003-197703

47101ASPRING(FOR BRAKE PEDAL RETURN)

main31319-96519iDB10#196903-197203

main90506-20036iDA11#198002-200112

W/AIR OVER BRAKE

main90506-23405iDB10#197203-197703

main90506-26033iDA11#,FA100,11#,FB100,FC100..GEN196903-200112

47101BBUSH(FOR BRAKE PEDAL)

main90386-20037×2iDA11#,DB10#,FA100,11#,FC100196903-200112

47101DWASHER(FOR PEDAL SHAFT)

main47134-96518×3iDB10#196903-197203

T=0.5

main47135-96518×3iDB10#196903-197203

T=1.0

main90564-20170×3iDB10#197203-197703

T=0.5

main90564-20171×3iDB10#197203-197703

T=1.0

main94612-12000iDA11#,FA100,11#,FC100196903-200112

47101GBOLT, BRAKE PEDAL STOP, NO.1

main31328-96518iDB10#196903-197003

main90050-80030iDA11#,FA100,11#,FC100196903-197003

47121PAD, BRAKE PEDAL

main31321-35010iDB10#196903-197703

main47121-55010iDA11#,FA100,11#,FC100..GEN196903-200112

47123BRACKET, BRAKE PEDAL

main55160-95210iDA11#,FA100,115..RHD197704-198002

main55160-95211iDA11#,FA100,115..LHD197704-198002

main55160-95219iDA11#,FA100,115..RHD198002-200112

main55160-95220iDA11#,FA100,115..LHD198002-200112

main55160-95221iDA11#..RHD198002-200112

W/AIR OVER BRAKE

main55160-95222iDA11#..LHD198002-200112

W/AIR OVER BRAKE

main55160-96519iDB10#196903-197403

47124SHAFT, BRAKE PEDAL

main31324-55041iDA11#,FA100,11#,FC100196903-196908

main31324-55042iDA11#,FA100,11#,FC100196908-200112

main31324-96518iDB10#196903-196908

main31324-96519iDB10#196908-197703

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47131-96518iDB10#196903-197703

main90440-20016iDA11#,FA100,11#,FC100196903-200112

47131CUSHION(FOR STOP LAMP SWITCH)

main47131-55011iDA11#,DB10#,FA100,11#,FC100197003-200112

main90541-06008iDA11#,DB10#,FA100,11#,FC100196903-197003

47131ACUSHION(FOR BRAKE PADAL STOPPER)

main90541-06008iDA11#,FA100,115197410-200112

47264APIN(FOR PUSH ROD)

main47129-57010iFB100196903-197105

main90240-10027iDB10#;DA11#,FA100,11#,FC100..RHD196903-197403

main90240-10042iDA11#,FA100,11#,FC100..LHD196903-197403

9411541200

main94115-41200

9412041000

main94120-41000

9413061000

main94130-61000

9538102015

main95381-02015

9551201200

main95512-01200
