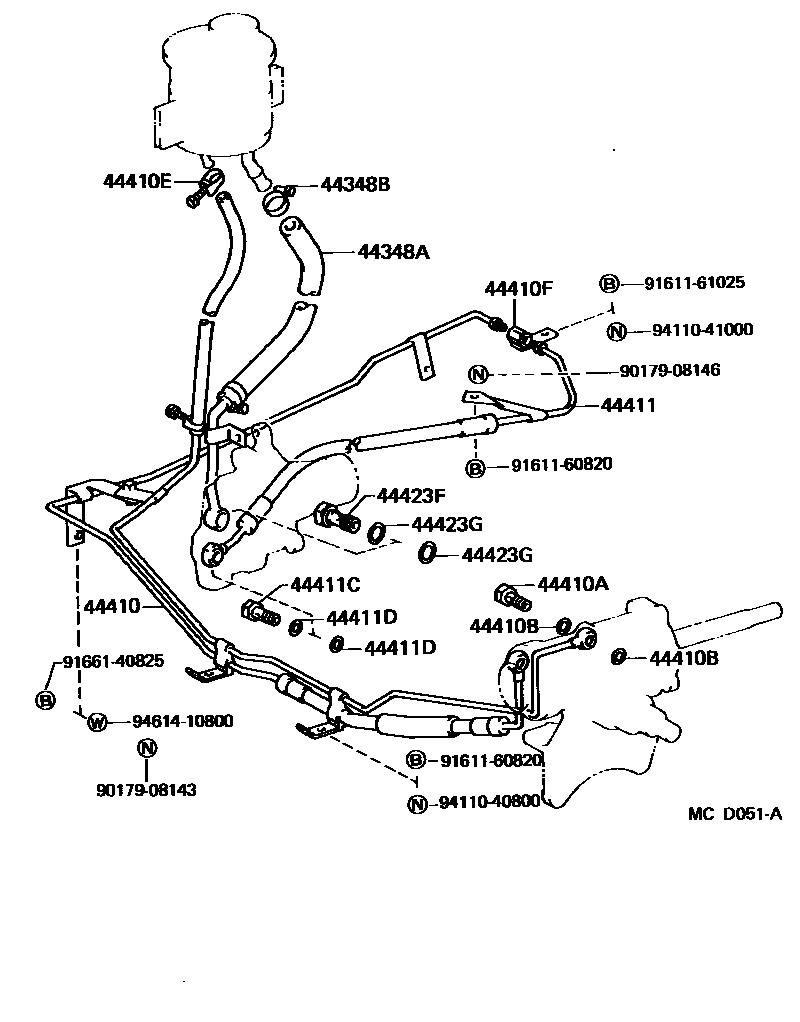

POWER STEERING TUBE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-55010iDA11#..LHD198511-200112

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iDA11#..LHD198511-200112

44410TUBE ASSY, PRESSURE FEED

main44410-55010iDA11#..LHD198511-200112

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-14003×2iDA11#..LHD198511-200112

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-14235×4iDA11#..LHD198511-200112

44410ECLAMP(FOR PRESSURE FEED TUBE)

main90460-01001iDA11#..LHD198511-200112

44410FWAY, 2(FOR PRESSURE FEED TUBE)

main90412-16001iDA11#..LHD198511-200112

44411HOSE, PRESSURE FEED

main44411-55010iDA11#..LHD198511-200112

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16004iDA11#..LHD198511-200112

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16168×2iDA11#..LHD198511-200112

44423FBOLT, UNION

main90401-22003iDA11#..LHD198511-200112

44423GGASKET, UNION BOLT

main90430-22001×2iDA11#..LHD198511-200112

9017908143

main90179-08143

9017908146

main90179-08146

9161160820

main91611-60820

9161161025

main91611-61025

9166140825

main91661-40825

9411040800

main94110-40800

9411041000

main94110-41000

9461410800

main94614-10800

20 parts on this diagram · 1 diagram in section
