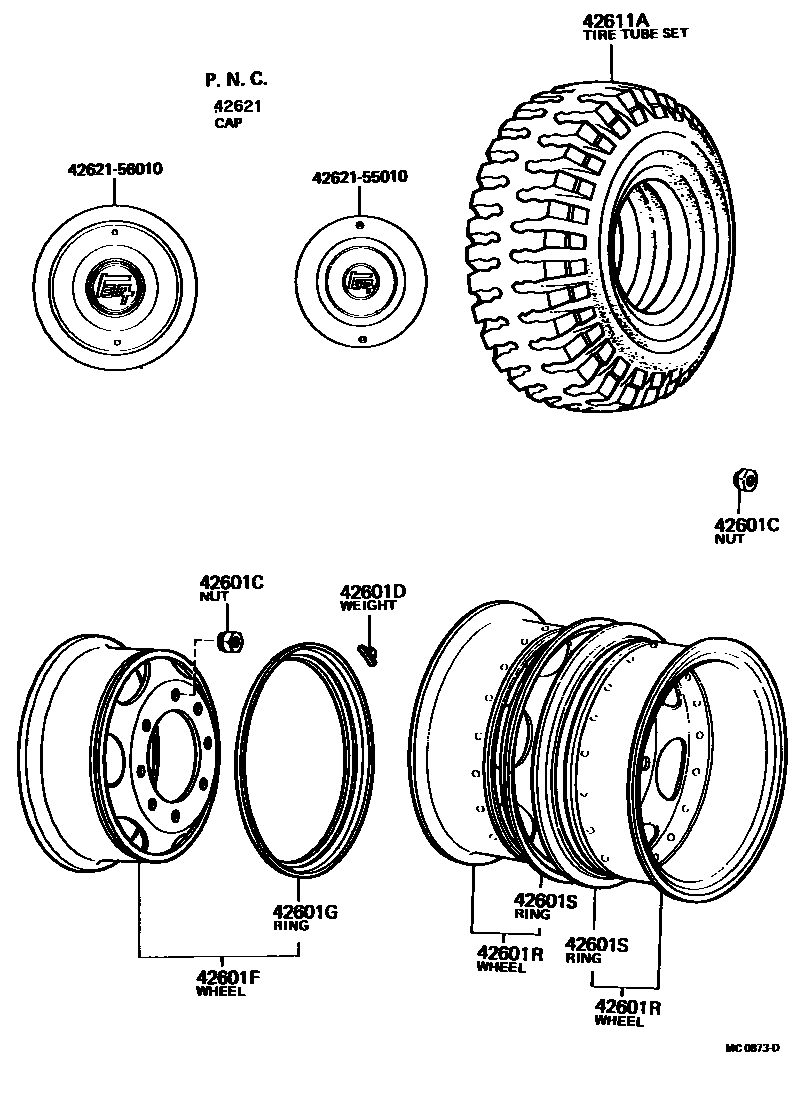

DISC WHEEL & WHEEL CAP

42601CNUT, HUB (FOR AXLE)

main42633-55020×8iDA11#,DB10#,FA100,11#,FB100,FC100196903-196911

RR,RH

main42633-55021×8iDA11#,DB10#,FA100,11#,FB100,FC100196911-197403

RR,RH

main42633-55030×8iDA11#,DB105,FA100,115197404-200112

RR,RH

main42634-55020×8iDA11#,DB10#,FA100,11#,FB100,FC100196903-196911

RR,LH

main42634-55021×8iDA11#,DB10#,FA100,11#,FB100,FC100196911-197403

RR,LH

main42634-55030×8iDA11#,DB105,FA100,115197404-200112

RR,LH

main90942-01002×8iDA11#,DB10#,FA100,11#,FB100,FC100196903-196911

FR,RH

main90942-01003×5iFC100196911-197403

FR,LH

main90942-01018×8iDA11#,DB10#,FA100,11#,FB100196911-197403

FR,RH

main90942-01019×8iDA11#,DB10#,FA100,11#,FB100196911-197403

FR,LH

main90942-01023×8iDA11#,DB105,FA100,115197404-200112

FR,RH

main90942-01024×8iDA11#,DB105,FA100,115197404-200112

FR,LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03042iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

300G

main90942-03043iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

200G

main90942-03044iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

100G

main90942-03046iFC100196903-197009

75G

main90942-03048iFC100196903-197009

150G

42601FWHEEL, DISC (FOR FRONT)

main42610-55010×2iFC100196903-197010

main42610-55011×2iFC100197010-197403

main42610-55020×2iFA100196903-197003

T=9,W/7.50-20 TIRE

main42610-55060×2iDA11#,FA100196903-197403

T=10,W/7.50-20 TIRE

main42610-55070×2iDA11#,FA11#196903-197403

T=11,W/8.25 OR 9.00-20 TIRE

main42610-55090×2iDA11#,DB105,FA100,115197404-200112

T=10,W/8.25 OR 9.00-20 TIRE

42601GRING, DISC WHEEL SIDE (FOR FRONT)

main42613-55010×2iFC100196903-197010

main42613-55020×2iFA100196903-197003

W/7.50-20 TIRE

main42613-55030×2iDA11#,DB10#,FA100,11#,FB100196903-200112

W/8.25 OR 9.00-20 TIRE

42601RWHEEL, DISC (FOR REAR)

main42610-55010×2iFC100196903-197010

main42610-55011×2iFC100197010-197403

main42610-55020×2iFA100196903-197003

T=9,W/7.50-20 TIRE

main42610-55060×2iDA11#,FA100196903-197403

T=10,W/7.50-20 TIRE

main42610-55070×2iDA11#,FA11#196903-197403

T=11,W/8.25 OR 9.00-20 TIRE

main42610-55090×2iDA11#,DB10#,FA11#,FB100196903-197002

T=10,W/8.25 OR 9.00-20 TIRE

42601SRING, DISC WHEEL SIDE (FOR REAR)

main42613-55010×2iFC100196903-197010

main42613-55020×2iFA100196903-197003

main42613-55030×4iDA11#,DB10#,FA100,11#,FB100196903-200112

DISC T=10&11

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-55020×6iDA11#..LHD..BTR..5FD; DA110..LHD..DMP..5FD199809-200112

9.00-20-14,LUG,SAUDI ARABIA & GULF SPEC

main42605-55030×6iDA11#..LHD..BTR..5FD; DA110..LHD..DMP..5FD199809-200112

9.00-20-14,RIB,SAUDI ARABIA & GULF SPEC

main98071-90206×6iDA110..1SR;DA110..BTR..5FD..2SR197009-197403

9.00-20-12

main98074-75206×6iFA100196903-197403

7.50-20-12,SNOW

main98074-83206×6iFA100196903-197812

8.25-20-12,SNOW

main98074-83207×6iDA11#,FA100,115197404-197501

8.25-20-14,SNOW

main98074-90206×6iDA11#,FA115..LHD197404-197501

9.00-20-12,SNOW

main98074-90207×6iDA11#,FA115..LHD197404-197501

RR,9.00-20-14,SNOW

main98076-70205×6iFC100196903-197010

7.00-20-10

main98076-75206×6iFC100;FA100..LHD197003-197501

7.50-20-12

main98076-83206×6iFA100196903-198207

8.25-20-12,LUG

main98076-83207×6iDA11#,DB105,FA115..GEN196903-200112

8.25-20-14,LUG

main98076-90206×6iDA11#,FA11#196903-197403

9.00-20-12

main98076-90207×6iDA11#,FA115..LHD197404-197501

9.00-20-14

main98079-70205×6iFC100197010-197403

7.00-20-10

main98081-83207×6iDA11#,DB105,FA100,115..GEN197501-200112

8.25-20-14,RIB

main98081-90206×6iDA11#,DB105,FA115..GEN197501-200112

9.00-20-12,RIB

main98081-90207×6iDA11#,DB105,FA100,115197501-200112

9.00-20-14,RIB

main98086-90207×6iFB100196903-197105

9.00-20-14

main98976-90206×6iDA11#..5FD197401-197403

9.00-20-12,LUG H

main98976-90207×6iDA11#..RHD..GEN198003-200112

9.00-20-14,LUG,NATURAL RUBBER

42621CAP, WHEEL

main42621-55010×4iFC100196903-197403

main42621-56010×2iDB10#,FB100196903-197704

4262155010CAP, WHEEL

main42621-55010

4262156010CAP, WHEEL

main42621-56010

10 parts on this diagram · 1 diagram in section
