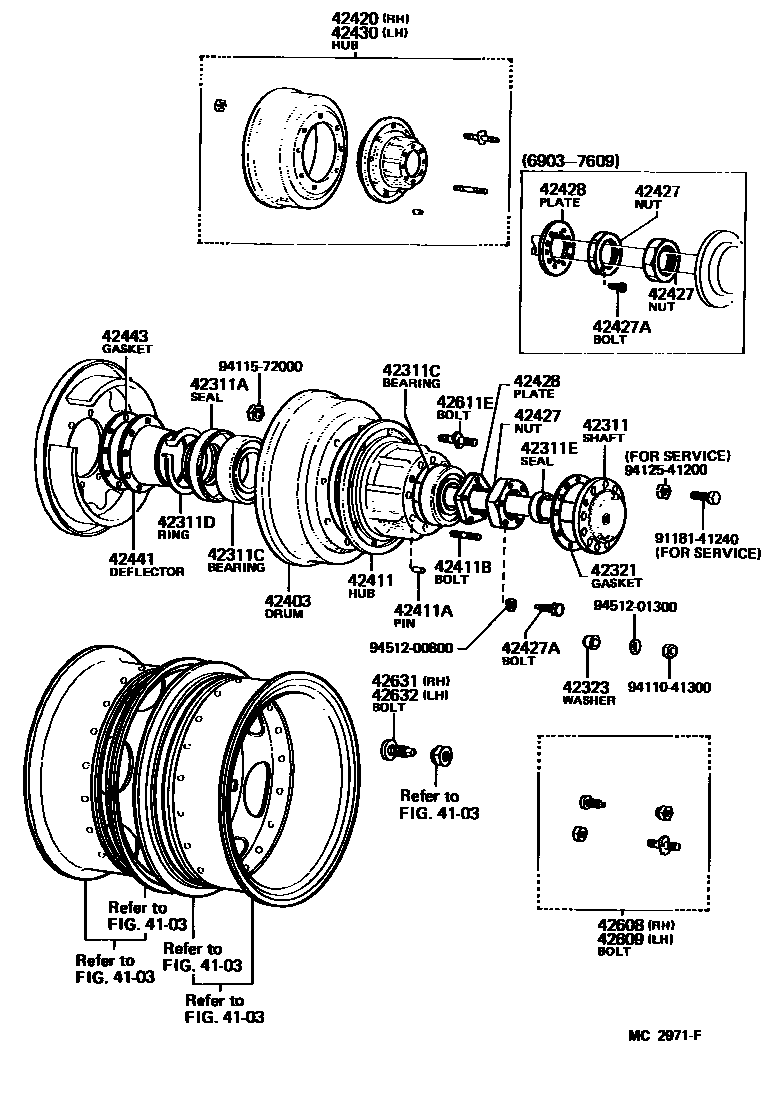

REAR AXLE SHAFT & HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311SHAFT, REAR AXLE

main42311-55010×2iFC100196903-197403

main42311-55020iDA11#,DB10#; FA100,11#,FB100196903-196908

RH

main42311-55021iDB105197404-197703

RH

main42311-55040iDA11#,DB10#196903-196908

LH

main42311-55041iDA11#,DB10#196908-197403

LH

main42311-55051×2iFA100,115..2SR197404-198207

main42312-55011iDA11#197404-200112

LH

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-82002×2iFC100196903-197403

main90310-99011×2iDA11#,DB10#,FA100,11#,FB100196903-197403

main90310-99042×2iDA11#,DB105,FA100,115197404-200112

42311CBEARING(FOR REAR AXLE SHAFT)

main90368-57012×2iFC100196903-197403

OUTER

main90368-66014×2iFC100196903-197403

INNER

main90368-82078×2iDA11#,DB105,FA100,115197404-200112

OUTER

main90368-95077×2iDA11#,DB105,FA100,115197404-200112

INNER

main97600-32215×2iDA11#,DB10#,FA100,11#,FB100196903-197403

OUTER

main97600-32217×2iDA11#,DB10#,FA100,11#,FB100196903-197403

INNER

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-99030×2iFC100196903-197403

main90521-99049×2iDA11#,DB10#,FA100,11#,FB100196903-200112

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main42429-55010×2iFC100196903-197403

main90310-48043×2iFA100,115..1SR197404-198207

main90310-56044×2iDA11#;FA100,115..2SR197404-200112

main90311-48027×2iDA11#,DB10#,FA100,11#,FB100196903-197403

42321GASKET, REAR AXLE SHAFT

main42321-55010×2iFC100196903-197403

T=0.5

main42321-55020×4iDA11#,DB10#,FA100,11#,FB100196903-200112

T=0.5

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-55010×12iFC100196903-197403

main43245-65010×16iDA11#,DB10#,FA100,11#,FB100196903-200112

ID=13.2

42403DRUM SUB-ASSY, REAR BRAKE

main42431-55010×2iDA11#,DB10#,FA100,11#,FB100196903-197003

main42431-55012×2iDA11#,DB10#,FA100,11#,FB100197003-200112

main43512-55040×2iFC100196903-197403

42411HUB, REAR AXLE

main42411-55010×2iFC100196903-197403

main42411-55020×2iDA11#,DB10#,FA100,11#,FB100196903-197003

main42411-55021×2iDA11#,DB10#,FA100,11#,FB100197003-197403

main42411-55022×2iDA11#,DB105,FA100,115197404-200112

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-11079×4iFC100196903-197403

main90250-13066×4iDA11#,DB10#,FA100,11#,FB100196903-200112

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-11007×12iFC100196903-197403

main90116-13034×16iDA11#,DB10#,FA100,11#,FB100196903-200112

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-55022iDA11#,DB10#,FA100,11#,FB100197003-197403

main42420-55023iDA11#,DB105,FA100,115197404-200112

main42420-55902iFC100196903-197403

main42420-55903iDA11#,DB10#,FA100,11#,FB100196903-197003

42427NUT, REAR AXLE BEARING LOCK

main42426-55010×2iFC100196903-197403

INNER

main42426-55021×2iDA11#,DB10#,FA100,11#,FB100196903-197403

INNER

main42426-55022×2iDA11#,DB105,FA100,115197404-197609

INNER

main42427-55010×2iFC100196903-197403

OUTER

main42427-55021×2iDA11#,DB10#,FA100,11#,FB100196903-197403

OUTER

main42427-55022×2iDA11#,DB105,FA100,115197404-197609

OUTER

main42427-55040×2iDA11#,DB105,FA100,115197609-200112

42427ABOLT (FOR REAR AXLE BEARING LOCK NUT SET)

main42419-55010×2iDA11#,DB10#,FA100,11#,FB100196903-197403

main42419-55011×2iDA11#,DB105,FA100,115197404-197609

main90109-08015×2iDA11#,DB105,FA100,115197609-200112

42428PLATE, REAR AXLE LOCK NUT

main42428-55010×2iFC100196903-197403

main42428-55021×2iDA11#,DB10#,FA100,11#,FB100196903-197403

main42428-55022×2iDA11#,DB105,FA100,115197404-197609

main42428-55030×2iDA11#,DB105,FA100,115197609-200112

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-55022iDA11#,DB10#,FA100,11#,FB100197003-197403

main42430-55023iDA11#,DB105,FA100,115197404-200112

main42430-55902iFC100196903-197403

main42430-55903iDA11#,DB10#,FA100,11#,FB100196903-197003

42441DEFLECTOR, BRAKE DRUM OIL

main42441-55010×2iFC100196903-197403

main42441-55020iDA11#,DB10#,FA100,11#,FB100196903-197003

RH

main42442-55010iDA11#,DB10#,FA100,11#,FB100196903-197003

LH

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55010×2iDA11#,DB10#,FA100,11#,FB100196903-197003

T=0.5

main42443-65010×2iFC100196903-197403

T=0.5

42608BOLT SUB-ASSY, REAR AXLE HUB, RH

main42608-55010×8iDA11#,DB10#,FA100,11#,FB100196903-197003

main42608-55040×8iDA11#,DB10#,FA100,11#,FB100197003-197403

main42608-55041×8iDA11#,DB105,FA100,115197404-200112

42609BOLT SUB-ASSY, REAR AXLE HUB, LH

main42609-55010×8iDA11#,DB10#,FA100,11#,FB100196903-197003

main42609-55040×8iDA11#,DB10#,FA100,11#,FB100197003-197403

main42609-55041×8iDA11#,DB105,FA100,115197404-200112

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02005×5iFC100196903-197403

RH

main90942-02006×5iFC100196903-197403

LH

main90942-02007×8iDA11#,DB10#,FA100,11#,FB100196903-197003

RH

main90942-02008×8iDA11#,DB10#,FA100,11#,FB100196903-197003

LH

main90942-02028×8iDA11#,DB10#,FA100,11#,FB100197003-200112

RH

main90942-02029×8iDA11#,DB10#,FA100,11#,FB100197003-200112

LH

42631BOLT, DOUBLE WHEEL STOP, RH

main42631-55020×5iFC100197004-197403

main42631-55030×8iDA11#,DB10#,FA100,11#,FB100197003-197403

main42631-55031×8iDA11#,DB105,FA100,115197404-200112

42632BOLT, DOUBLE WHEEL STOP, LH

main42632-55020×8iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main42632-55030×8iDA11#,DB10#,FA100,11#,FB100197003-197403

main42632-55031×8iDA11#,DB105,FA100,115197404-200112

9118141240

main91181-41240

9411041300

main94110-41300

9411572000

main94115-72000

9412541200

main94125-41200

9451200800

main94512-00800

9451201300

main94512-01300

30 parts on this diagram · 2 diagrams in section
