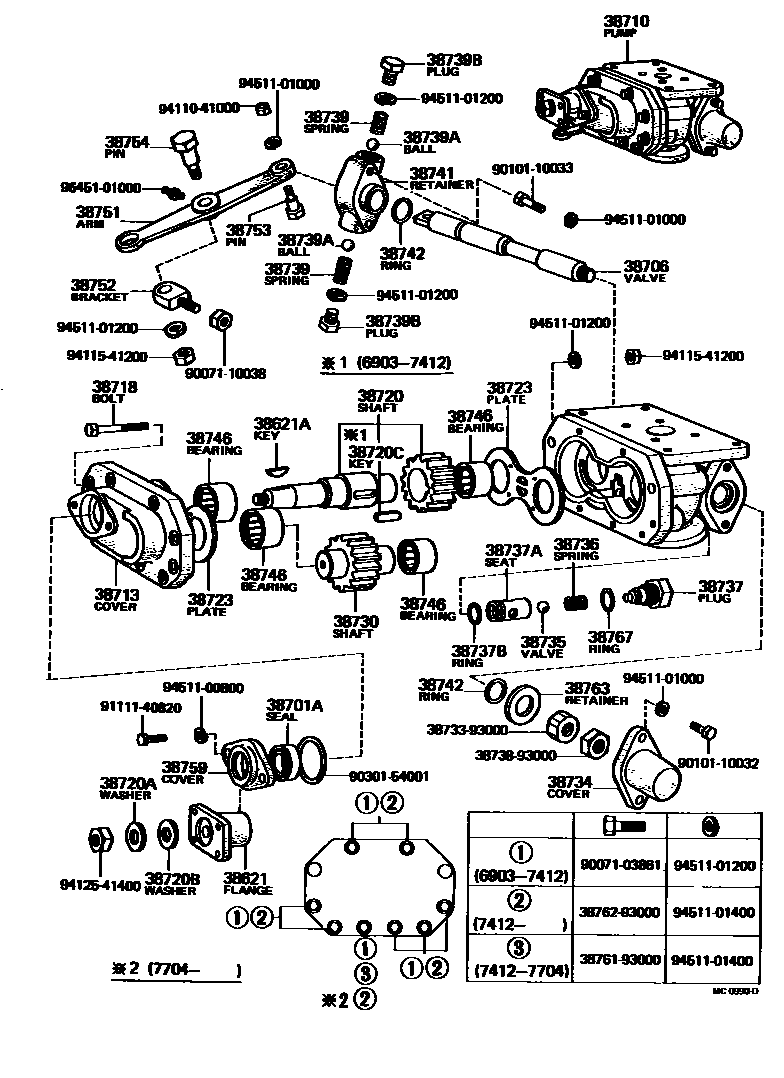

POWER TAKE-OFF OIL PUMP
38621FLANGE, OIL PUMP DRIVE SHAFT
38621AKEY, OIL PUMP DRIVE SHAFT FLANGE
38701ASEAL, OIL (FOR OIL PUMP BODY)
38706VALVE SET, OIL PUMP
38710PUMP ASSY, OIL
38713COVER, OIL PUMP, FRONT
38718BOLT, COVER, LONG
38720SHAFT ASSY, OIL PUMP DRIVE
38720AWASHER, LOCK (FOR OIL PUMP DRIVE SHAFT)
38720BWASHER, OIL PUMP DRIVE SHAFT
38720CKEY (FOR OIL PUMP DRIVE GEAR)
38723PLATE, OIL PUMP GEAR SIDE
38730SHAFT ASSY, OIL PUMP COUNTER
38734COVER, PLUNGER
38735VALVE, CHECK (FOR OIL PUMP)
38736SPRING, CHECK VALVE
38737PLUG, CHECK VALVE
38737ASEAT, CHECK VALVE
38737BRING, O (FOR CHECK VALVE SEAT)
38739SPRING, PLUNGER NEUTRAL INDICATING BALL
38739ABALL, PLUNGER NEUTRAL INDICATING
38739BPLUG, CHECK BALL SPRING
38741RETAINER, BALL
38742RING, O (FOR OIL CHANGE SPOOL)
38746BEARING, OIL PUMP SHAFT
38751ARM, CONTROL
38752BRACKET, CONTROL ARM
ISO
38753PIN, CONTROL ARM
38754PIN, CONTROL ARM BRACKET
ISO
38759COVER, SEAL (FOR OIL PUMP BODY)
38763RETAINER, O RING(FOR OIL CHANGE SPOOL)
T=2.0,OD=32
38767RING, O (FOR CHECK VALVE SPRING)
3873393000RETAINER, PLUNGER
main38733-93000
3873893000
main38738-93000
3876193000RING, O (FOR OIL PUMP INNER BUSH)
main38761-93000
3876293000RING, O (FOR OIL PUMP INNER BUSH)
main38762-93000
9007103861
main90071-03861
9007110038
main90071-10038
9010110032
main90101-10032
9010110033
main90101-10033
9030154001
main90301-54001
9111140820
main91111-40820
9411041000
main94110-41000
9411541200
main94115-41200
9412541400
main94125-41400
9451100800
main94511-00800
9451101000
main94511-01000
9451101200
main94511-01200
9451101400
main94511-01400
9645101000
main96451-01000
50 parts on this diagram · 1 diagram in section
