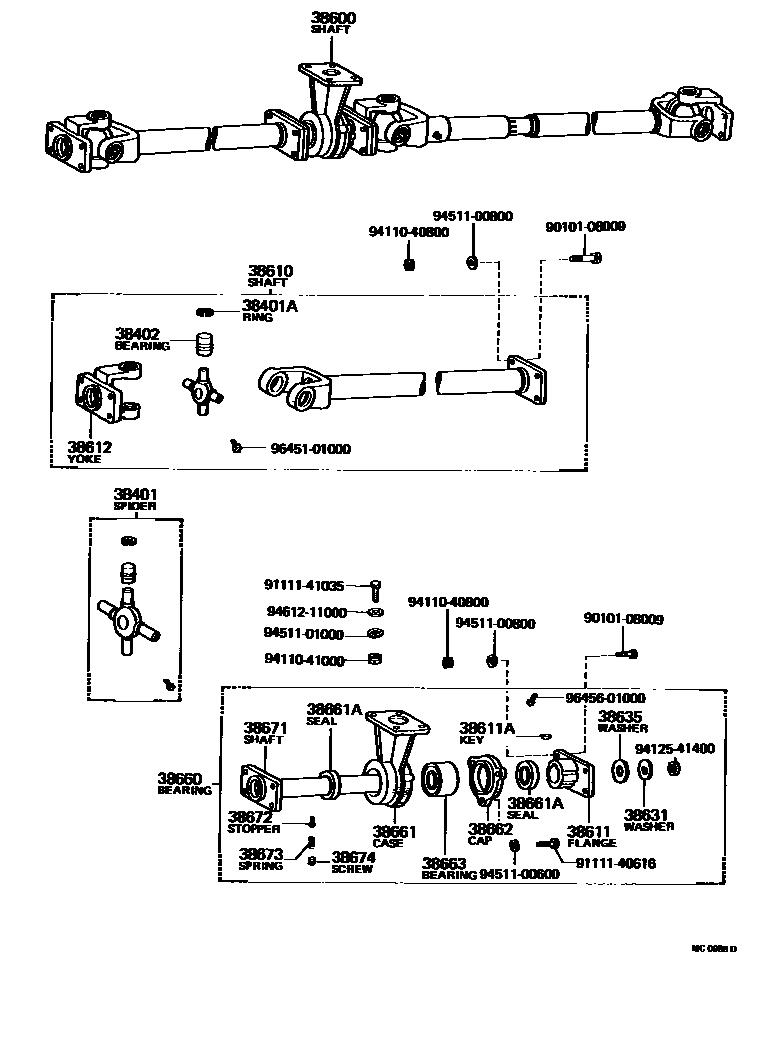

DRIVE SHAFT
38401SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)
38401ARING, UNIVERSAL JOINT NEEDLE
38402BEARING, UNIVERSAL JOINT SPIDER
38600SHAFT ASSY, OIL PUMP DRIVE
38610SHAFT ASSY, PUMP DRIVE, FRONT
38611FLANGE, PUMP DRIVE SHAFT
38611AKEY, WOODRUFF (FOR PUMP DRIVE SHAFT FLANGE)
38612YOKE, UNIVERSAL JOINT FLANGE
38631WASHER, LOCK (FOR CENTER BEARING SHAFT)
38635WASHER, PLATE (FOR CENTER BEARING SHAFT)
38660BEARING ASSY, CENTER
38661CASE, CENTER BEARING
38661ASEAL, OIL, CENTER BEARING CASE
38662CAP, CENTER BEARING
38663BEARING, RADIAL BALL (FOR CENTER BEARING)
38671SHAFT, CENTER BEARING (FOR PUMP DRIVE SHAFT)
38672STOPPER, RADIAL BALL BEARING
38673SPRING, RADIAL BALL BEARING STOPPER
38674SCREW, STOPPER SET
9010108009
main90101-08009
9111140616
main91111-40616
9111141035
main91111-41035
9411040800
main94110-40800
9411041000
main94110-41000
9412541400
main94125-41400
9451100600
main94511-00600
9451100800
main94511-00800
9451101000
main94511-01000
9461211000
main94612-11000
9645101000
main96451-01000
9645601000
main96456-01000
31 parts on this diagram · 2 diagrams in section
