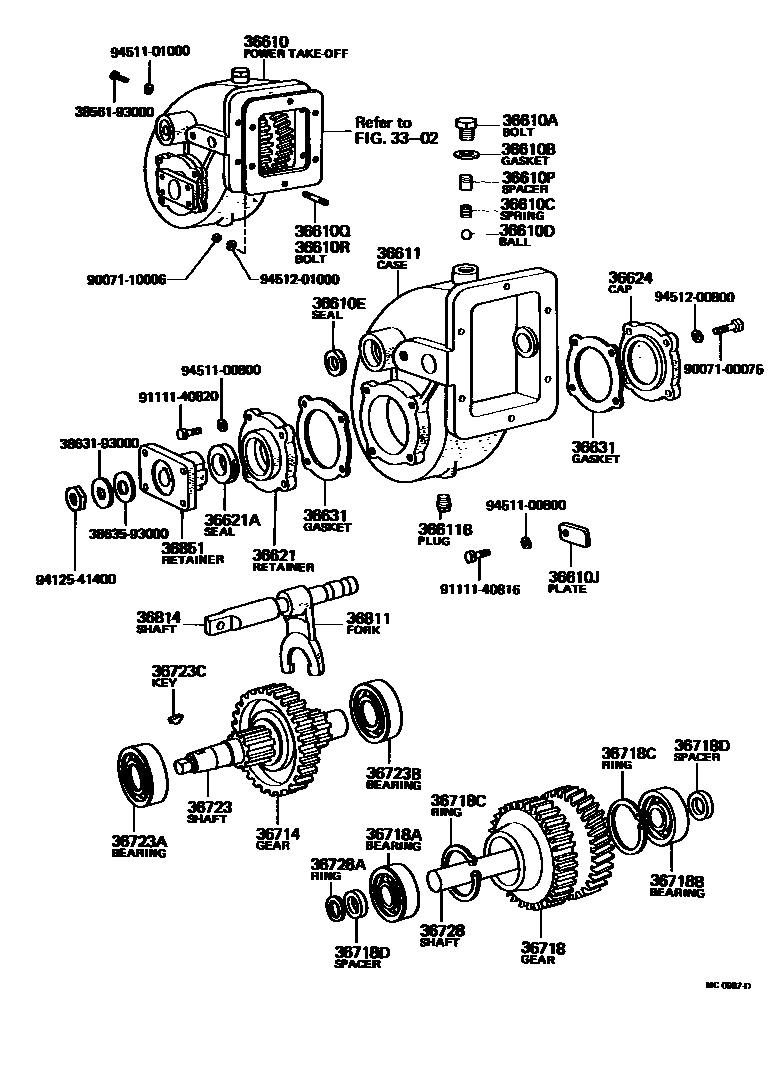

POWER TAKE-OFF CASE & GEAR
3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)
36610POWER TAKE-OFF ASSY
36610ABOLT, LOCK BALL (FOR POWER TAKE-OFF)
36610BGASKET, SEAT (FOR POWER TAKE-OFF)
T=0.5
36610CSPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
36610DBALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
36610ESEAL, OIL (FOR POWER TAKE-OFF)
36610JPLATE OR PIN, LOCK (FOR POWER TAKE-OFF)
36610PSPACER, LOCK BALL (FOR POWER TAKE-OFF)
36610QBOLT, STUD, NO.1 (FOR POWER TAKE-OFF CASE)
36610RBOLT, STUD, NO.2 (FOR POWER TAKE-OFF CASE)
36611CASE, POWER TAKE-OFF
36611BPLUG, STRAIGHT SCREW (FOR POWER TAKE-OFF CASE)
36621RETAINER, POWER TAKE-OFF BEARING
36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
36624CAP, POWER TAKE-OFF BEARING
36631GASKET, POWER TAKE-OFF BEARING RETAINER
36714GEAR, POWER TAKE-OFF OUTPUT
N=26
N=19
36718GEAR, POWER TAKE-OFF IDLER
N=22,27
N=21,22
N=22.22
36718ABEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT)
36718BBEARING(FOR POWER TAKE-OFF IDLER GEAR REAR)
36718CRING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
36718DSPACER(FOR POWER TAKE-OFF IDLER GEAR)
36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723ABEARING (FOR OUTPUT SHAFT FRONT)
36723BBEARING (FOR OUTPUT SHAFT REAR)
36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
36728SHAFT, POWER TAKE-OFF IDLER
36728ARING, O (FOR POWER TAKE-OFF IDLER SHAFT)
36811FORK, POWR TAKE-OFF SHIFT, NO.1
36814SHAFT, POWR TAKE-OFF FORK, NO.1
36851RETAINER, POWER TAKE-OFF JOINT
3856193000
main38561-93000
3863193000WASHER, LOCK (FOR CENTER BEARING SHAFT)
main38631-93000
3863593000WASHER, PLATE (FOR CENTER BEARING SHAFT)
main38635-93000
9007100075
main90071-00075
9007110006
main90071-10006
9111140816
main91111-40816
9111140820
main91111-40820
9412541400
main94125-41400
9451100800
main94511-00800
9451101000
main94511-01000
9451200800
main94512-00800
9451201000
main94512-01000
44 parts on this diagram · 1 diagram in section
