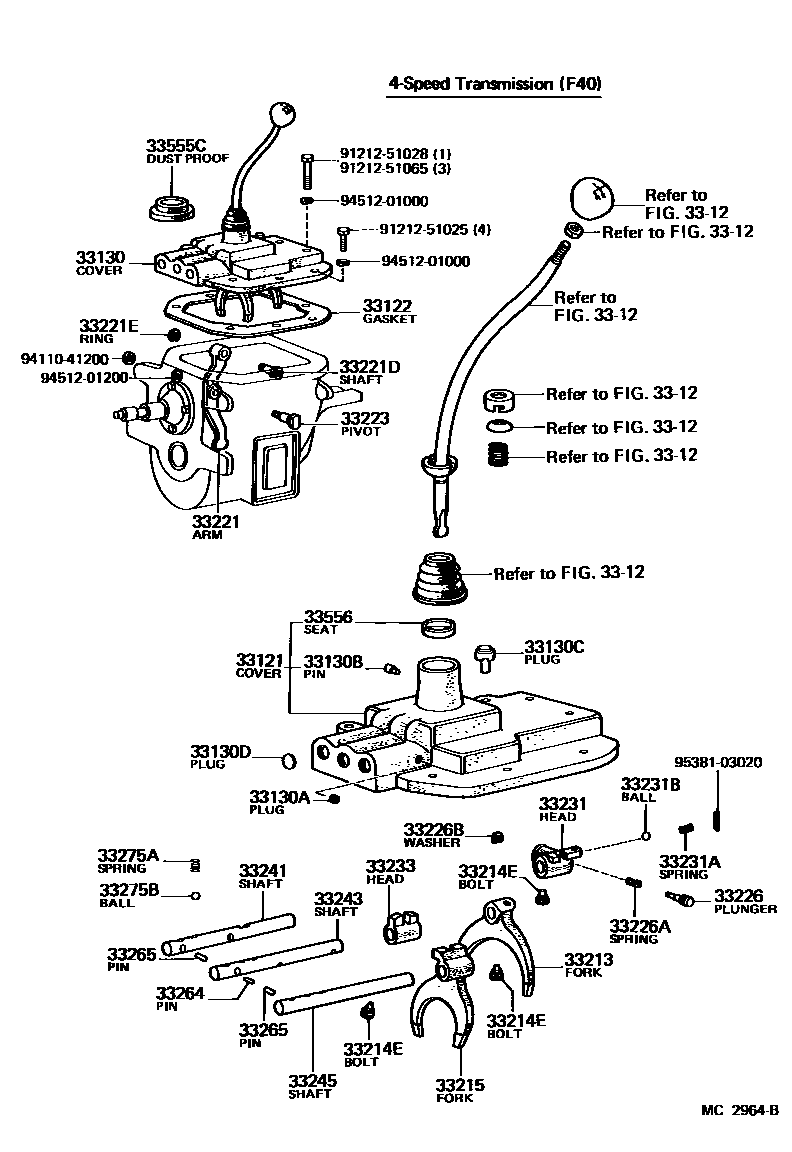

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

33121COVER, MANUAL TRANSMISSION CASE

main33102-55020iDA11#,FA100,11#,FB100..5F196903-197803

main33102-55021iDA11#,FA100,115..5F197803-200112

main33102-55030iFA100,11#,FC100..4F196903-198207

main33102-57010iDB10#196903-197703

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-55020iFA100,11#,FC100..4F196903-198207

T=0.5

main33122-55030iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33130COVER ASSY, TRANSMISSION CASE

main33130-55200iDA110,115..RHD..5FO..2SR196903-197403

main33130-55240iDA11#..LHD..5FO..2SR196903-197403

main33130-96518iDB10#..RHD196903-197212

main33130-96519iDB10#..LHD196903-197212

main33130-96522iDB10#..RHD197212-197403

main33130-96523iDB10#..LHD197212-197403

33130APLUG, TRANSMISSION CASE COVER

main90344-52001iFA100,11#,FC100..4F196903-198207

33130BPIN, DOWEL, GEAR SHIFT LEVER CAP

main33127-55010×2iFA100,115..4F198207-198207

main90241-07005×2iFA100,11#,FC100..4F196903-198207

33130CPLUG, BREATHER, TRANSMISSION CASE COVER

main90930-03001iDB10#196903-197703

main90930-03004iFA100,11#,FC100..4F196903-198207

33130DPLUG, EXPANSION, TRANSMISSION CASE COVER

main90331-21002×3iFA100,11#,FC100..4F196903-198207

main96412-02200×4iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33213FORK, 1ST & 2ND SHIFT

main33213-55010iFA100,11#,FC100..4F196903-198207

33214FORK, 2ND & 3RD SHIFT

main33214-55010iDA11#,DB105,FA100,115..5F197404-197803

main33214-55011iDA11#,FA100,115..5F197803-198002

main33214-55020iDA11#,DB10#,FA100,11#,FB100..5F196903-197403

main33214-55040iDA11#,FA100,115..5F198002-200112

33214EBOLT(FOR GEAR SHIFT FORK LOCK)

main33218-35010×5iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

*10-1.25PX15-6

main33218-55010×4iFA100,11#,FC100..4F196903-198207

main33218-55020iDA11#,DB10#,FA100,11#,FB100..5F196903-197803

*10-1.25PX19-7

33215FORK, 3RD & 4TH SHIFT

main33215-55010iFA100,11#,FC100..4F196903-198207

33221ARM, REVERSE SHIFT

main33221-55020iFA100,11#,FC100..4F196903-198207

33221DSHAFT, REVERSE SHIFT ARM END

main33224-55010iFA100,11#,FC100..4F196903-198207

33221ERING(FOR REVERSE SHIFT ARM END SHAFT)

main90520-11003iFA100,11#,FC100..4F196903-198207

33223PIVOT, SHIFT ARM

main33223-55010iFA100,11#,FC100..4F196903-197501

main33223-55011iFA100,115..4F197501-198207

main33223-55020iDA11#,DB10#,FA100,11#,FB100..5F196903-197501

main33223-55021iDA11#,DB105,FA100,115..5F197501-198002

main33223-55030iDA11#,FA100,115..5F198002-200112

33226PLUNGER, REVERSE SHIFT RETURN

main33226-55010iFA100,11#,FC100..4F196903-198207

main33226-55020iDA11#,DB10#,FA100,11#,FB100..5F196903-197803

main33226-55021iDA11#,FA100,115..5F197803-200112

33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)

main90501-18045iFA100,11#,FC100..4F196903-198207

main90501-23068iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33226BWASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)

main90213-06001iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

33231HEAD, REVERSE SHIFT

main33231-55020iFA100,11#,FC100..4F196903-198207

33231ASPRING, REVERSE SHIFT RESTRICT

main90501-14035iDA11#,FA100,11#,FB100,FC100196903-200112

33231BBALL, REVERSE SHIFT RESTRICT

main90360-06004iDA11#,FA100,11#,FB100,FC100196903-200112

33233HEAD, 1ST & 2ND SPEED SHIFT

main33233-55020iFA100,11#,FC100..4F196903-198207

33241SHAFT, REVERSE SHIFT FORK

main33248-55020iFA100,11#,FC100..4F196903-198207

33243SHAFT, 1ST & 2ND SHIFT FORK

main33243-55010iFA100,11#,FC100..4F196903-198207

33245SHAFT, 3RD & 4TH SHIFT FORK

main33245-55010iFA100,11#,FC100..4F196903-198207

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05034iFA100,11#,FC100..4F196903-198207

main90250-05093iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33265PIN, SHIFT INTERLOCK, NO.2

main90361-10011×2iFA100,11#,FC100..4F196903-198207

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-57010iDB10#196903-197703

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-16040×3iDA11#,DB10#,FA100,11#,FB100,FC100196903-198009

main90501-18032×3iDA11#,FA100,115198009-200112

33275BBALL, SHAFT DETENT

main90360-10003×7iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

33555CDUST PROOF, SHIFT LEVER CAP BOOT

main58713-55030iFB100196903-197105

main58713-55040iFA100,11#,FC100..4F196903-198207

main58713-55050iDA11#,FA100,11#..5F196903-200112

33556SEAT, TRANSMISSION SHIFT LEVER BALL

main33556-55020iFA100,11#,FC100..4F196903-198207

9121251025

main91212-51025

9121251028

main91212-51028

9121251065

main91212-51065

9411041200

main94110-41200

9451201000

main94512-01000

9451201200

main94512-01200

9538103020

main95381-03020

40 parts on this diagram · 6 diagrams in section
