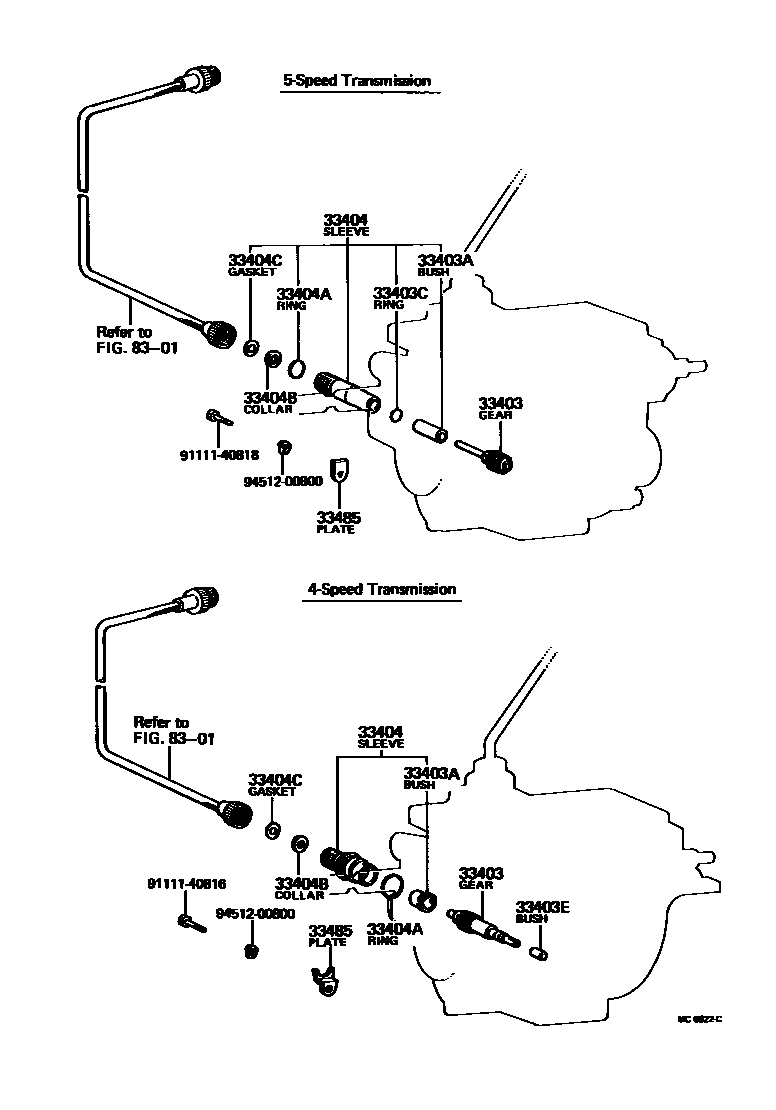

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-55020iDB105;FA100..2SR197501-197703

N=18

main33403-55040iDA11#..2SR196903-200112

N=15

main33403-55050iFA100,11#..5FD..1SR197003-197403

N=21

main33403-55070iFA100..5FD..1SR197501-198207

N=22

main33403-55081iFA11#..5FD..1SR196903-198207

N=20

main33403-55091iDA11#..1SR197404-200112

N=17

main33403-55100iDA11#..2SR196903-197403

N=14

main33482-55120iFA11#..4F196903-197403

N=20

main33482-55130iFA100,11#,FC100..4F196903-198207

N=21

main33482-55140iFA100..4F197501-198207

N=22

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09008iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

main90999-70019iFA100,11#,FC100..4F196903-198207

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33403EBUSH, SPEEDOMETER DRIVEN GEAR SHAFT (MTM)

main90999-70020iFA100,11#,FC100..4F196903-198207

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-29015iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

main33404-55010iFA100,11#,FC100..4F196903-198207

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

main90301-20003iFA100,11#,FC100..4F196903-198207

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

main33485-55010iFA100,11#,FC100..4F196903-198207

8301METER

→ Go to FIG 83-01

9111140816

main91111-40816

9111140818

main91111-40818

9451200800

main94512-00800

13 parts on this diagram · 1 diagram in section
