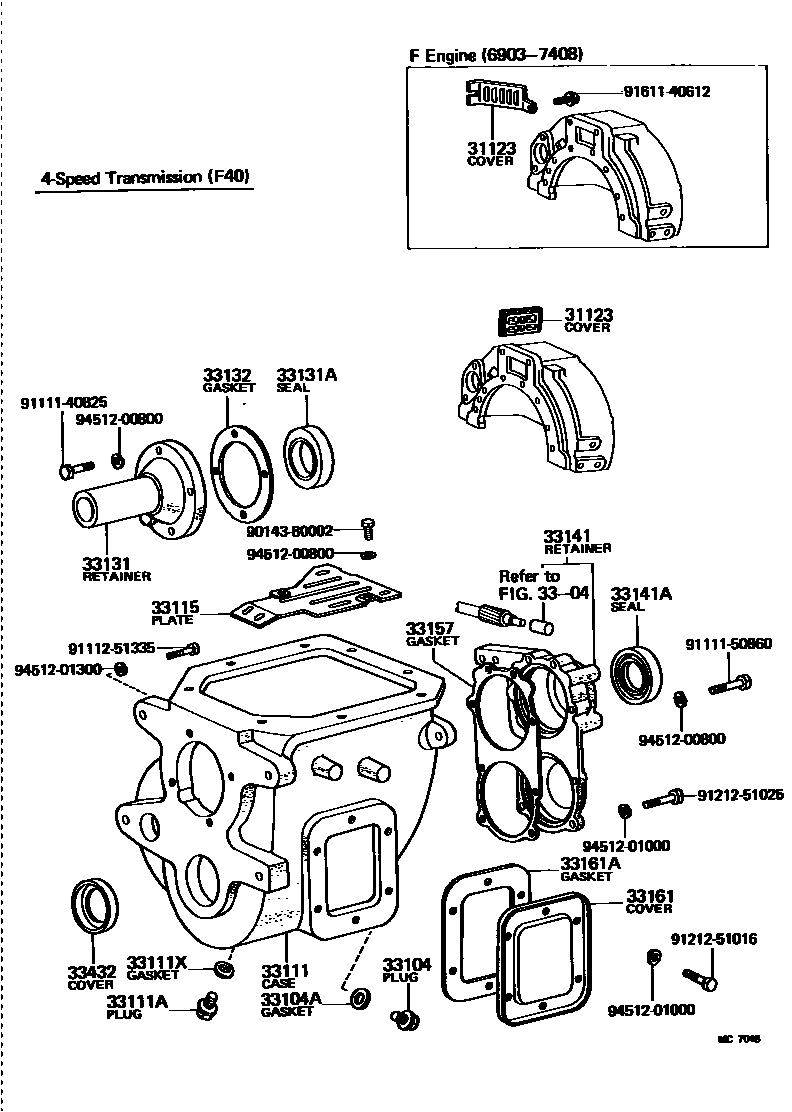

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31123COVER, CLUTCH HOUSING, NO.2

main31121-60021iFA100,115..4F197408-198207

main31123-55010iFA100,11#,FC100..4F196903-197408

main31123-55030iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

33104PLUG SUB-ASSY, DRAIN(MTM)

main33104-30010iDA11#,DB10#,FA100,11#,FB100..5F196903-196908

main33104-30011iDA11#,DB10#,FA100,11#,FB100..5F196908-197403

main90341-18002iFA100,11#,FC100..4F196903-198207

main90341-18057iDA11#,DB105,FA100,115..5F197404-200112

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iDA11#,FA100,115197607-198108

ID=18,OD=24.2

main90430-18007iDA11#,FA100,115198108-198408

ID=18,OD=24

main90430-18008iDA11#198408-200112

main90430-18012iFA100,11#,FC100..4F196903-197607

ID=18.5,OD=26

33111CASE, MANUAL TRANSMISSION

main33111-55011iFA100,11#,FC100..4F196903-198207

main33111-55030iDA11#,DB10#,FA100,11#,FB100..5F196903-197003

main33111-55031iDA11#,DB10#,FA100,11#,FB100..5F197003-200112

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iDA11#,DB10#,FA100,11#,FB100,FC100196903-198006

main90341-18006iDA11#198006-200112

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iDA11#,FA100,115197607-198108

ID=18,OD=24.2

main90430-18007iDA11#,FA100,115198108-198408

ID=18,OD=24

main90430-18008iDA11#198408-200112

main90430-18012iDA11#,DB10#,FA100,11#,FB100,FC100196903-197607

ID=18.5,OD=26

33115PLATE, TRANSMISSION OIL FILTER

main33115-55010iFA100,11#,FC100..4F196903-198207

main33115-55020iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33131RETAINER, BEARING, FRONT(MTM)

main33131-55020iFA100,11#,FC100..4F196903-197306

main33131-55021iFA100,11#,FC100..4F197306-198207

main33131-55030iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-28003iFA100,11#,FC100..4F197306-197506

main90311-28004iFA100,115..4F197506-198207

main90311-38063iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-55010iFA100,11#,FC100..4F196903-198207

T=0.5

main33132-55020iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

T=0.5

33141RETAINER, TRANSMISSION BEARING, REAR

main33107-55010iDA11#,DB10#,FA100,11#,FB100..5F196903-197002

main33107-55011iDA11#,DB10#,FA100,11#,FB100..5F197002-197704

main33107-55020iFA100,11#,FC100..RHD..4F196903-197002

main33107-55021iFA100,11#,FC100..RHD..4F197002-197302

main33107-55022iFA100,11#,FC100..RHD..4F197302-198207

main33107-55030iFA100,11#,FC100..LHD..4F196903-197002

main33107-55031iFA100,11#,FC100..LHD..4F197002-197302

main33107-55032iFA100,11#,FC100..LHD..4F197302-198207

main33141-55021iDA11#,FA100,115..5F197704-200112

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-55008iFA100,11#,FC100..4F196903-197302

OD=78

main90311-55137iFA100,11#,FC100..4F197302-198207

OD=72

main90311-60017iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

33157GASKET, TRANSMISSION CASE, NO.2

main33142-55020iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

T=0.5

main33142-59020iFA100,11#,FC100..4F196903-197002

T=0.5

main33142-59021iFA100,11#,FC100..4F197002-198207

T=0.5

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-55010iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

33161AGASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM)

main33162-55010iDA110,FA100,110..BTR;DA115,116,DB10#,FA115,FB100,FC100196903-200112

T=0.5

main38541-93000iDA110,FA100,110..DMP196903-200112

T=1.0

main38541-93001iDA110,FA100,110..DMP196903-200112

T=0.5

33432COVER, COUNTER GEAR FRONT BEARING

main33432-55020iFA100,11#,FC100..4F196903-198207

main33432-55030iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

9014380002

main90143-80002

9111140825

main91111-40825

9111150860

main91111-50860

9111251335

main91112-51335

9121251016

main91212-51016

9121251025

main91212-51025

9161140612

main91611-40612

9451200800

main94512-00800

9451201000

main94512-01000

9451201300

main94512-01300

27 parts on this diagram · 2 diagrams in section
