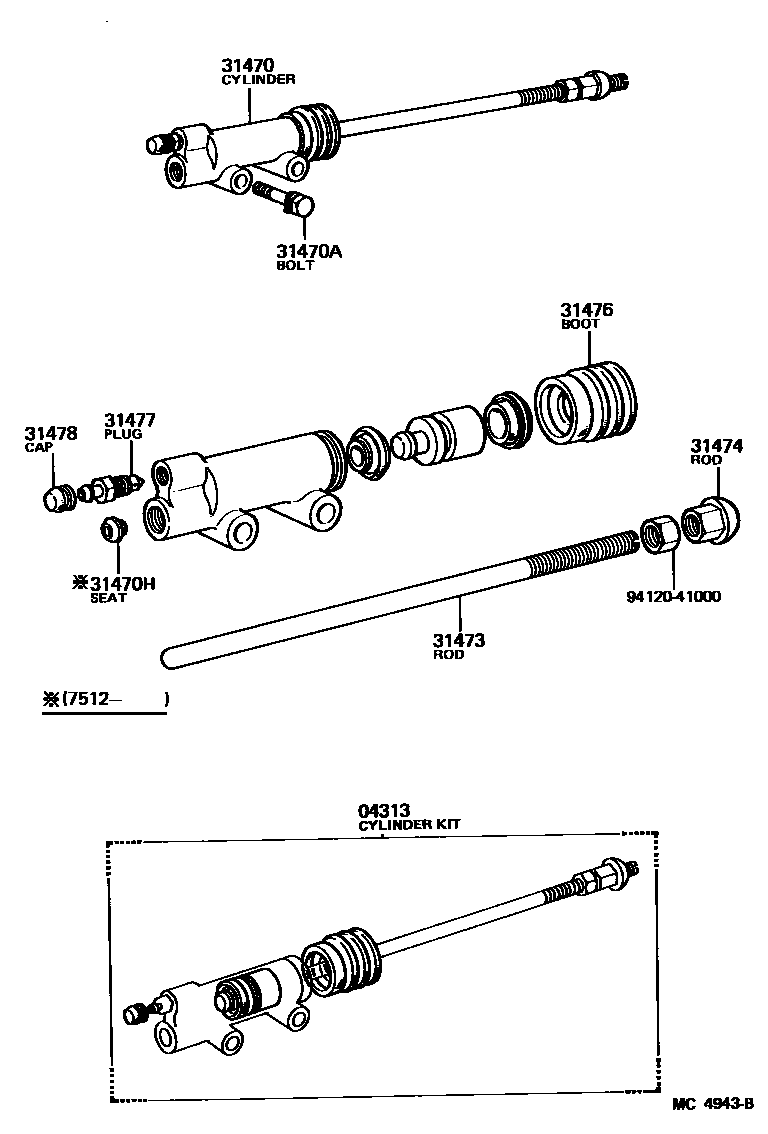

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-55010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197009

main04313-55012iDA11#,DB10#,FA100,11#,FB100,FC100197009-197704

main04313-55020iDA11#,FA100,115197704-200112

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-55010iDA11#,DB10#196903-197009

main31470-55011iDA11#,DB10#197009-197512

main31470-55020iFA100,11#,FB100,FC100196903-197009

main31470-55021iFA100,11#,FB100,FC100197009-197512

main31470-55022iFA100,115197512-197704

main31470-55030iDA11#,DB105197512-197704

main31470-55041iDA11#197704-200112

main31470-55060iFA100,115197704-198207

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91111-41063iFA100,11#,FB100,FC100196903-197201

main91611-41055iDA11#,DB105197404-198403

main91611-41060iFA100,11#,FC100197201-198207

main91611-61055iDA11#198403-200112

31470HSEAT, UNION(FOR CLUTCH RELEASE CYLINDER)

main96390-71400iDA11#,DB105,FA100,115197512-200112

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-55010iDA11#,DB10#196903-197704

main31473-55020iFA100,11#,FB100,FC100196903-198207

main31473-55030iDA11#197704-200112

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31475-55010iDA11#197704-200112

main31475-57010iFA100,115196903-198207

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-60010iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iDA11#,DB105,FA100,115197507-200112

OD=10,P=1.00

main47547-35010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197011

main47547-35011iDA11#,DB10#,FA100,11#,FB100,FC100197011-197507

OD=10,P=1.25

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

9412041000

main94120-41000

10 parts on this diagram · 1 diagram in section
