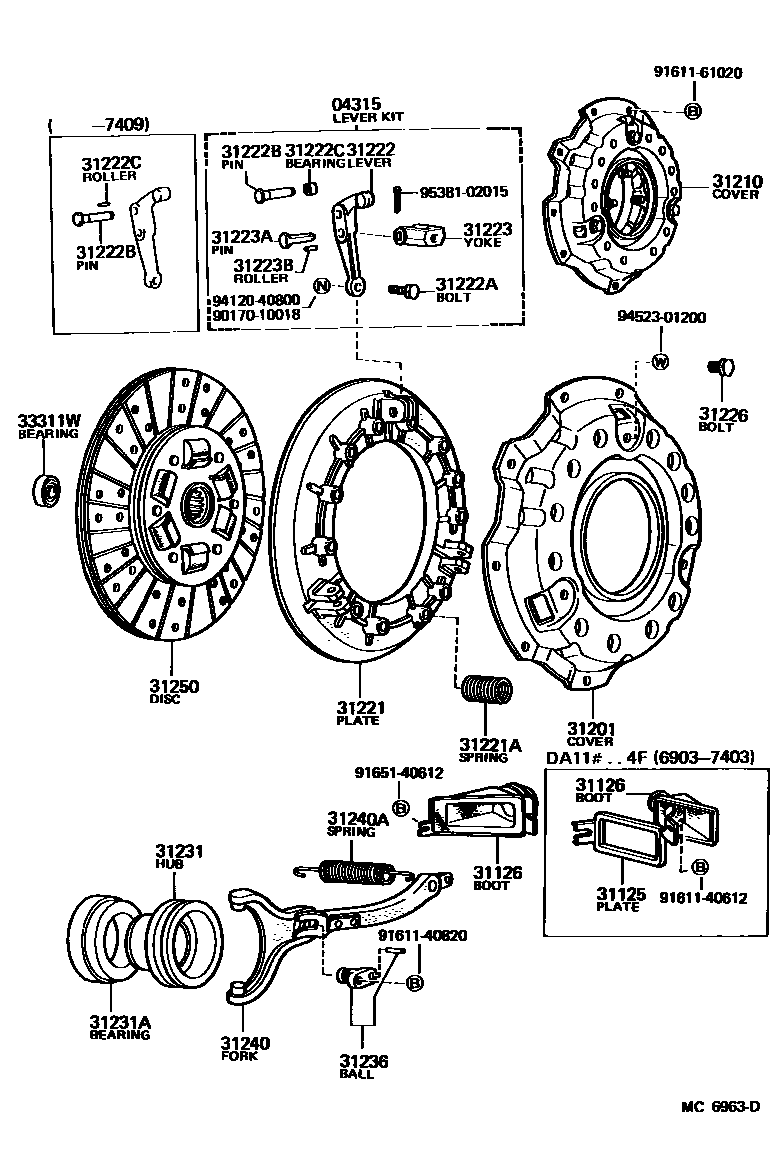

CLUTCH & RELEASE FORK

0001 1 0002 1

04315LEVER KIT, CLUTCH PRESSURE

main04315-55010iDA11#,DB105197409-198205

main04315-55011iDA11#198205-200112

main04315-55020iFA100,11#,FB100,FC100196903-198207

31125PLATE, RELEASE FORK BOOT

main31125-60020iFA100,11#,FC100..4F196903-197408

31126BOOT, CLUTCH RELEASE FORK

main31103-55030iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

main31126-55020iFA100,11#,FC100..4F196903-197408

main31126-55030iFA100,115..4F197408-198207

31201COVER SUB-ASSY, CLUTCH

main31211-55011iFA100,11#,FB100,FC100196903-198207

main31211-55021iDA115..LHD197204-197403

W/MECHANICAL GOVERNOR

main31211-56010iDA11#,DB10#196903-200112

31210COVER ASSY, CLUTCH

main31210-55060iDA115..LHD197204-197403

W/MECHANICAL GOVERNOR

main31210-55070iFA100,11#,FB100,FC100196903-198207

main31210-55080iDA11#197704-198205

main31210-55081iDA11#198205-200112

main31210-56010iDA11#,DB10#196903-197704

31221PLATE, CLUTCH PRESSURE

main31221-55010iFA100,11#,FB100,FC100196903-198207

main31221-55020iDA11#,DB10#196903-197409

main31221-55021iDA11#,DB105197409-197704

main31221-55030iDA11#197704-198205

main31221-55031iDA11#198205-200112

main31221-56010iDA115..LHD197204-197403

W/MECHANICAL GOVERNOR

31221ASPRING, COMPRESSION(FOR CLUTCH)

main90501-50002×12iDA11#197704-200112

main90501-50003×9iDA11#,DB105,FA100,115197611-197704

main90501-50047×9iDA11#,DB10#,FA100,11#,FB100,FC100196903-197611

main90501-55057×9iDA115..LHD197204-197403

W/MECHANICAL GOVERNOR

31222LEVER, CLUTCH PRESSURE

main31222-55020×3iFA100,11#,FB100,FC100196903-198207

main31222-55030×3iDA11#,DB10#196903-197409

main31222-55031×3iDA11#,DB105197409-198205

main31222-55032×3iDA11#198205-200112

31222ABOLT, CLUTCH PRESSURE LEVER ADJUST

main90106-08005×3iDA11#,DB10#,FA100,11#,FB100,FC100196903-198205

main90106-10004×3iDA11#198205-200112

31222BPIN, W/HOLE(FOR CLUTCH PRESSURE LEVER)

main90240-08011×3iFA100,11#,FB100,FC100196903-198207

main90240-09160×3iDA11#,DB105197409-200112

main90245-09002×3iDA11#,DB10#196903-197409

31222CROLLER OR BEARING, CLUTCH PRESSURE PLATE PIN

main90361-02006×51iDA11#,DB10#196903-197409

main90361-02019×45iFA100,11#,FB100,FC100196903-197507

main90361-02057×45iFA100,115197507-198207

main90364-09073×3iDA11#,DB105197409-200112

31223YOKE, CLUTCH RELEASE LEVER

main31223-55030×3iDA11#,DB10#196903-196908

main31223-55031×3iDA11#,DB10#196908-198205

main31223-55032×3iDA11#198205-200112

main31223-55040×3iFA100,11#,FB100,FC100196903-198207

31223APIN(FOR CLUTCH PRESSURE LEVER)

main90249-06003×3iFA100,11#,FB100,FC100196903-198207

main90249-08004×3iDA11#,DB10#196903-198205

main90249-08105×3iDA11#198205-200112

31223BROLLER, CLUTCH PRESSURE LEVER

main90361-06005×3iDA11#,DB10#196903-200112

main90361-06020×3iFA100,11#,FB100,FC100196903-198207

31226BOLT, CLUTCH PRESSURE PLATE

main90101-10077×3iFA100,11#,FB100,FC100196903-198207

main90101-12092×3iDA11#,DB10#196903-197403

main90101-12286×3iDA11#,DB105197404-200112

31231HUB, CLUTCH RELEASE BEARING

main31231-55012iFA100,11#,FC100..4F196903-197306

main31231-55013iFA100,11#,FC100..4F197306-198207

main31231-55023iDA11#,DB10#,FA100,11#,FB100..5F196903-200112

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-52018iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

31236BALL, RELEASE FORK

main31236-55902iDA11#,DB10#,FA100,11#,FB100,FC100196903-198207

31240FORK ASSY, CLUTCH RELEASE

main31204-55041iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18101iDA11#,DB10#,FA100,11#,FB100,FC100196903-197009

main90506-18189iDA11#,DB10#,FA100,11#,FB100,FC100197009-200112

31250DISC ASSY, CLUTCH

main31250-55031iFA100,11#,FB100,FC100196903-197304

main31250-55032iFA100,11#,FC100197304-197610

main31250-55033iFA100,115197610-197704

main31250-55044iDA11#,DB10#196903-197304

main31250-55045iDA11#,DB10#197304-197610

main31250-55046iDA11#,DB105197610-197704

main31250-55052iDA115..LHD197204-197304

W/MECHANICAL GOVERNOR

main31250-55053iDA115..LHD197304-197403

W/MECHANICAL GOVERNOR

main31250-55090iDA11#197704-198110

main31250-55100iDA11#198110-199210

main31250-55101iDA11#199210-200112

main31250-60020iFA100,115197812-198207

main31250-65010iFA100,115197704-197812

33311WBEARING (FOR INPUT SHAFT)

main90363-15004iDA11#,FA100,115197908-200112

main97110-06202iDA11#,DB10#,FA100,11#,FB100,FC100196903-197208

6202ZC3

main97120-06202iDA11#,DB10#197208-197903

6202ZZ

9017010018

main90170-10018

9161140612

main91611-40612

9161140820

main91611-40820

9161161020

main91611-61020

9165140612

main91651-40612

9412040800

main94120-40800

9452301200

main94523-01200

9538102015

main95381-02015

30 parts on this diagram · 2 diagrams in section
